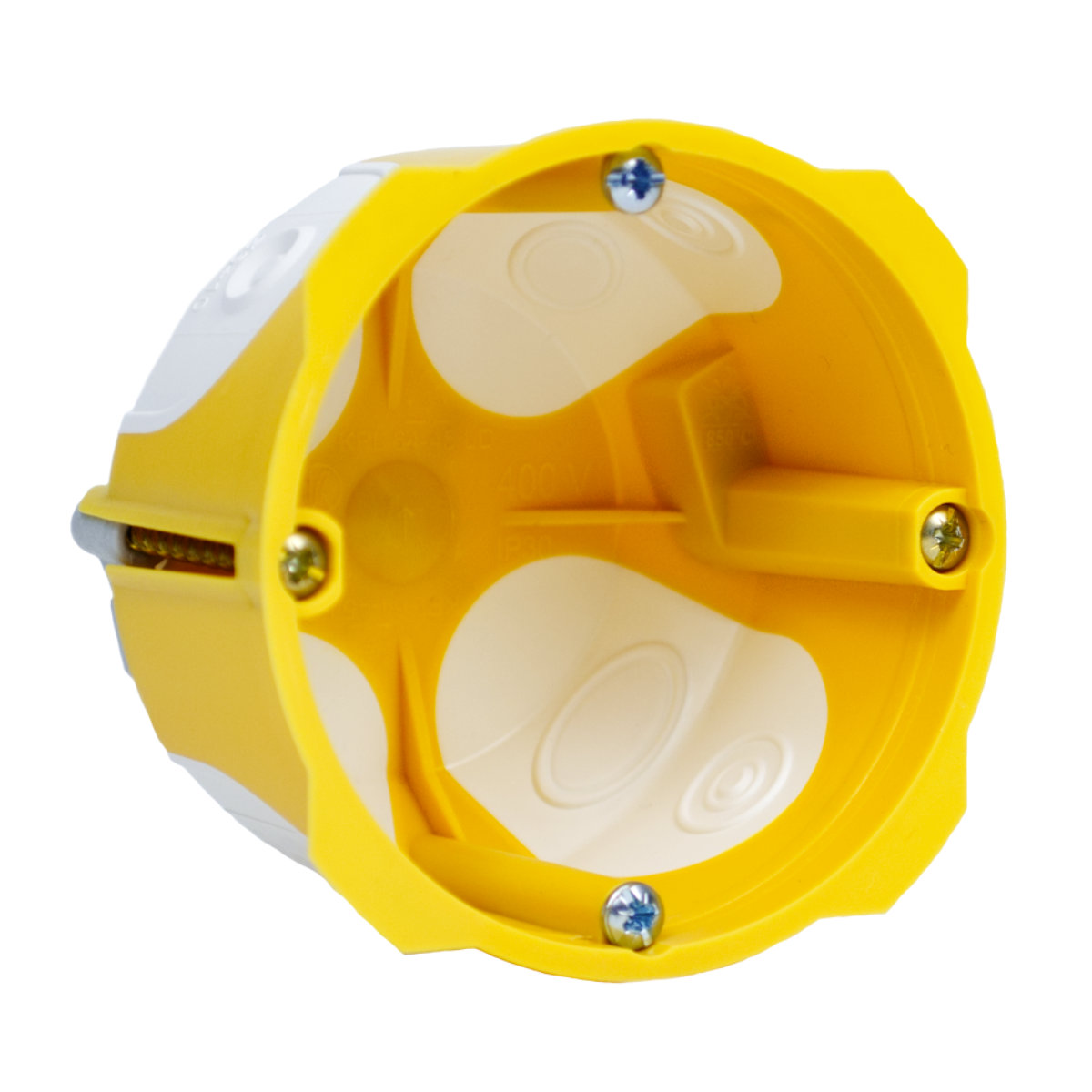

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KPL6445LD_EN
| EAN kod | 8595568930835 |
| Tarifni broj | 39259080 |
| Težina | 0,03 kg/pcs |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Zvučna izolacija | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |

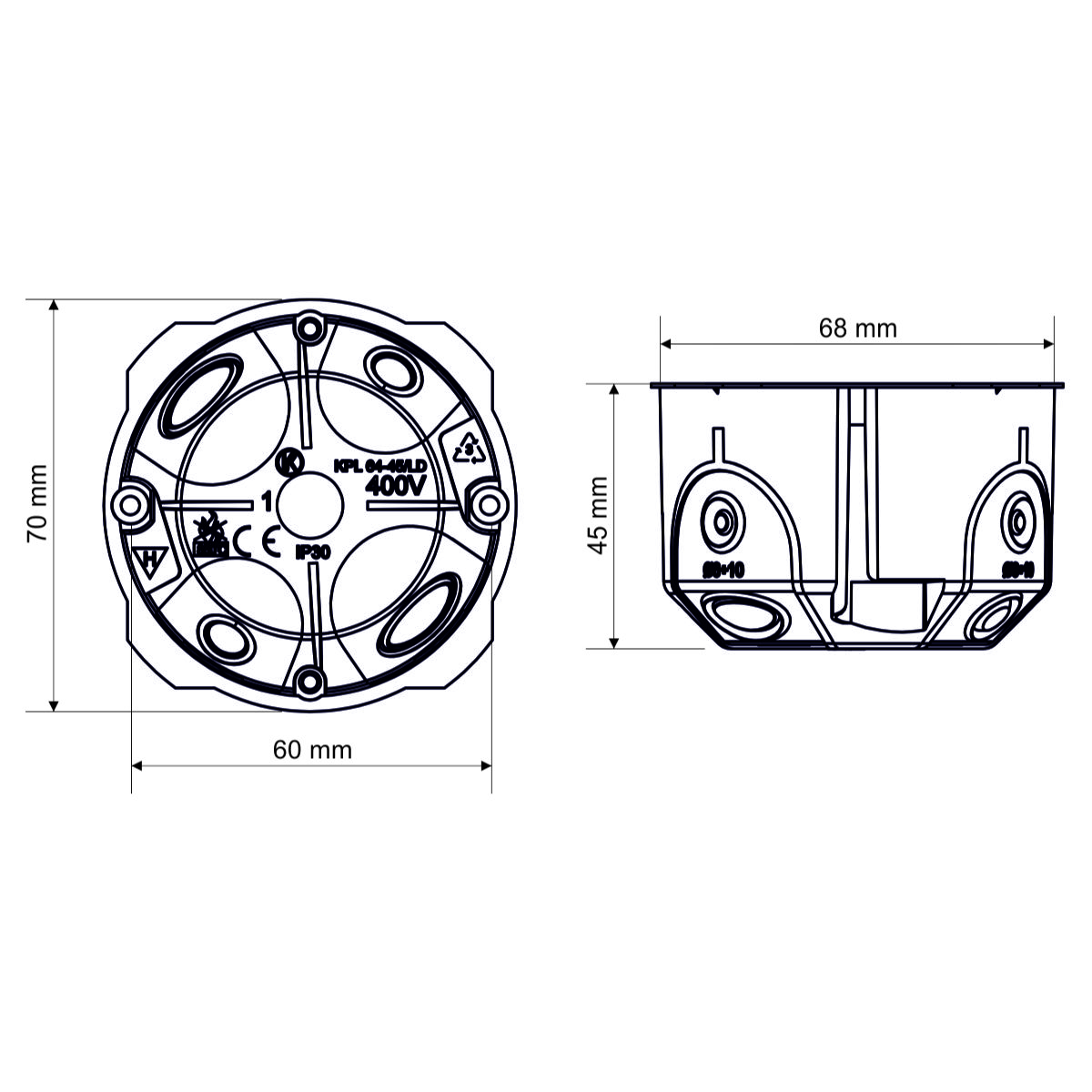

| Širina | 70 mm |
| Visina | 68 mm |
| Dubina | 45 mm |
| Promjer rupa (bušenih) | 68 mm |
| Preporuka proizvođača For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 30 |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box | |
Inlet openings made of flexible material. The cable or tube installation is performed by extracting the pre-pressed inlet to the flexible membranes and then inserting the required item into the opening. Installation box in the hole is made by tightening mounting screws. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Protected by a European industrial design trademark.
