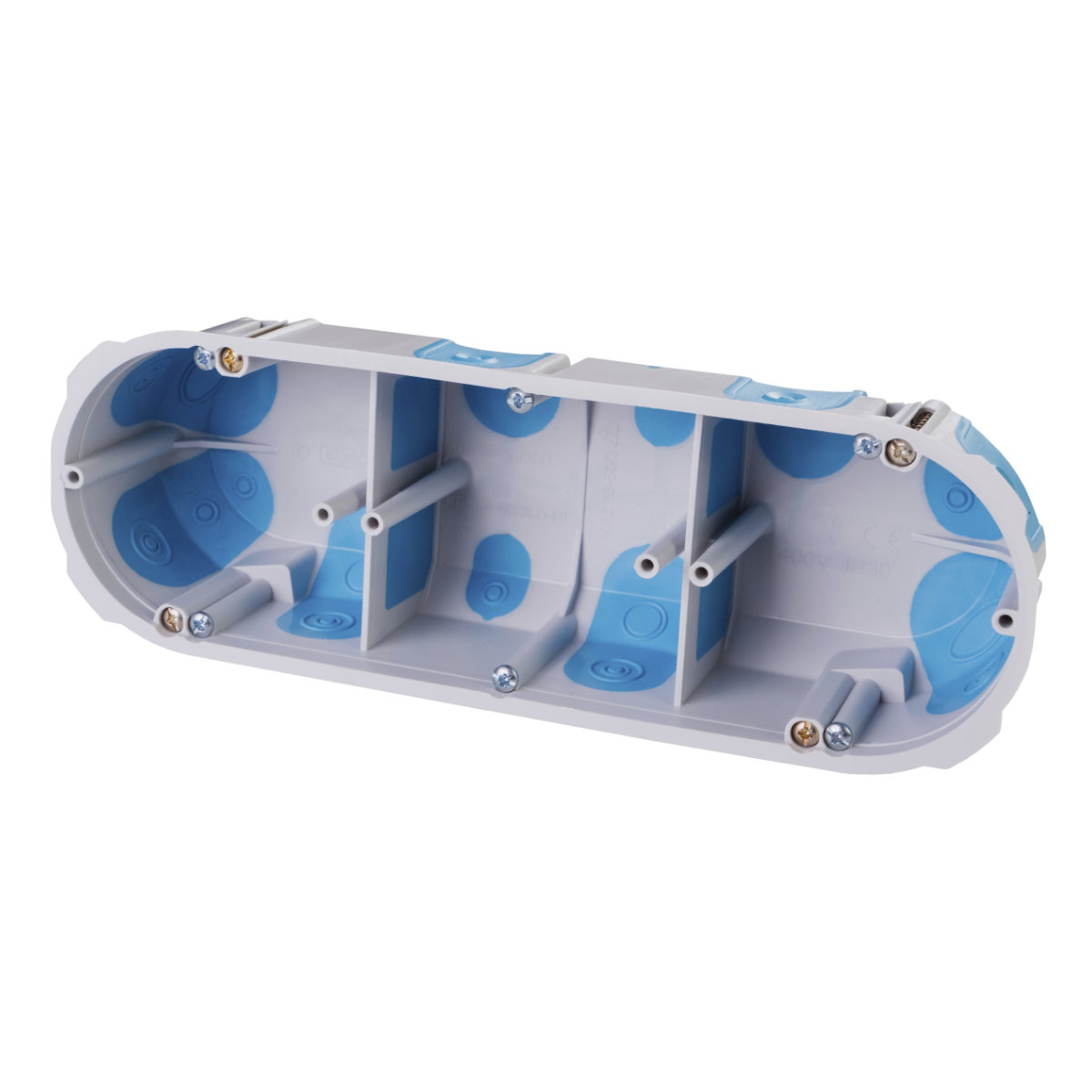

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
EAN kod8595568937667
Tarifni broj39259080
Težina0,0288 kg/pcs
MaterijalPP
Bezhalogeni materijalyes
Materijal bez uljayes
Zvučna izolacijayes
Samogasivi30 s
Nazivni napon<= 400 V
Nazivna struja<= 16 A
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Širina209 mm
Visina68 mm
Dubina50 mm
Promjer rupa (bušenih)68 mm
Preporuka proizvođača
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Klasa reakcije na požar podložnog materijalaA1 - F
Prostor kada spojimo dvije kutije71 mm
Vrste zaštiteIP 30
StandardiČSN EN 60 670-1
Opis paketa
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

Halogen-free design of triple double-injection hollow wall box for use in environments with increased need for protection of persons and property. For modern installations in composite frames. Distinctive rigidity and simple shape simplifies installation of devices. Inlet openings made of flexible material. Installation of the cable or pipe is done by pulling out the pre-moulded inlet on the flexible membranes and inserting the cable or pipe into the hole. The airtightness of the penetration is ensured even when the cable or pipe is inserted. Prevents air flow through the installation. Suitable for low-energy or passive houses. On the outside there are three pins marking the drilling points. The box meets the requirements for installations in soundproof walls with attenuation up to 69 dB. The mounting screws are double threaded for quick installation. Installation of the box in the wall opening is done by tightening the mounting screws. IP30 is met by a box fitted with a device with a rating greater than or equal to IP30. Protected by European industrial design. It is not necessary to countersink the edge of the plasterboard during installation.
