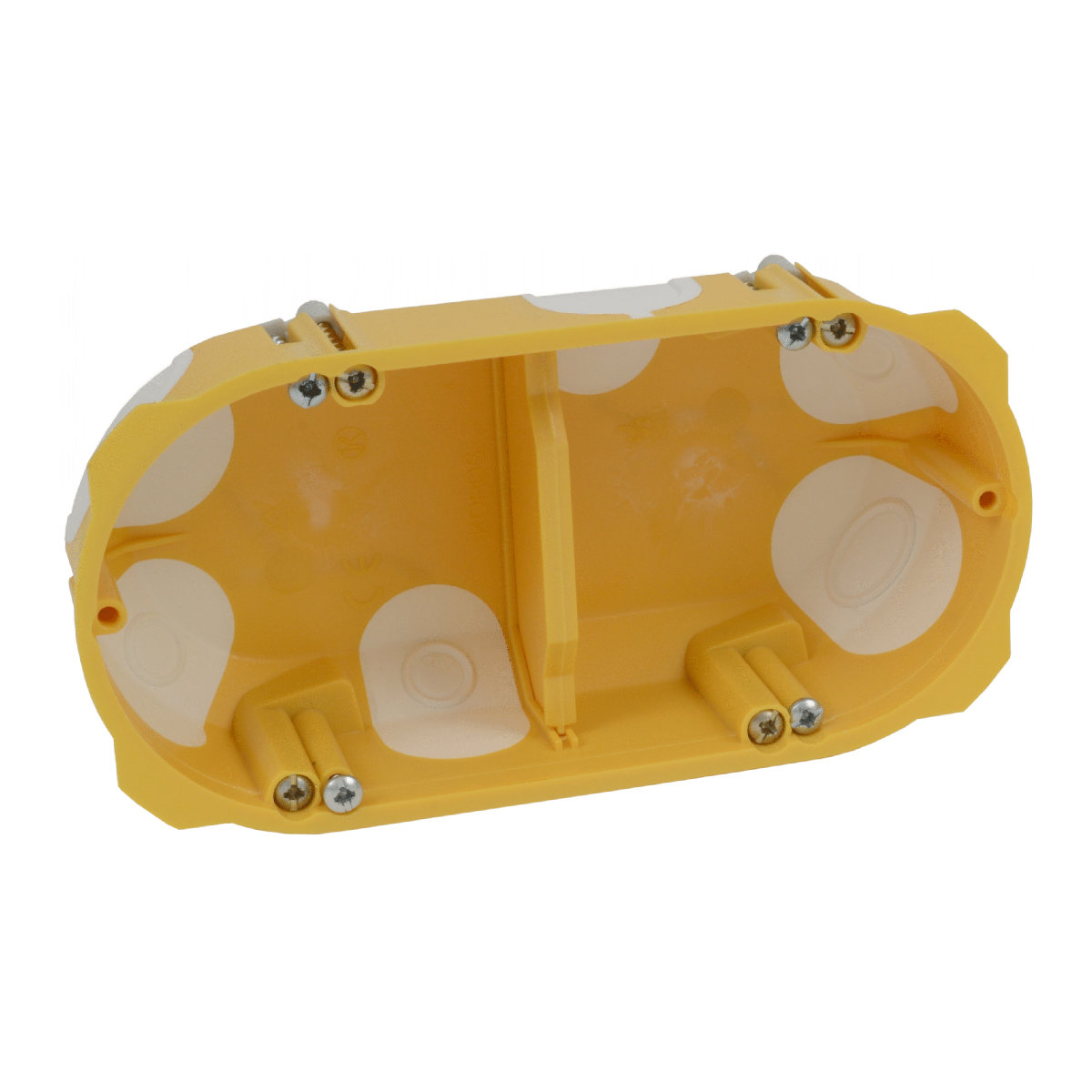

Ilustrativni prikaz
KPL 64-40/2LD NA - krabice přístrojová
To download 3D models, please login or create an account and request access.
EAN kod8595568924612
Tarifni broj39259080
Težina0,05 kg/pcs
MaterijalPVC
Materijal bez uljayes
Zvučna izolacijayes
Samogasivi30 s
Nazivni napon<= 400 V
Nazivna struja<= 16 A
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C

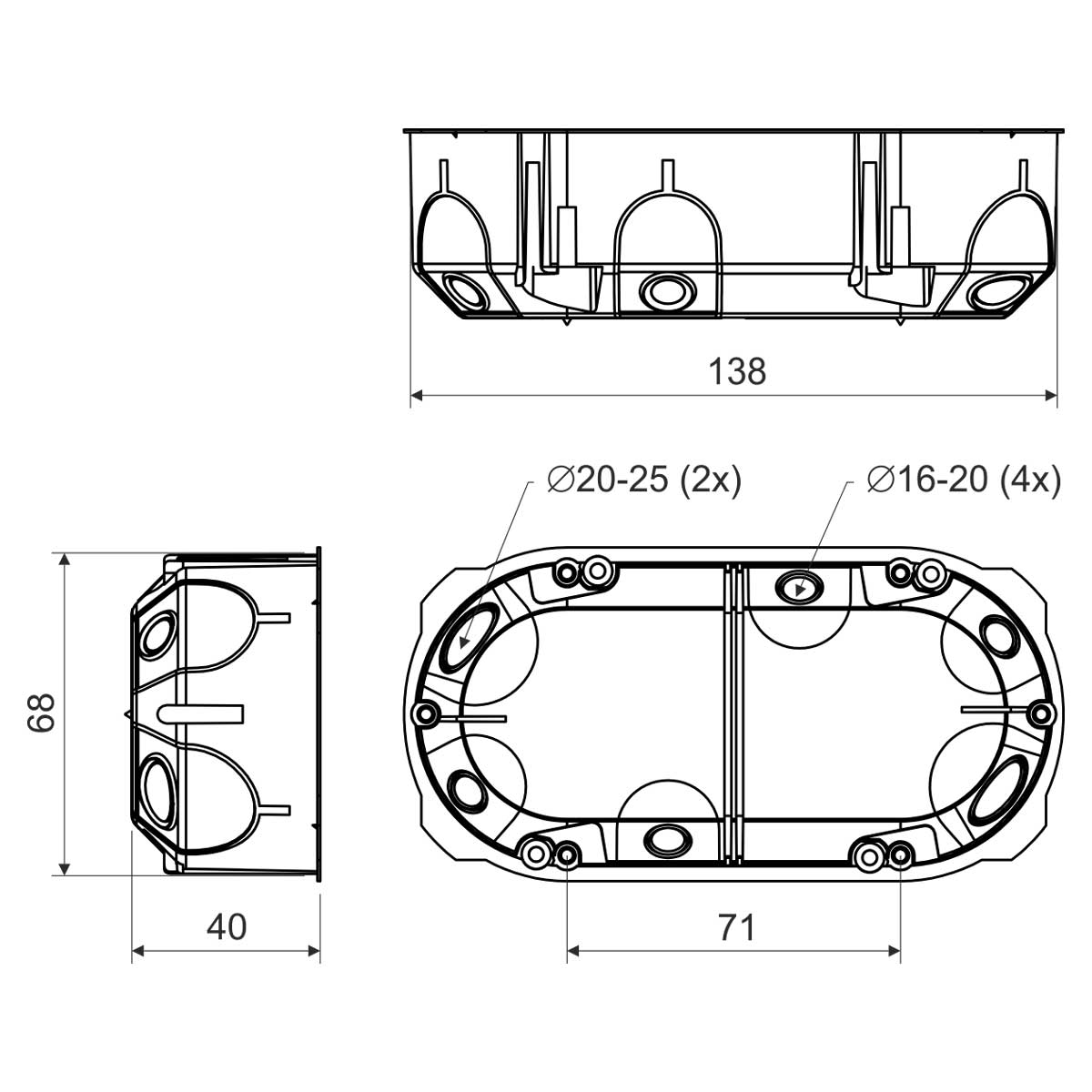

Širina138 mm
Visina68 mm
Dubina40 mm
Promjer rupa (bušenih)68 mm
Preporuka proizvođača
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Klasa reakcije na požarA1 - F
Prostor kada spojimo dvije kutije71
Vrste zaštiteIP30
StandardiČSN EN 60 670-1
Opis paketa
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box, the box contains a removable partition wall

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Two tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Protected by European industrial design trademark. When mounting, it is not necessary to countersink the plasterboard edge.
