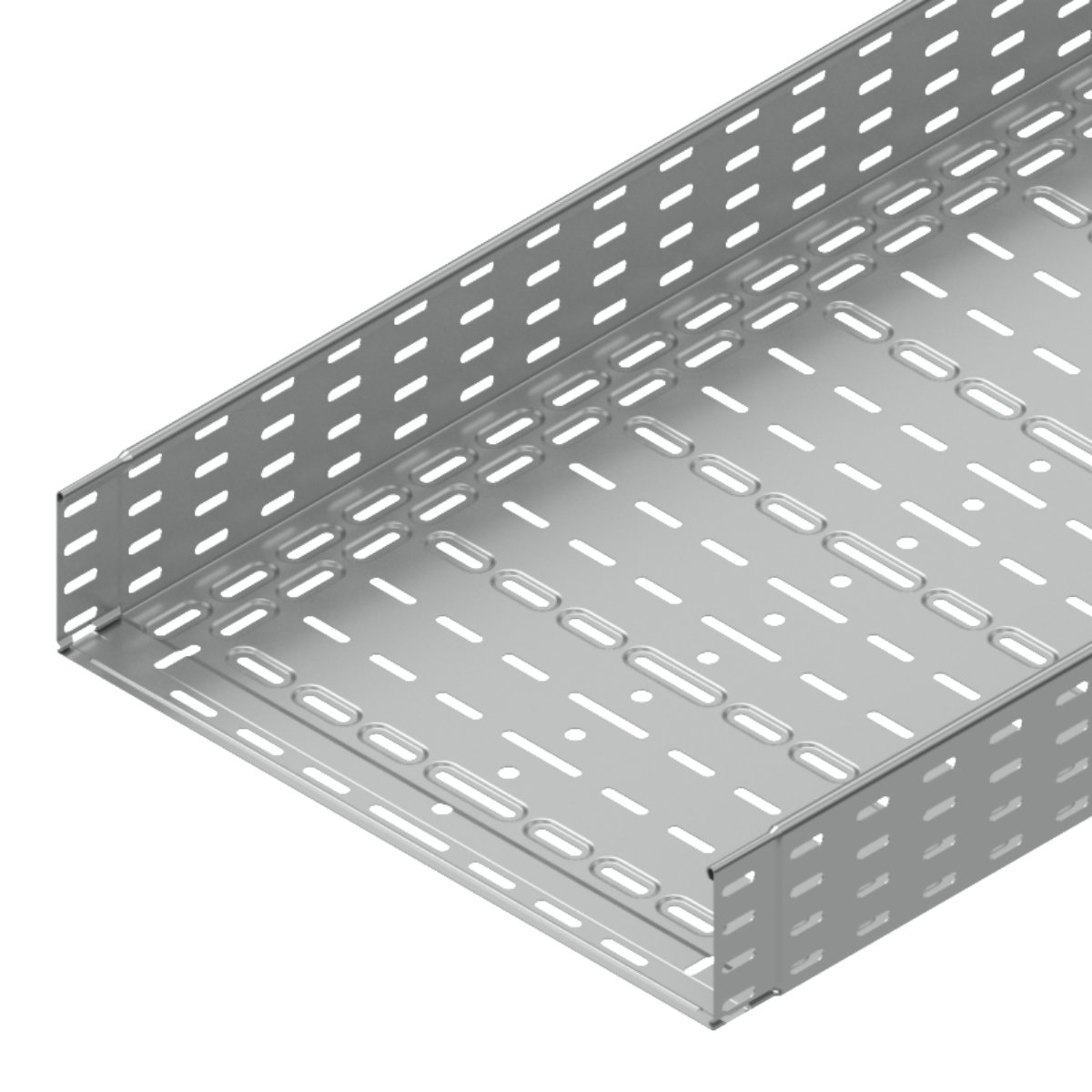

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KZI110_EN
| EAN kod | 8595057696297 |
| Tarifni broj | 73089059 |
| Težina | 7,0910 kg/m |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - +150 °C |
| Širina | 500 mm |
| Visina | 110 mm |
| Dužina | 3000 mm |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,25 mm |
| Količina vijaka za spajanje | 10 |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
