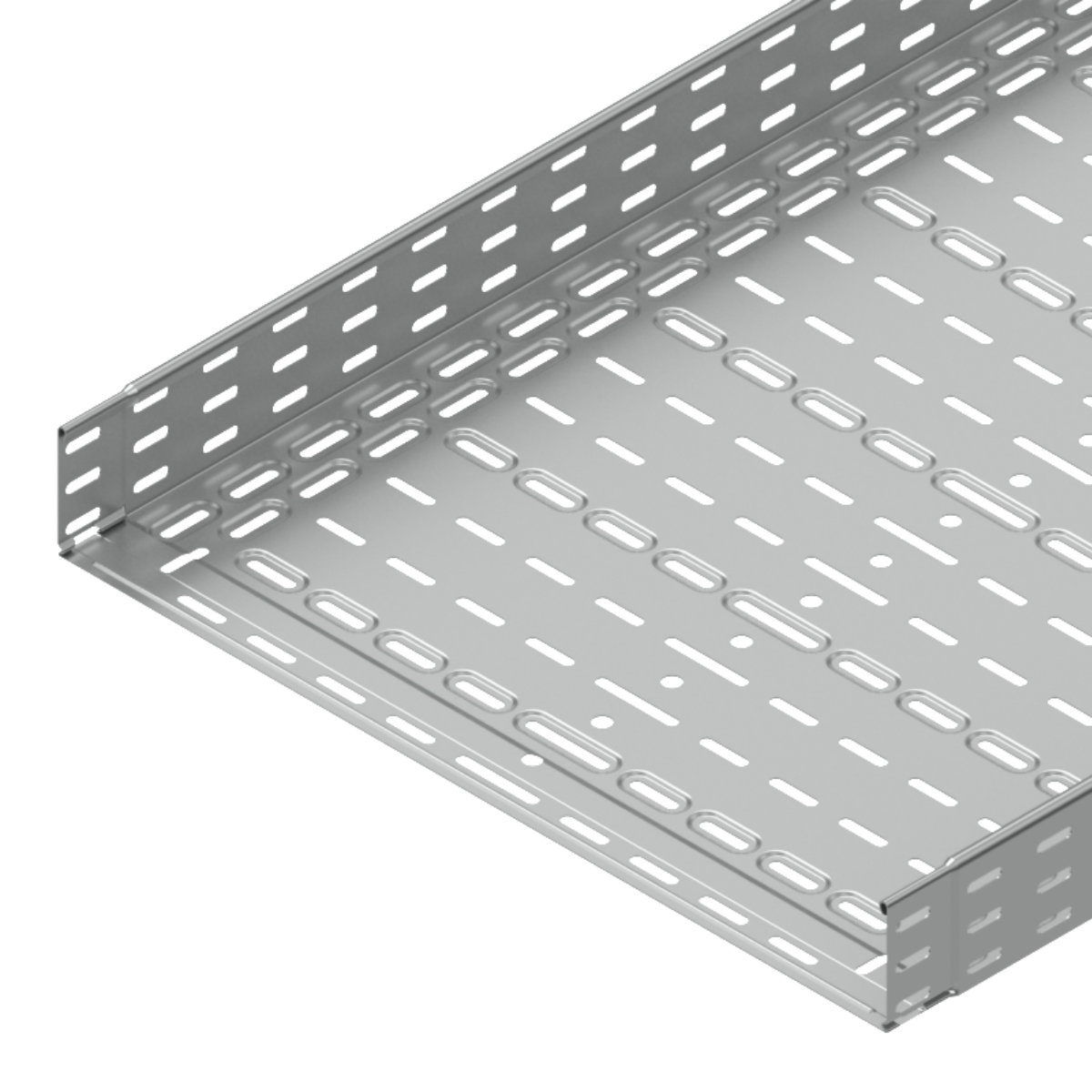

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KZI85_EN
| EAN kod | 8595057692367 |
| Tarifni broj | 73089059 |
| Težina | 4,15 kg/m |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Širina | 400 mm |
| Visina | 85 mm |
| Dužina | 3000 mm |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1 mm |
| Količina vijaka za spajanje | 8 |
For securing the connection of the trays with the integrated coupling there are used the clamps made from spring steel KSV or the bolts NSM 6X10.
