Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
DRT_EN
| EAN kod | 8595057639966 |
| Tarifni broj | 83024190 |
| Težina | 1,47 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Maksimalno opterećenje | 380 kg |

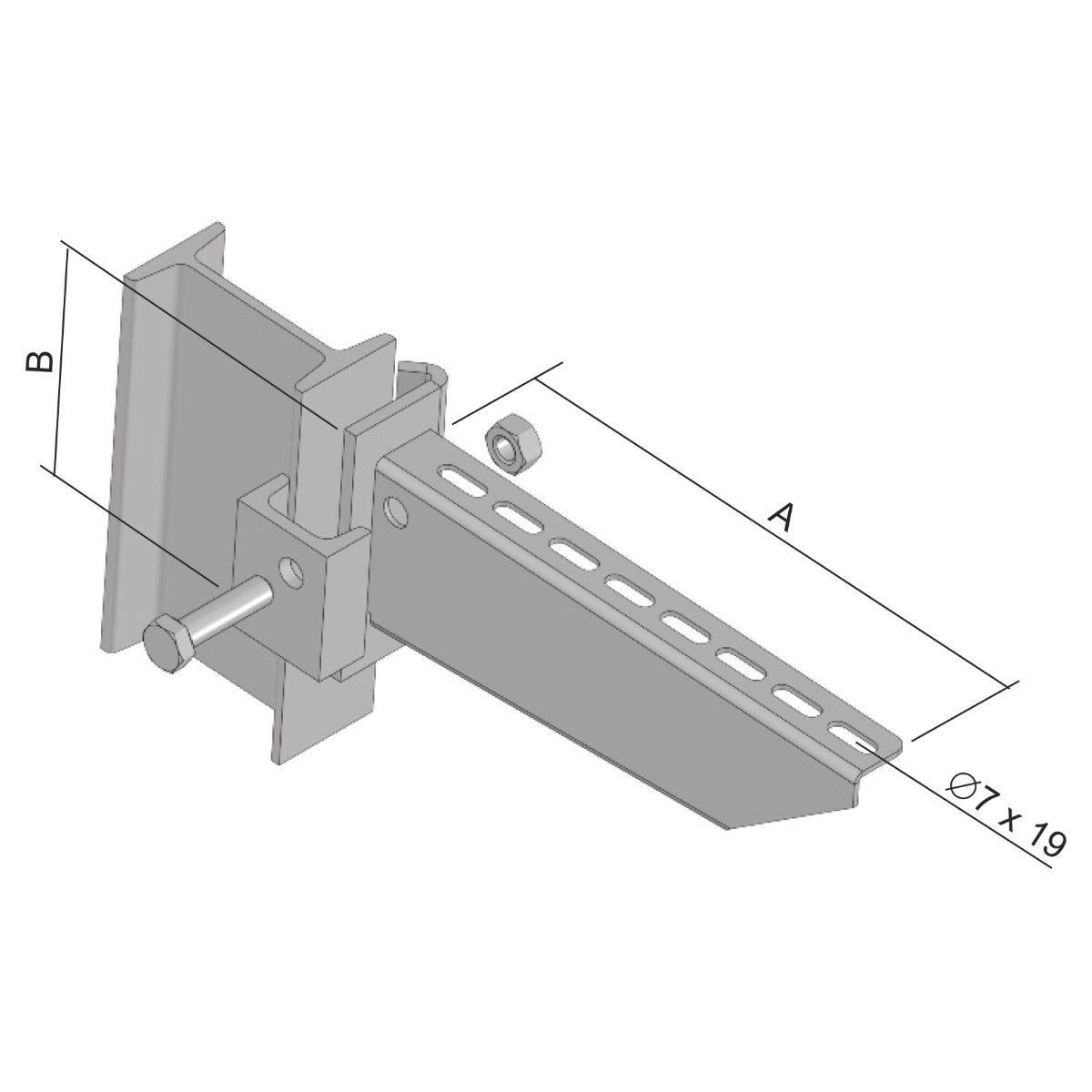

| Dimenzija A | 520 mm |
| Dimenzija B | 117 mm |
| Za širinu kabelske ploče | 500 mm |
| Za visinu kabelske police | 35 - 110 mm |

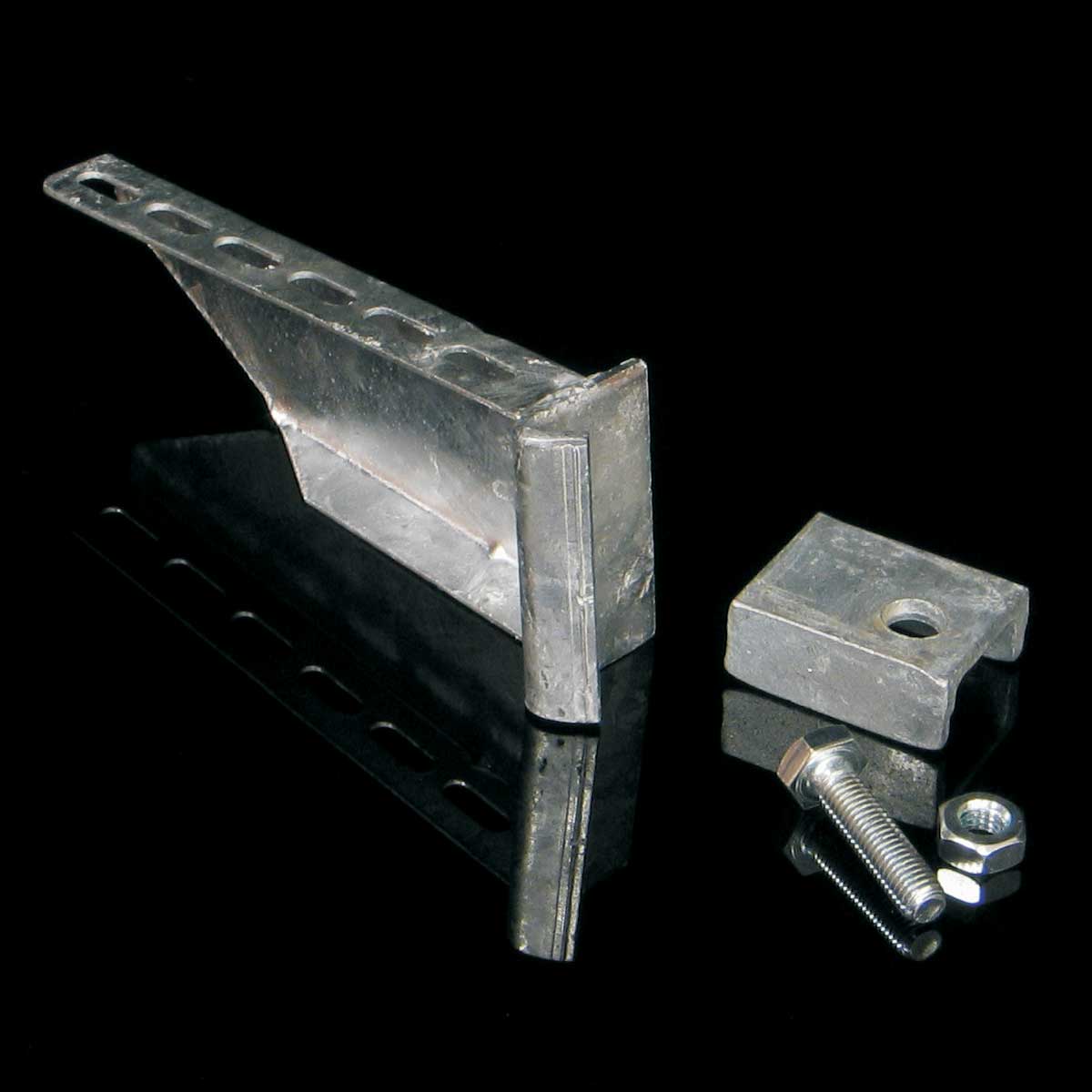

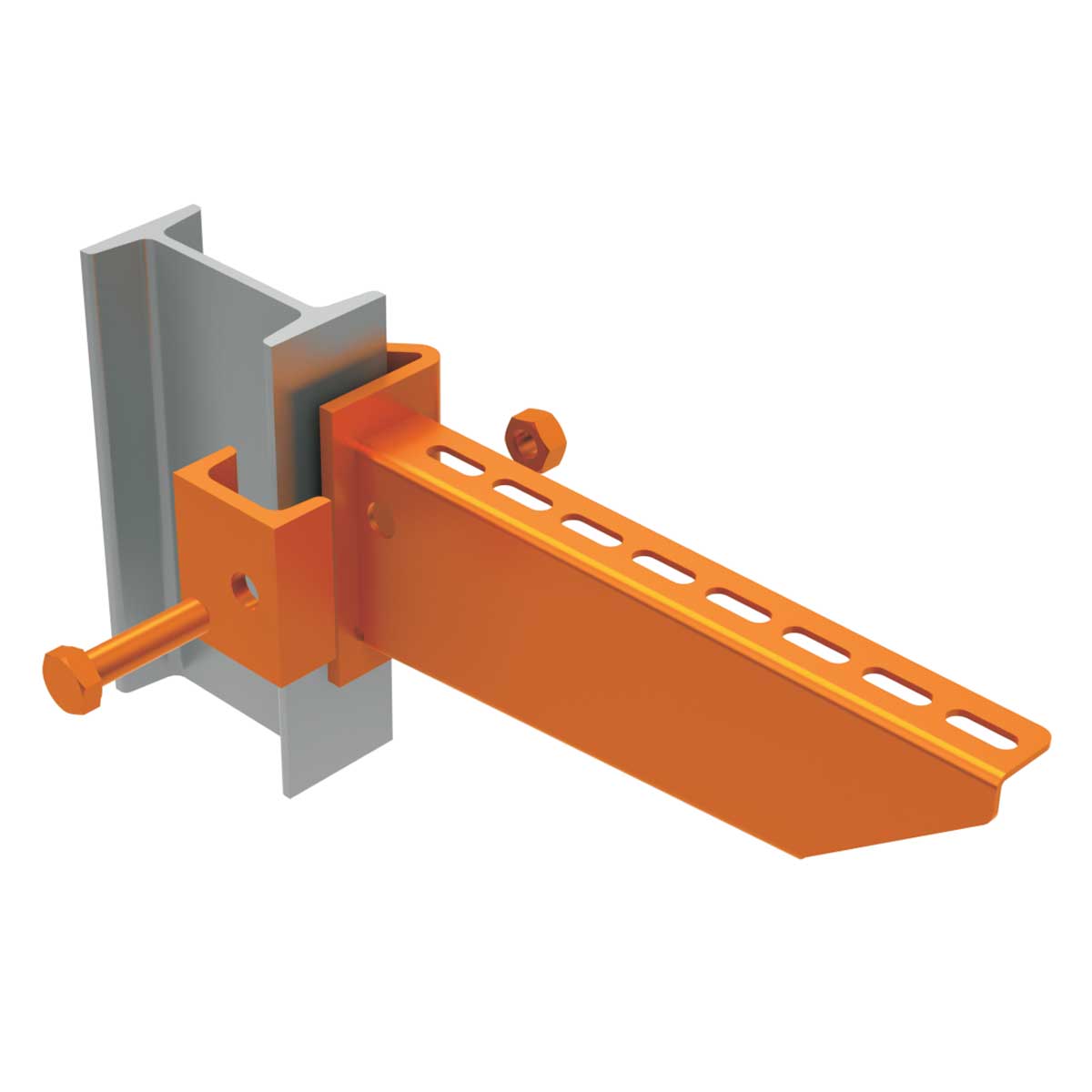

Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
