DRT_HR
| EAN kod | 8595057635302 |
| Tarifni broj | 83024190 |
| Težina | 0,3888 kg/kom |
| Površinska obrada | Hot Dip Galvanized |
| Maksimalno opterećenje | 320 kg |
| Dimenzija A | 170 mm |
| Dimenzija B | 90 mm |
| Za širinu kabelske ploče | 150 mm |
| Za visinu kabelske police | 35 - 110 mm |

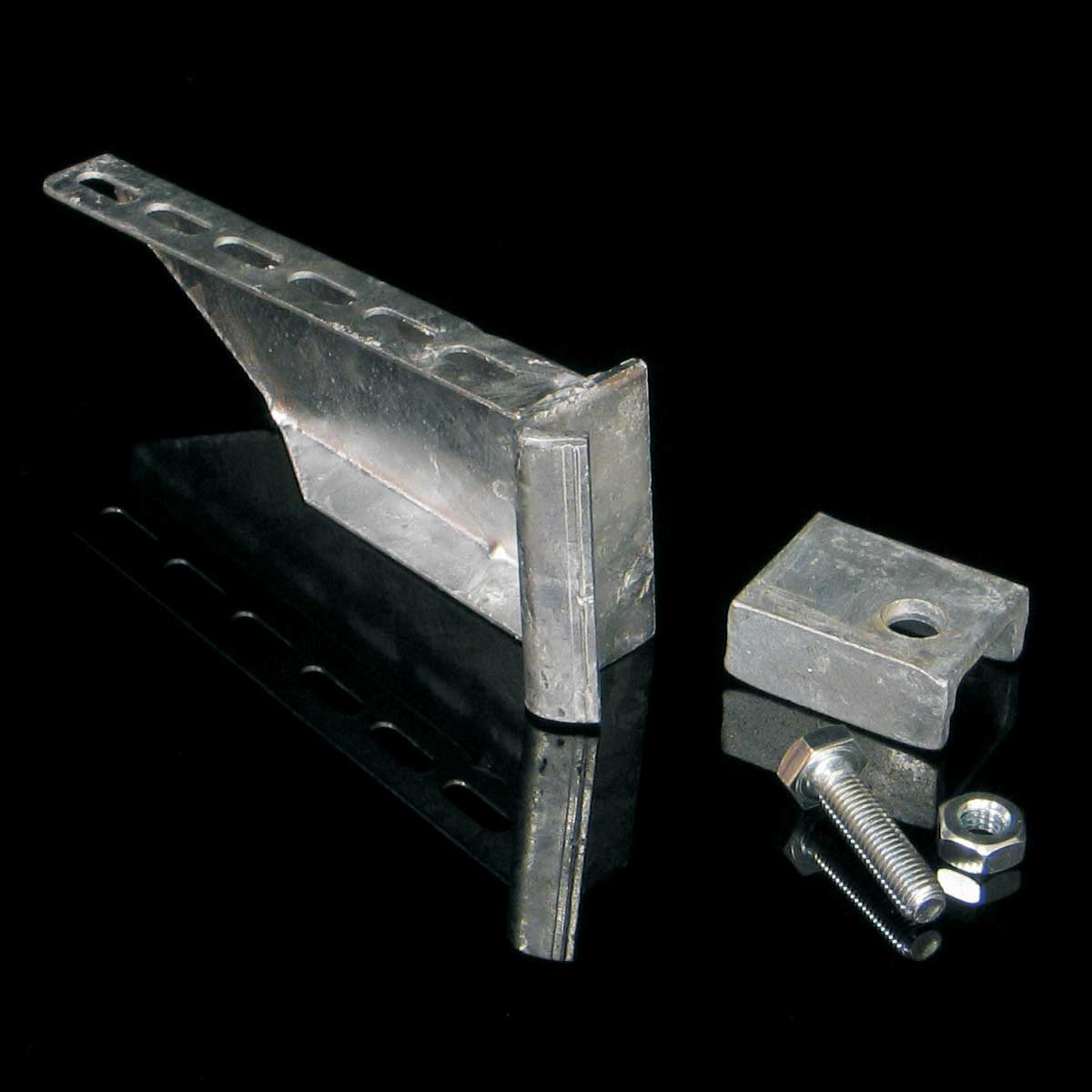

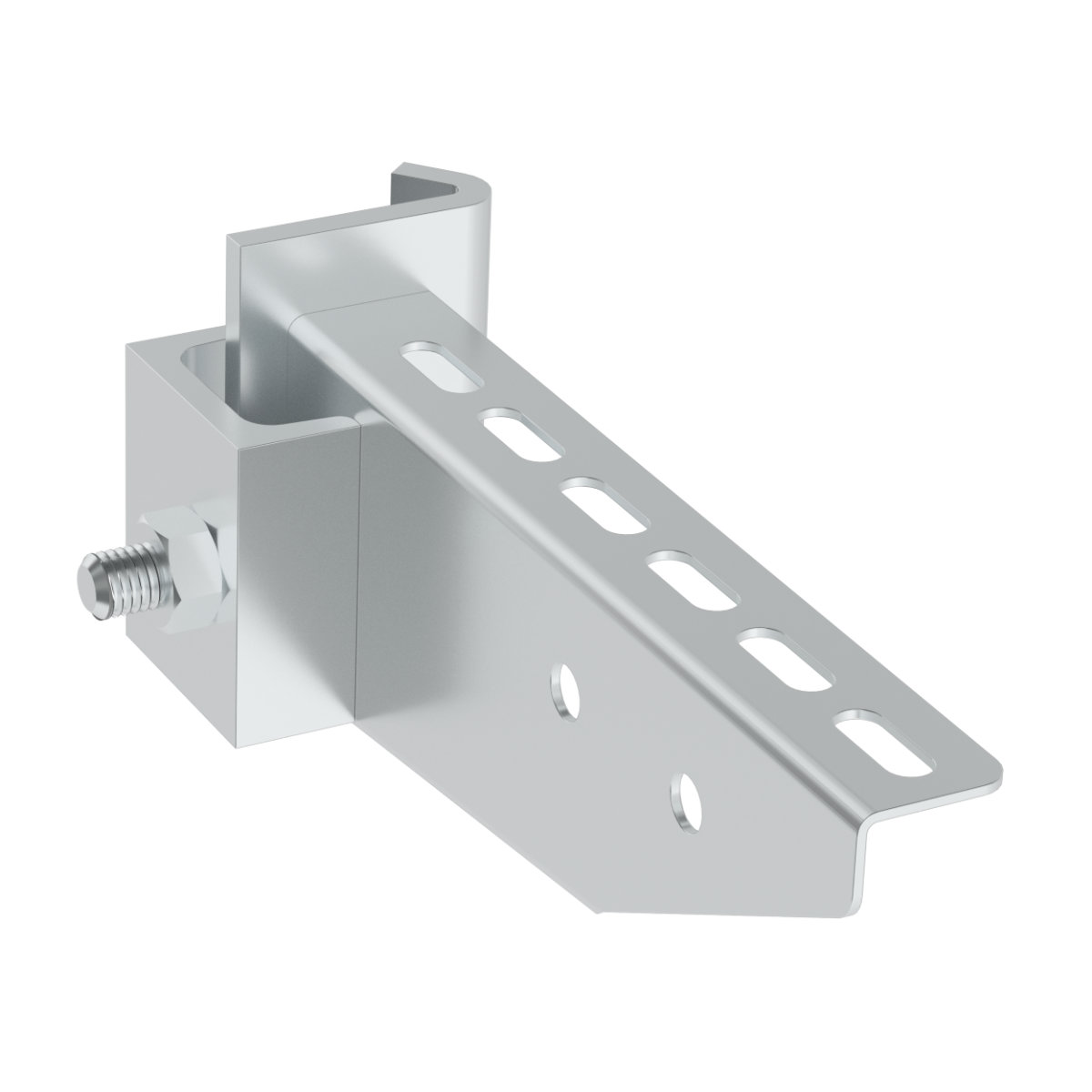

Set up for installation on the ceiling profile SPT and on Iprofile 80 mm. Tripping steel square, nut and crew S 8X20 are included. Cable tray attaching to the bracket is carried out by bolts NSM 6X10.
