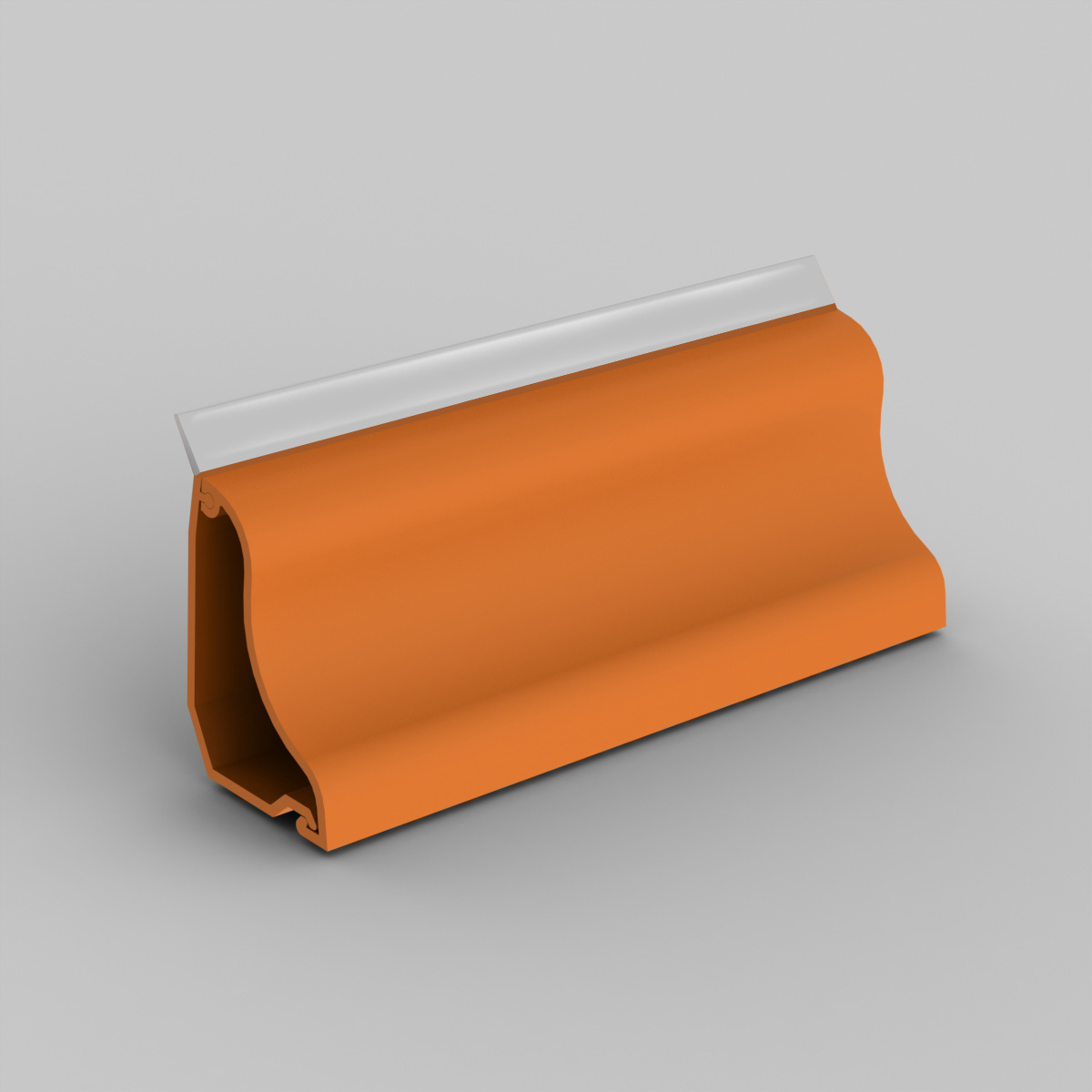

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LP35_EN
| EAN kod | 8595568903761 |
| Tarifni broj | 39259020 |
| Težina | 0,2360 kg/m |
| Boja | light wood |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 2 J |

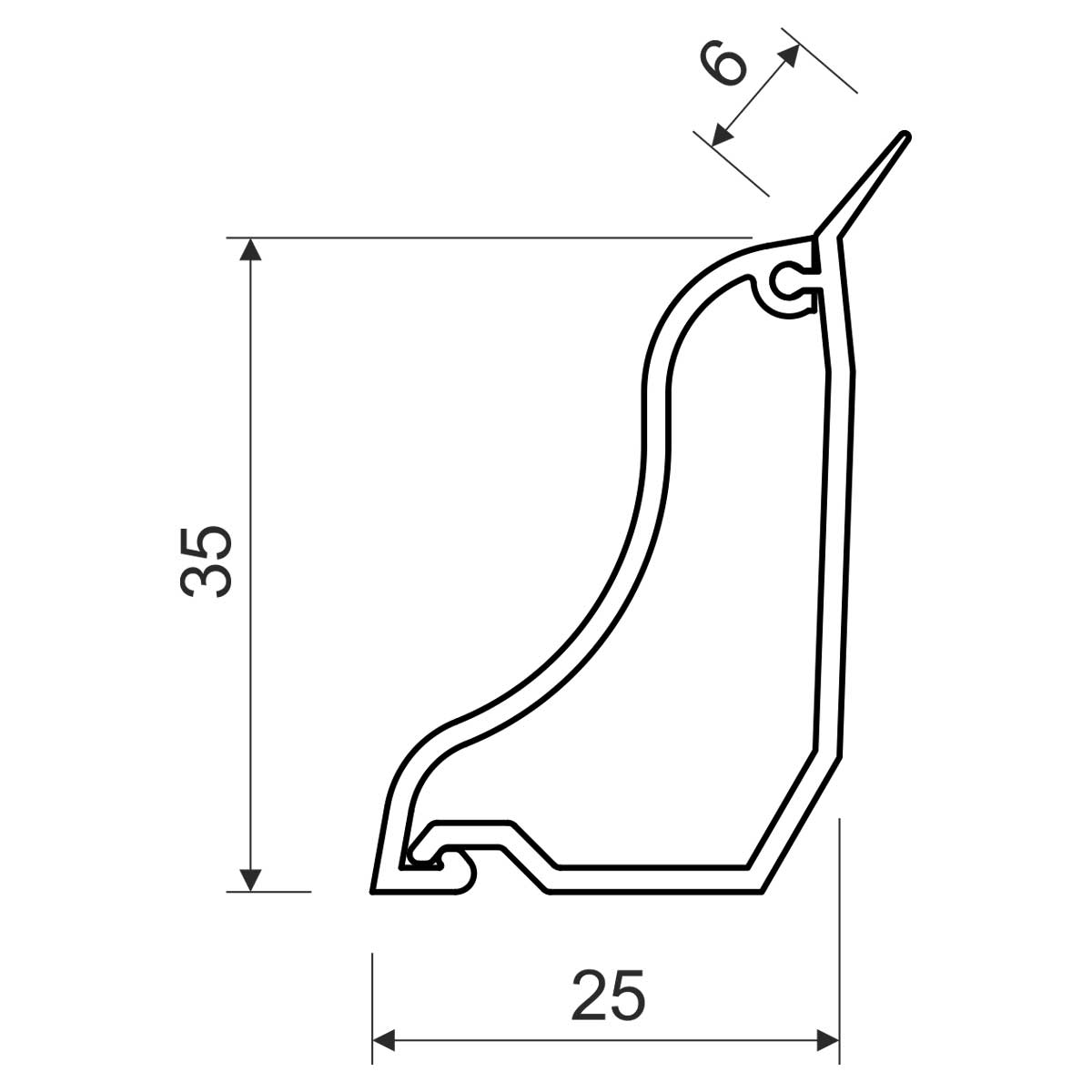

| Širina | 35 mm |
| Visina | 25 mm |
| Dužina | 2 m |
| Unutarnje područje | 350 mm2 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |

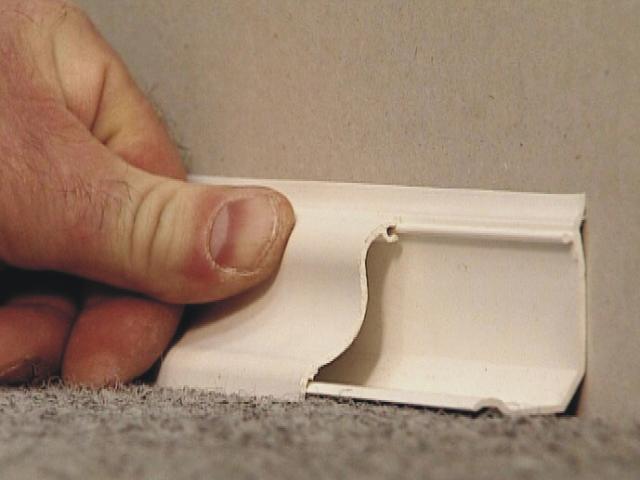

It is designed for installation in the corner between the floor and wall. Edge with softened spray application for better adhesion to the surface. Suitable for use with floating floors.
