Ilustrativni prikaz
LP 35 HD - lišta podlahová

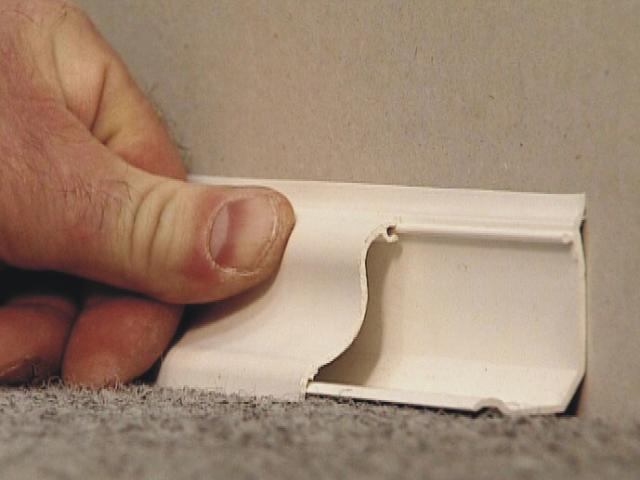

způsob montáže
To download 3D models, please login or create an account and request access.
EAN kod8595057615977
Tarifni broj39259020
Težina0,2360 kg/m
Bojawhite
MaterijalPVC
Materijal bez uljayes
Samogasivi30 s
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Otpornost na udar2 J
Antibacterialyes
Širina35 mm
Visina25 mm
Dužina2 m
Unutarnje područje350 mm2
Tolerancija
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Područje s opasnošću od eksplozije
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Klasa reakcije na požar podložnog materijalaA1 - F
Vrste zaštiteIP 40
StandardiČSN EN 50 085-1
Opis paketapackage - cardboard
