EAN kod8595568903044
Tarifni broj39259020
Težina0.15 kg/m
Bojalight wood - light brown
MaterijalPVC
Materijal bez uljayes
Samogasivi30 s
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Mehanička zaštitaIK06
Otpornost na udar0,5 J
Širina21 mm
Visina19 mm
Dužina2 m
Unutarnje područje260 mm2
Tolerancija
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Upotreba
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Područje s opasnošću od eksplozije
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Klasa reakcije na požarA1 - F
Vrste zaštiteIP 40
StandardiČSN EN 50 085-1
Opis paketapackage - cardboard

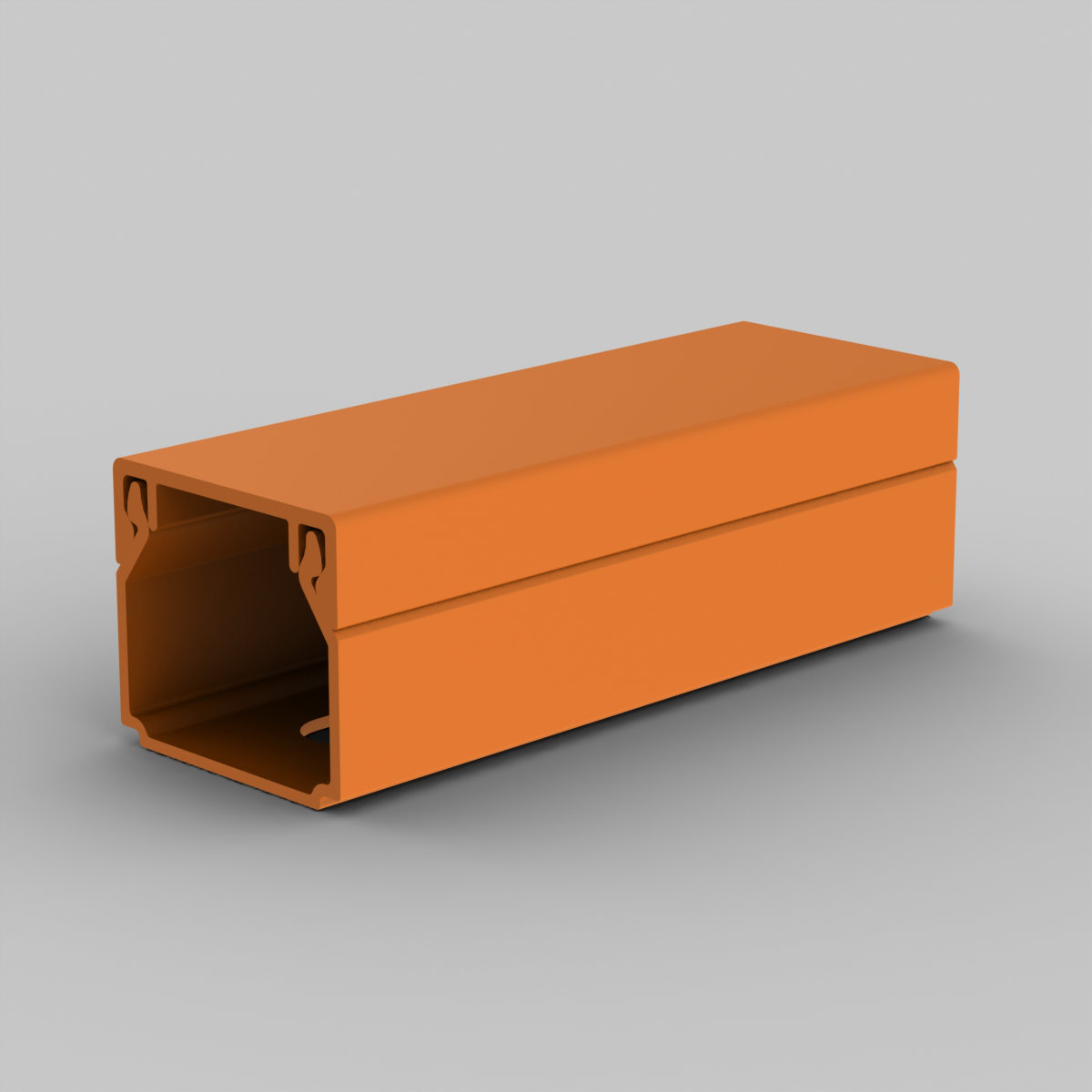

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation. 8824/12 transition branching intended for transition to the LP 80X25 trunking.
