EAN kod8595057633872
Tarifni broj39259020
Težina0,19 kg/m
Bojawhite
MaterijalPVC
Materijal bez uljayes
Samogasivi30 s
Otpornost na temperaturu-5 - 60 °C
Probna petlja850 °C
Mehanička zaštitaIK06
Otpornost na udar0,5 J
Antibacterialyes

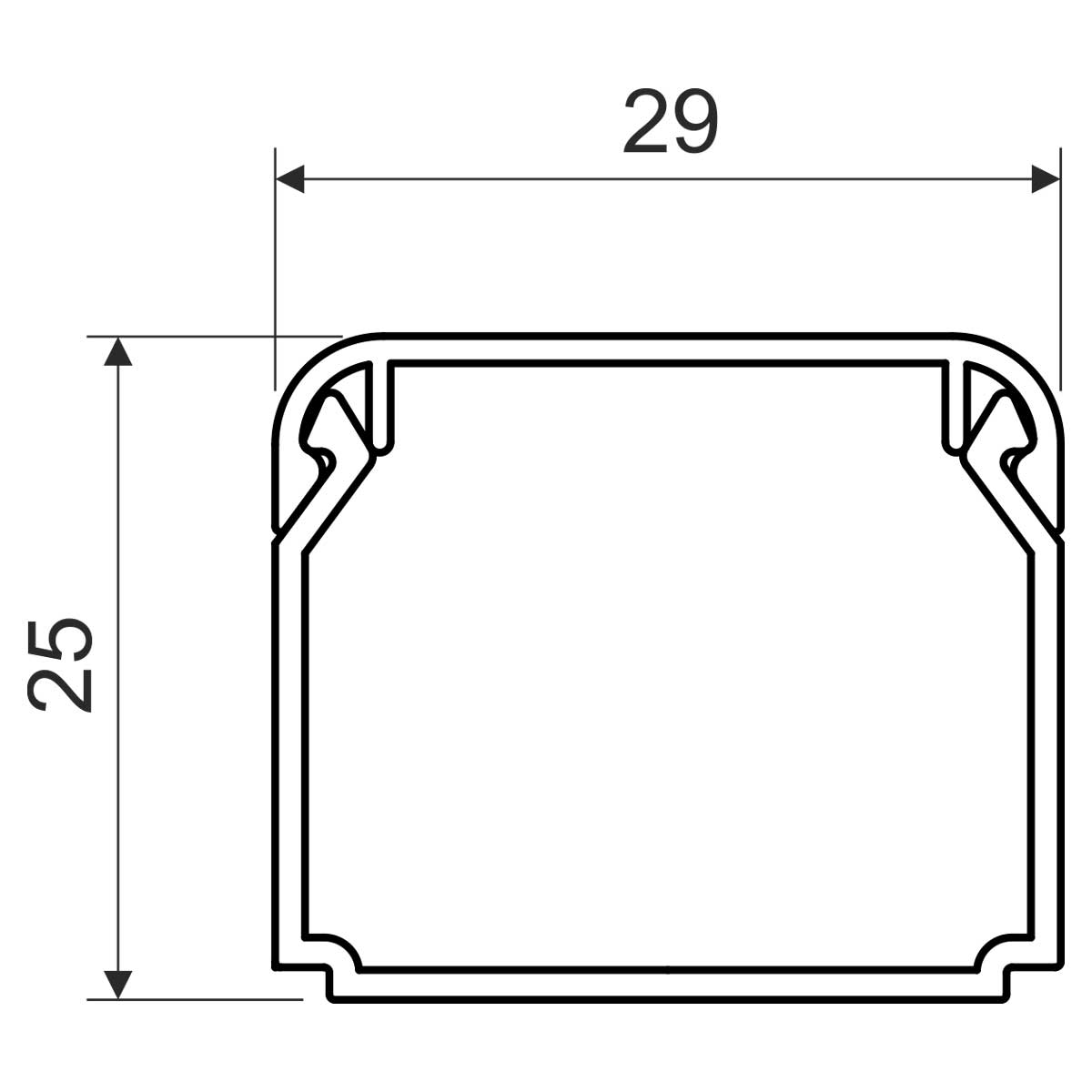

Širina29 mm
Visina25 mm
Dužina2 m
Unutarnje područje480 mm2
Tolerancija
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Upotreba
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Područje s opasnošću od eksplozije
Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14.
Klasa reakcije na požar podložnog materijalaA1 - F
Vrste zaštiteIP 40
StandardiČSN EN 50 085-1
Opis paketapackage - cardboard
Sa zaštitnom folijomyes

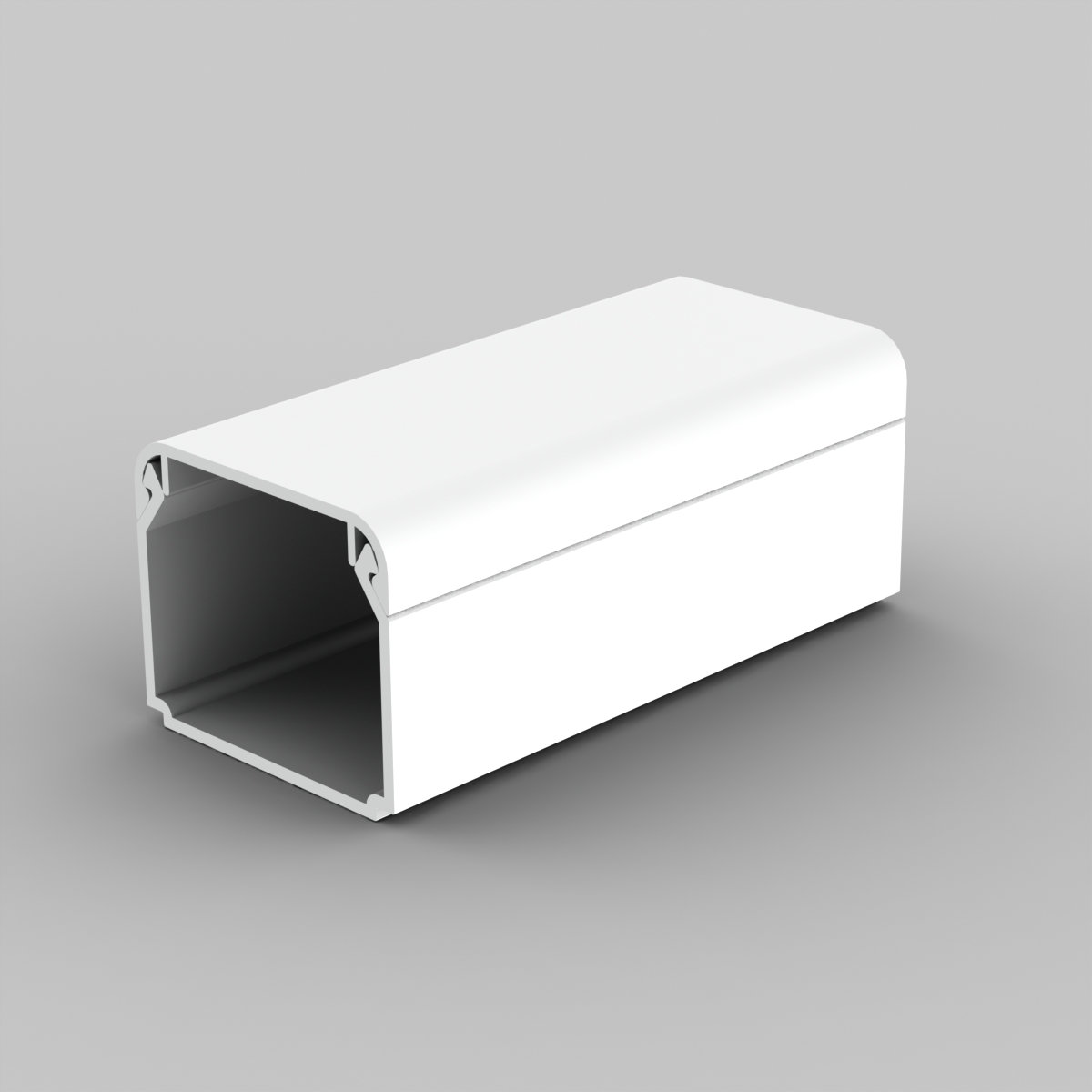

Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
