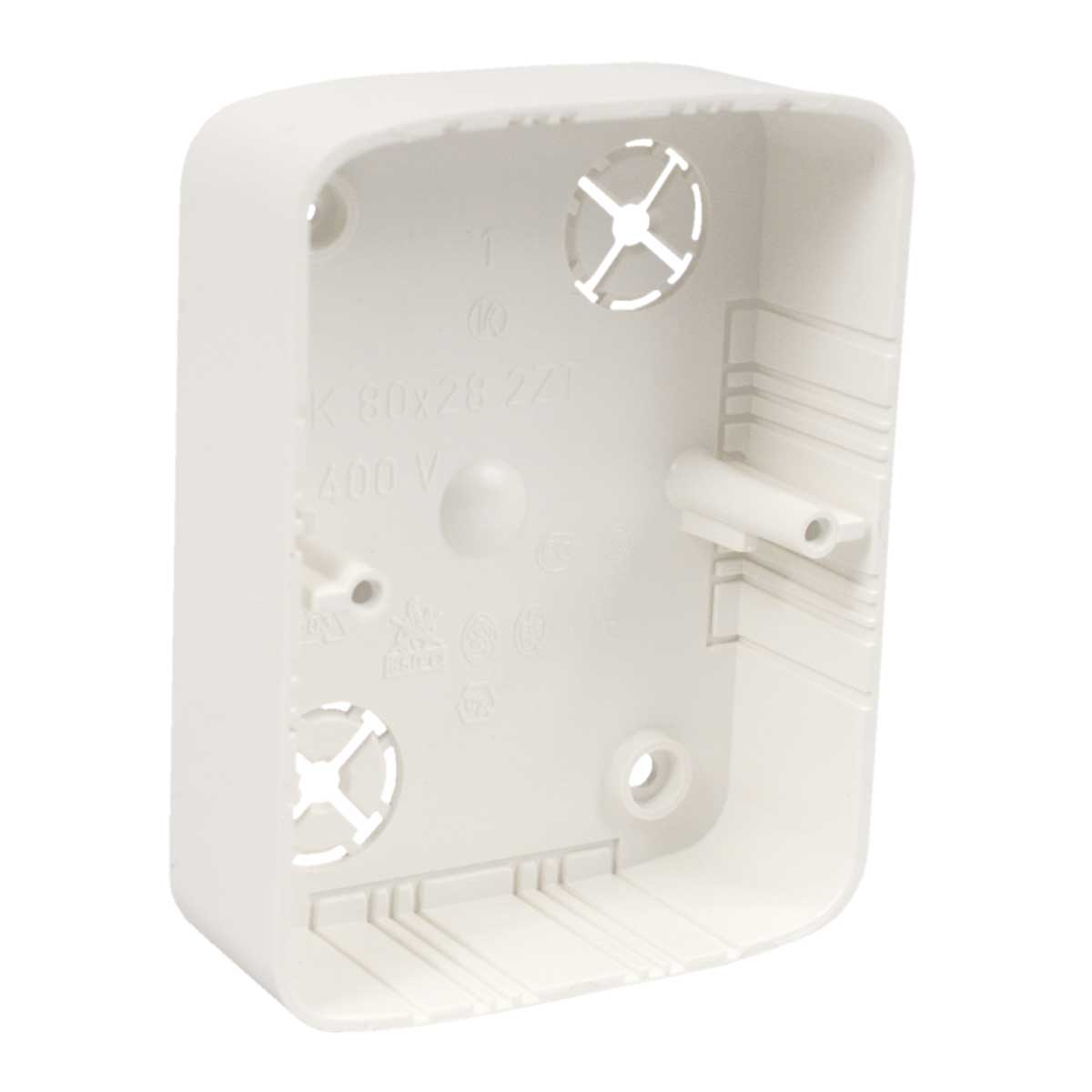

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LK80X28_2ZTHF_EN
| EAN kod | 8595057634145 |
| Tarifni broj | 39259080 |
| Težina | 0,04 kg/pcs |
| Boja | white |
| Materijal | PC-ABS |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -20 - 80 °C |
| Probna petlja | 850 °C |
| Širina | 81 mm |
| Visina | 105 mm |
| Dubina | 28 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Omogućava montažu dvostruke utičnice | yes |
| Standardi | ČSN EN 60 670-1 |
For premises with increased need for protection of persons and property. Intended for double-sockets of Tango series - ABB with high assembling depth. To install on materials with fire classes E or F, use insulating pad.
