Ilustrativni prikaz
LK85X28ZNI_HF_EN
| EAN kod | 8595568942081 |
| Tarifni broj | 39259080 |
| Težina | 0,0319 kg/kom |
| Boja | white |
| Materijal | PC-ABS |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - +60 °C |
| Probna petlja | 850 °C |

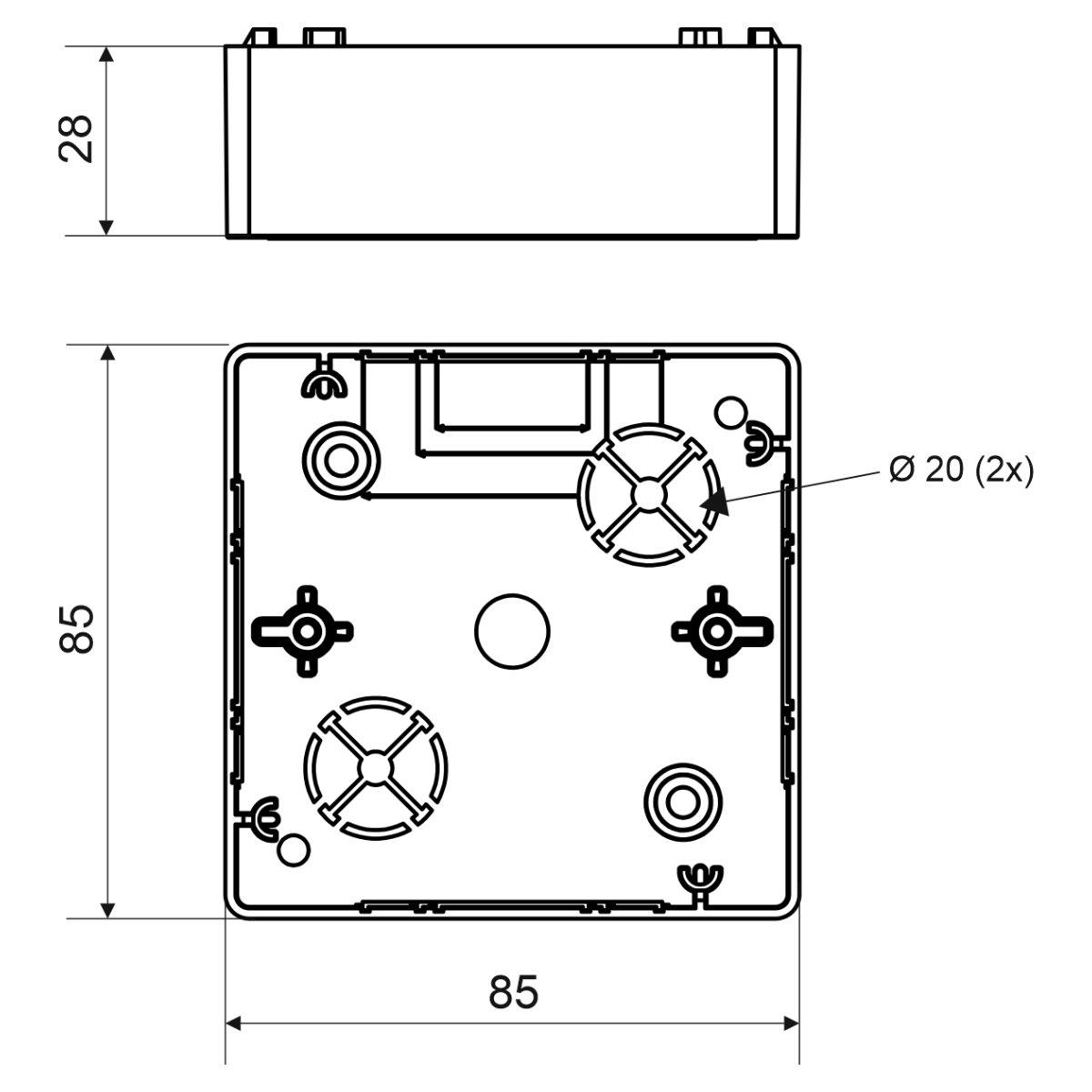

| Širina | 85 mm |
| Visina | 85 mm |
| Dubina | 28 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Proširivanje reakcije na vatru temeljnog materijala Combined with a 5 mm thermal insulation pad, installation on flammable substrates can be carried out without limitation of the reaction to fire class A1 - F | |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa the boxes are packed in a shrink foil of 10 pieces and the screws are enclosed | |

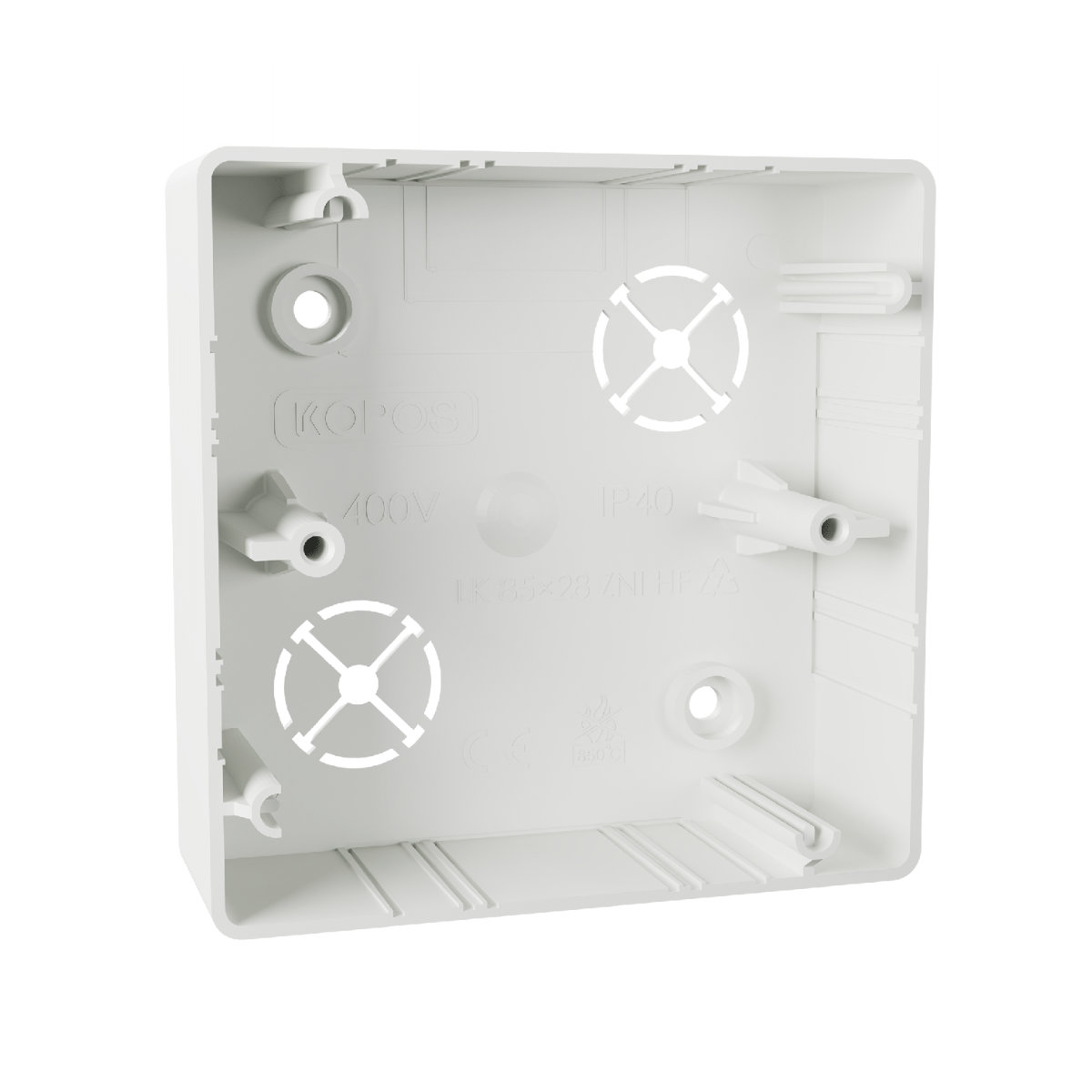

Trunking box designed for devices from the ABB Zoni product line, offering large installation depth. Suitable for installation on materials with reaction-to-fire classes A1 to D. The box is equipped with fixing posts to ensure accurate device positioning.
