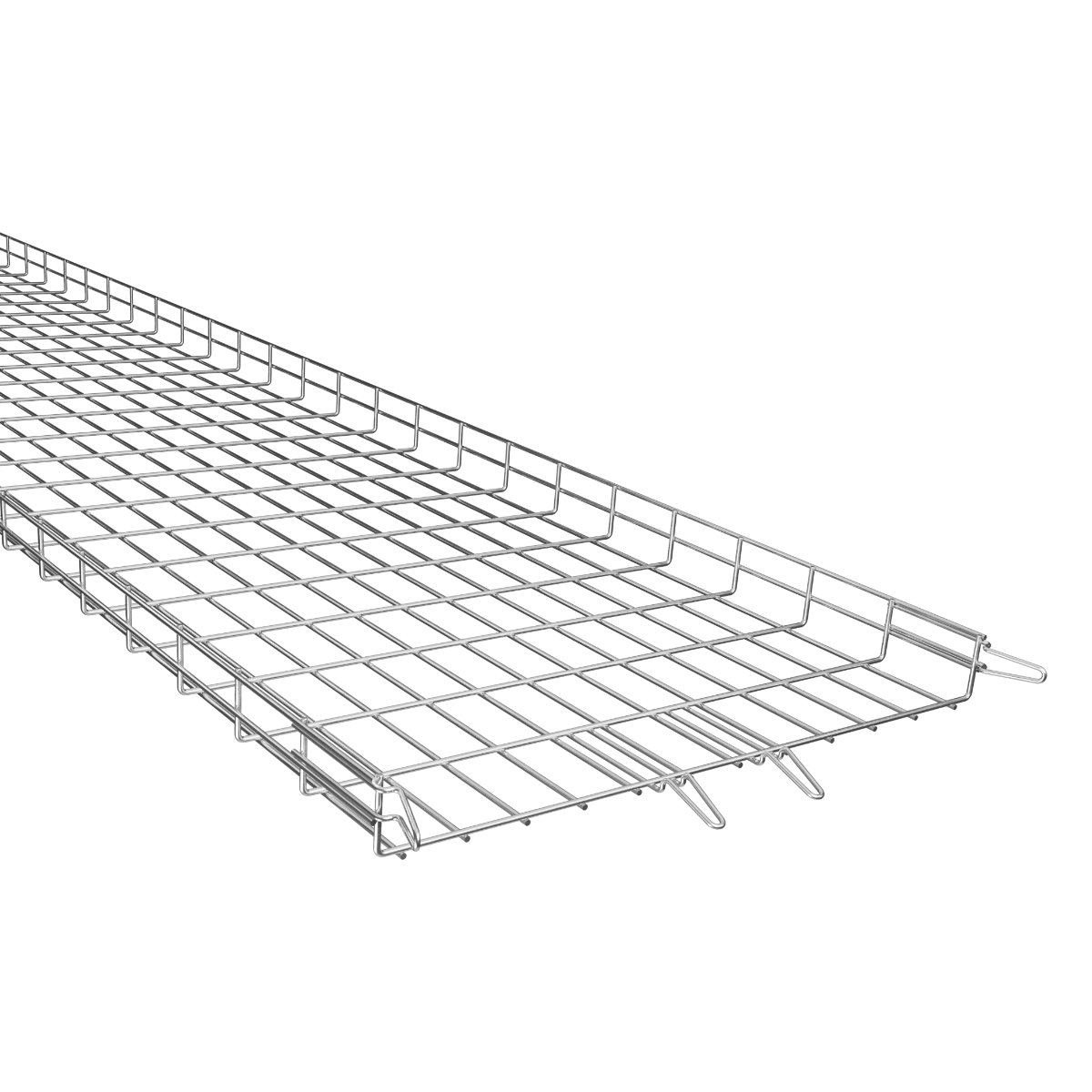

Ilustrativni prikaz
DZI_V_EN
| EAN kod | 8595568940001 |
| Tarifni broj | 73262000 |
| Težina | 3,1200 kg/m |
| Površinska obrada | Electrolytic Galvanized |
| Širina | 600 mm |
| Visina | 60 mm |
| Dužina | 3000 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Promjer žice | 4,3 - 4,8 mm |
| Donja rešetka | 50x100 |
| Spojni element na dnu kabelske police | 2 |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
