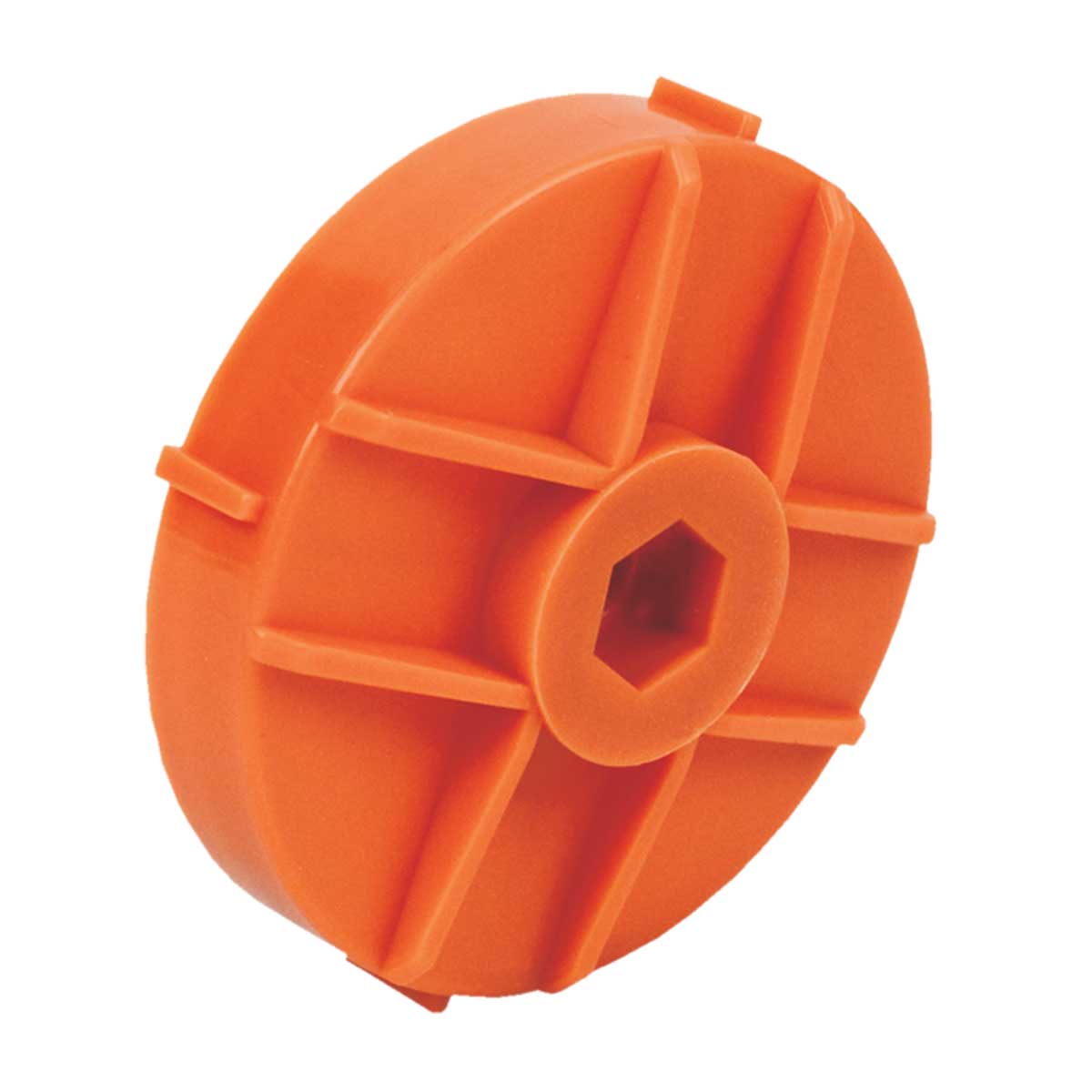

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KBS3_EN
| EAN kod | 8595057608146 |
| Tarifni broj | 39259080 |
| Težina | 0,02 kg/pcs |
| Boja | orange |
| Materijal | PA |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| Nazivni napon | <= 400 V |
| Otpornost na temperaturu | -5 - 60 °C |
| Kratkotrajna otpornost na temperaturu | 90 °C |
| Probna petlja | 650 °C |

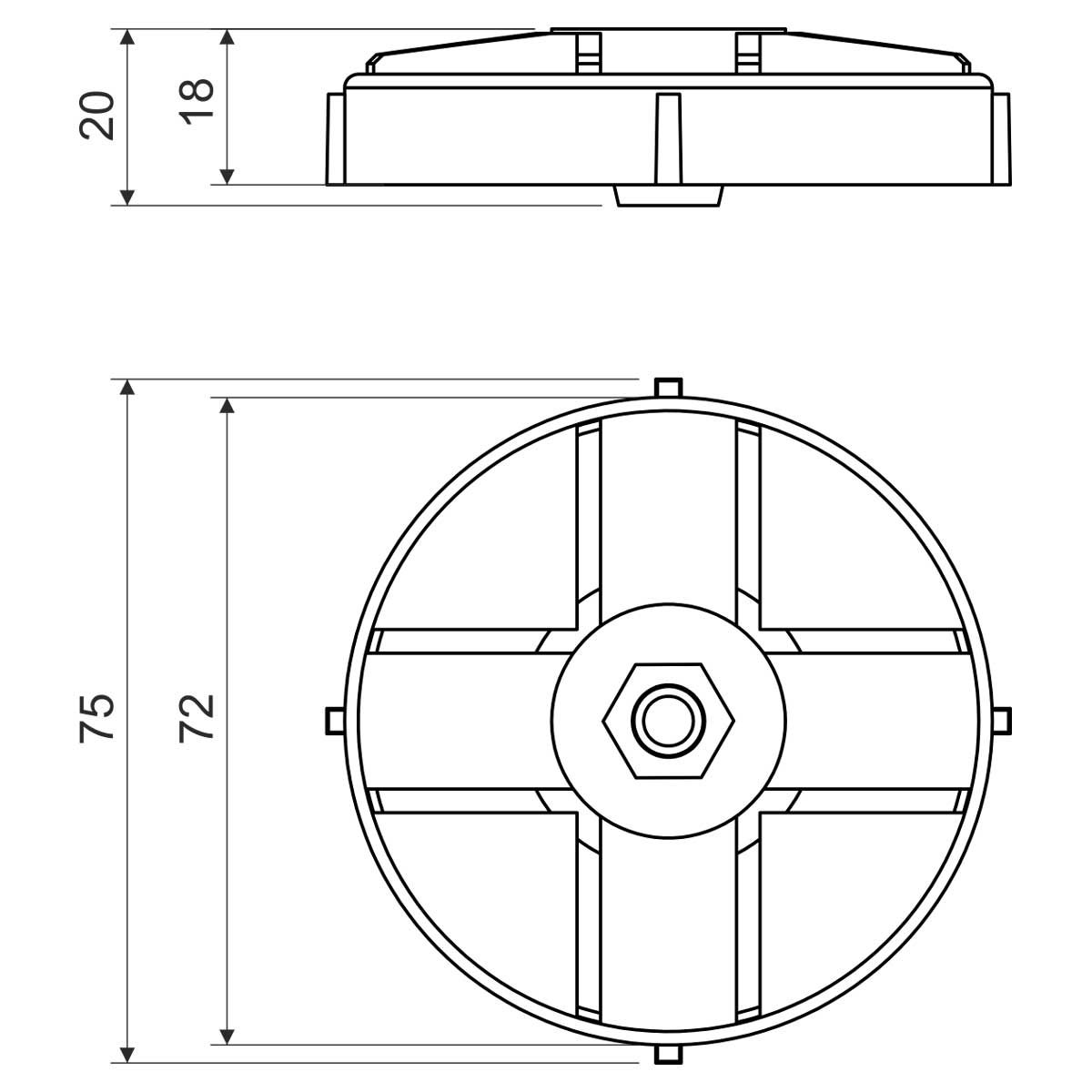

| Prosječni | 75 mm |
| Dubina | 18 mm |
| Klasa reakcije na požar podložnog materijala | A1 |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa | packed in shrink foil |
The bottom is suitable for covering the bodies of boxes KBT-1 and KBT-2. The design of the bottom allows the insertion of KBM nut for screwing the threaded hook eye. The nut must be inserted before pouring concrete over the assembly!
