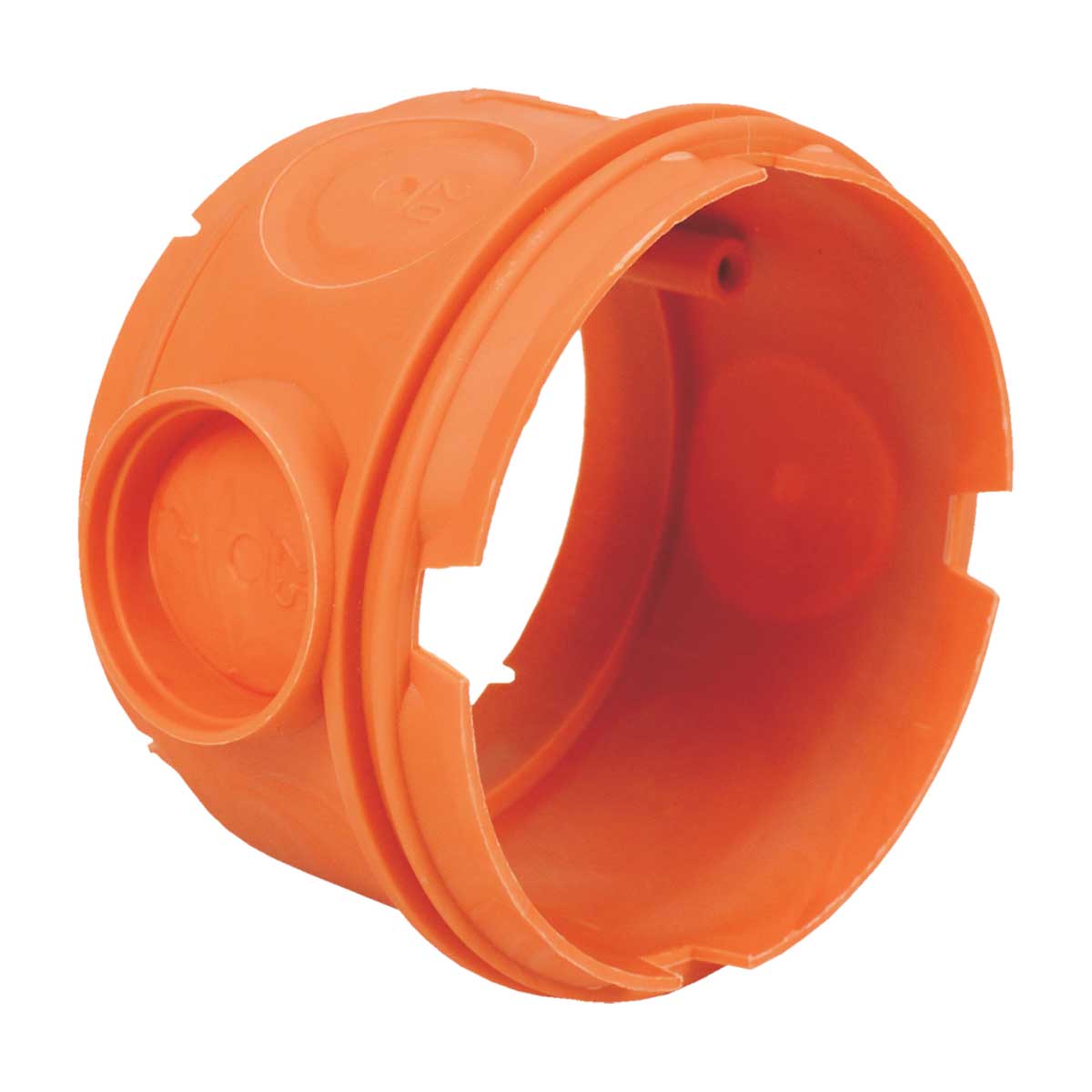

Ilustrativni prikaz
Základní použití na rozteč 80 nebo 88 mm
Příklad montáže krabice na rozteč 80 mm
Montáž krabice na rozteč 71 mm
Příklad použití lustrháku na horizontální bednění
Příklad použití víčka KBV-3
To download 3D models, please login or create an account and request access.
EAN kod8595057632462
Tarifni broj39259080
Težina0,0215 kg/pcs
Bojaorange
MaterijalPP
Bezhalogeni materijalyes
Materijal bez uljayes
Nazivni napon<= 400 V
Otpornost na temperaturu-5 - 60 °C
Kratkotrajna otpornost na temperaturu90 °C
Probna petlja650 °C

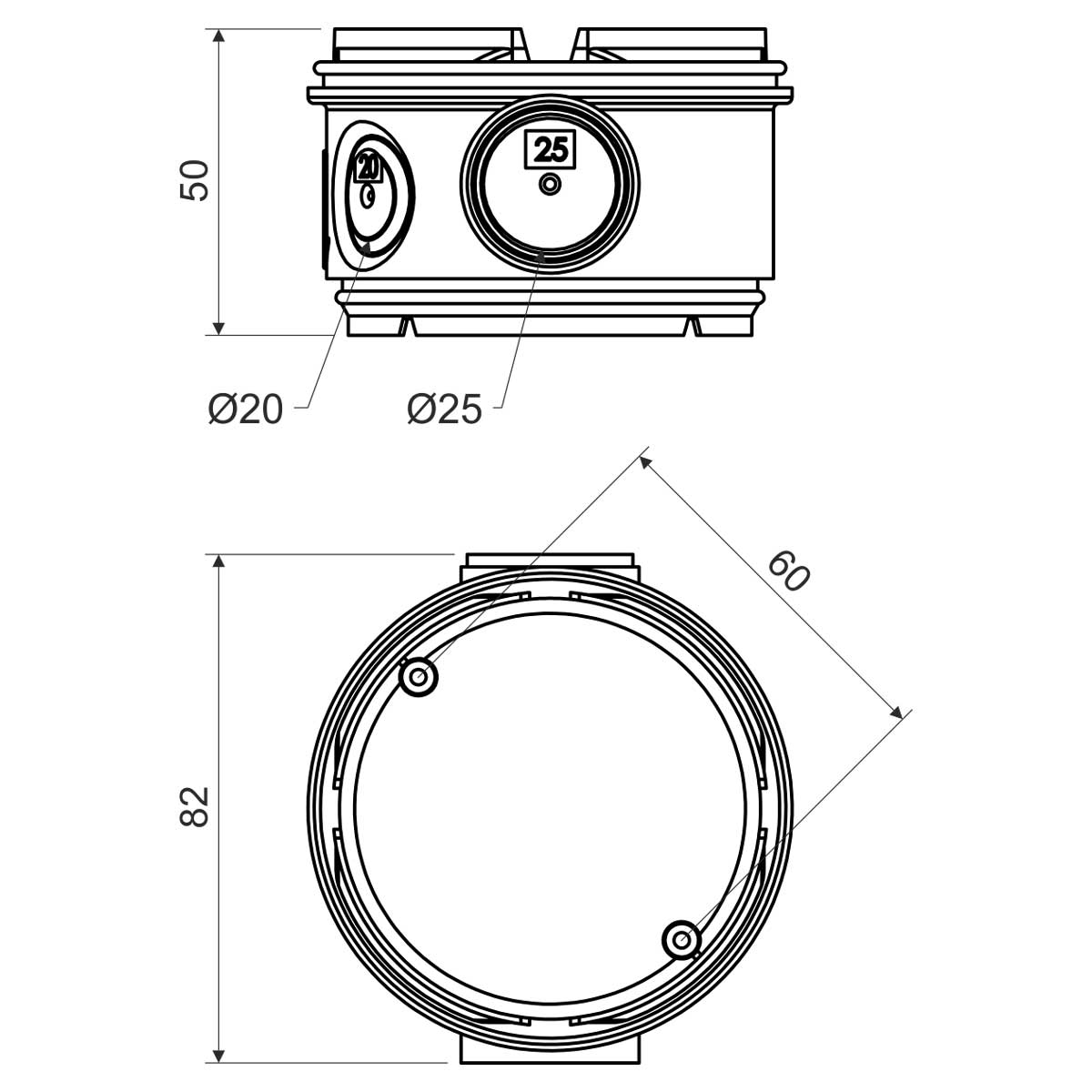

Prosječni78 mm
Dubina50 mm
Klasa reakcije na požar podložnog materijalaA1
Omogućava montažu dvostruke utičniceyes
StandardiČSN EN 60 670-1
Opis paketapacked in shrink foil

The body of the box is provided with a fixture for connection to the lid KBV and bottom KBS. The perimeter of the box body contains pre-marked holes to drill inlets for pipes of EN 20 and 25, inlets can easily be made in the desired locations using a drill and the respective drilling blade. The box can be fitted with terminal plate S-66, we recommend its mounting to the box body before assembly. For the double-socket the KBV-1 lid is necessary.
