Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
SU_EN
| EAN kod | 8595057658608 |
| Tarifni broj | 73089059 |
| Težina | 0,44 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1 mm |
| Količina vijaka za spajanje | 8 |

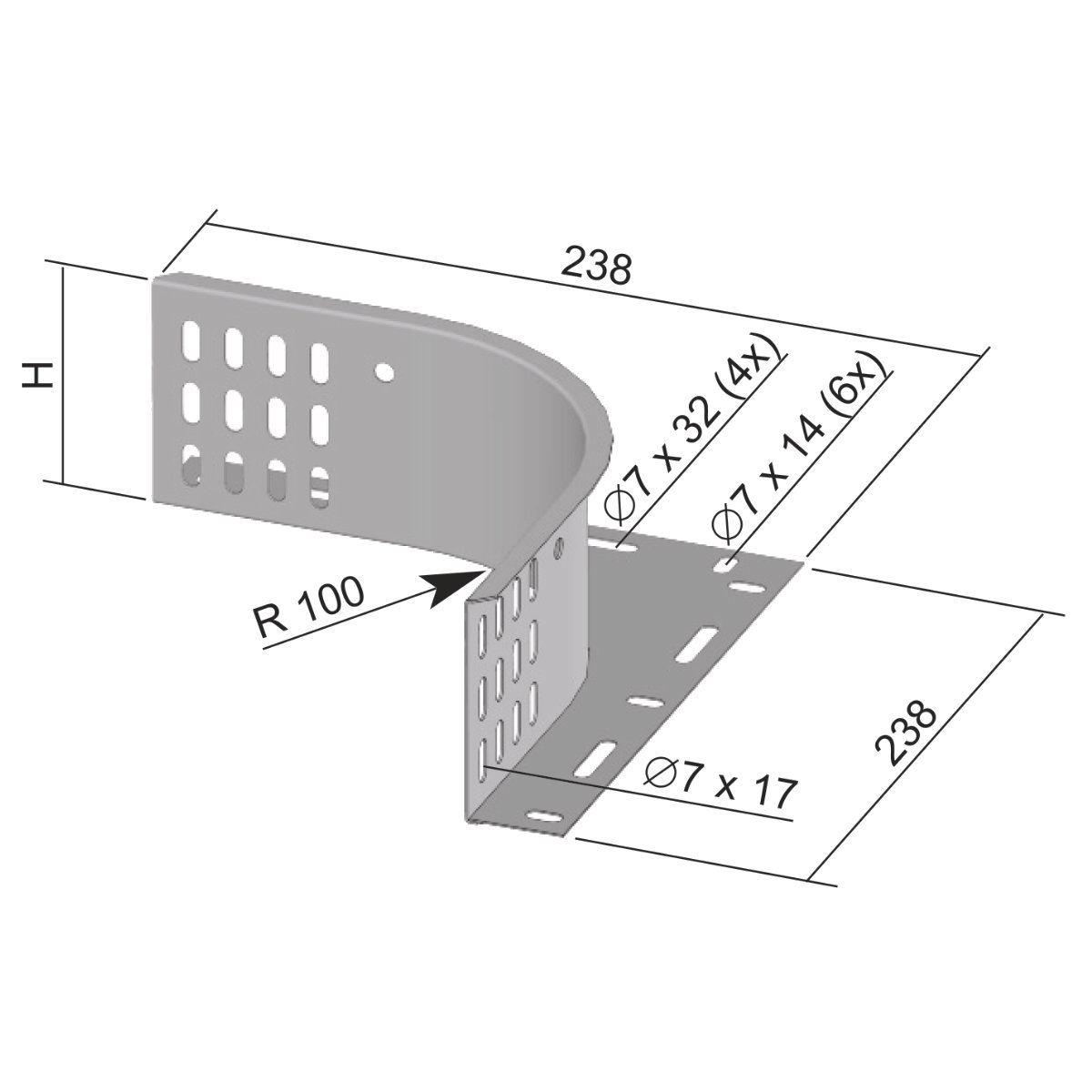

| Dimenzija H | 90 mm |
| Za visinu kabelske police | 85 mm |

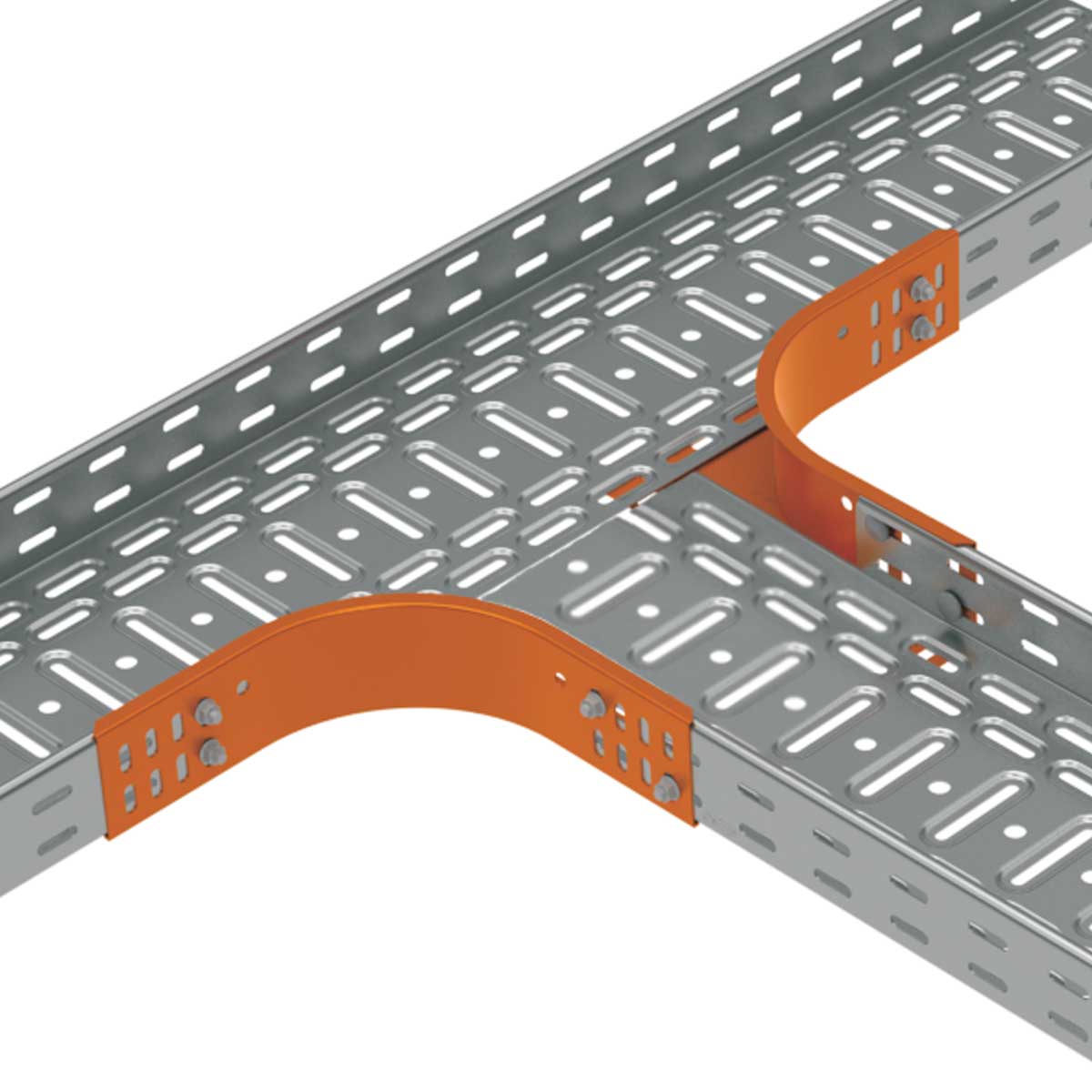

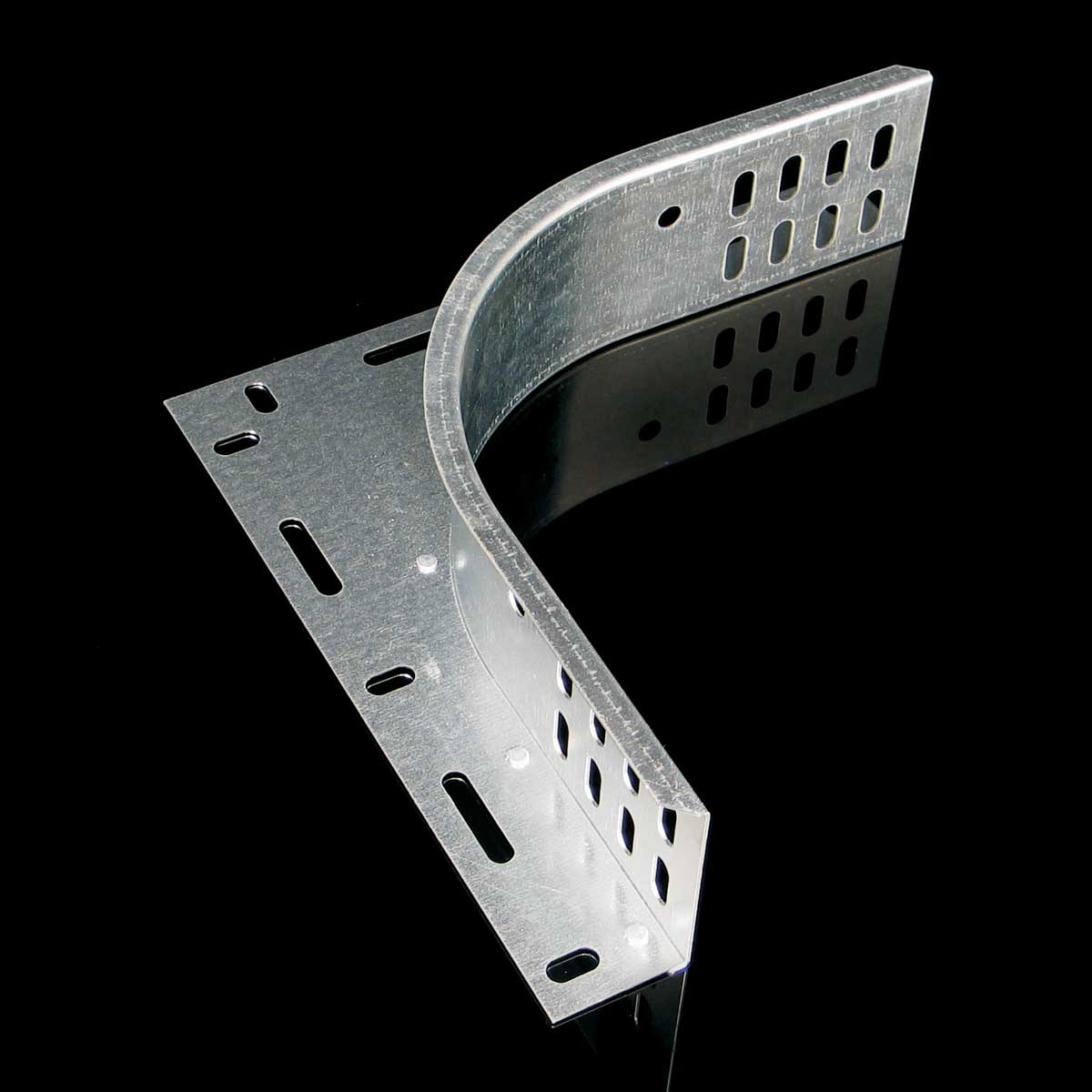

It is used for making an additional branching use an unequal T-piece or cross. Advantage of this using is availability to choose bending tray with any width. The reduction piece is delivered in singles, must be used 2 pieces for installation. The connection is performed using the bolts NSM 6X10. The cover of a horizontal VOH branch can be used to cover routes with a reduction piece.
