Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
SK_EN
| EAN kod | 8595568926012 |
| Tarifni broj | 73269098 |
| Težina | 0,21 kg/pcs |
| Površinska obrada | Non electrolytic plating Geomet |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1 mm |
| Količina vijaka za spajanje | 4 |

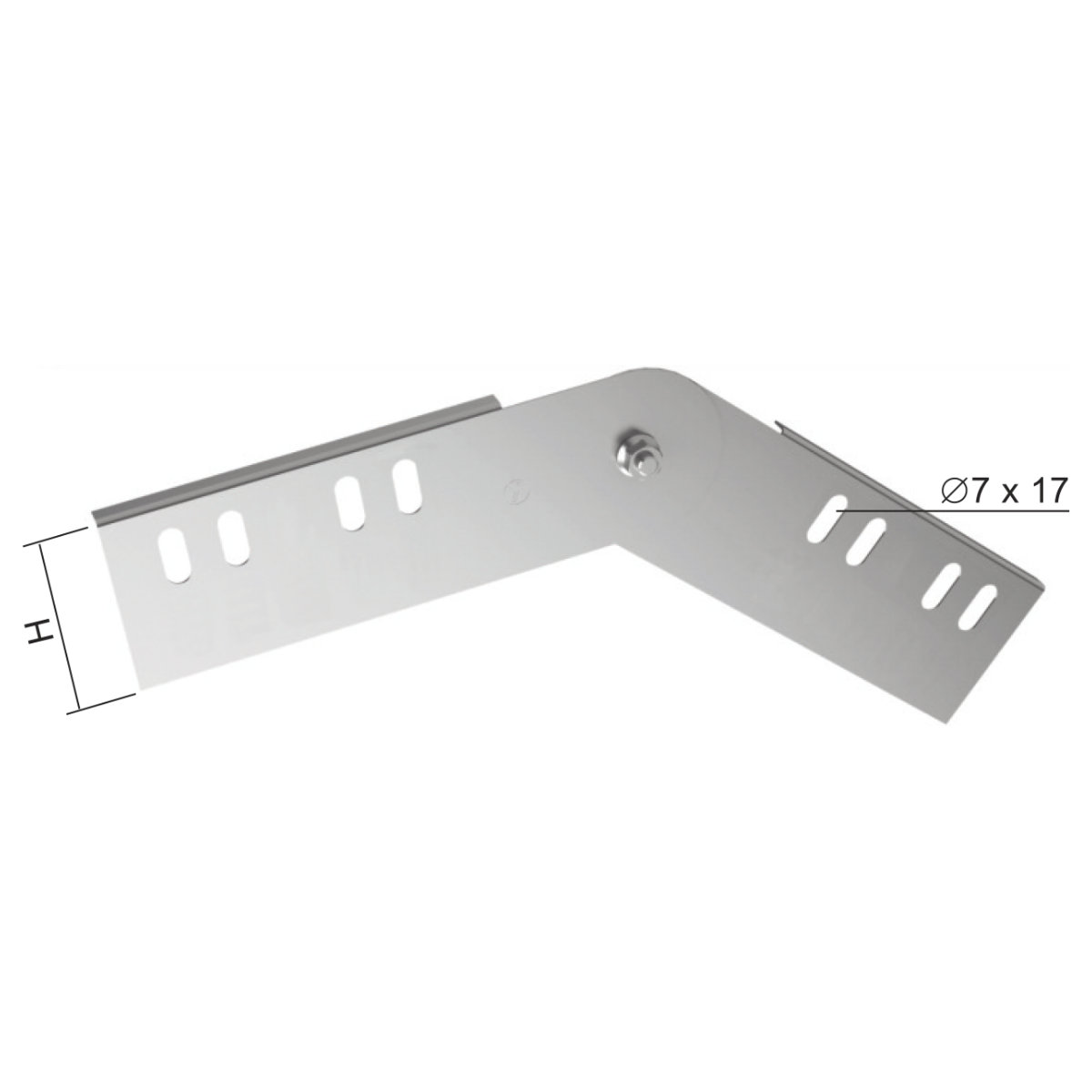

| Dimenzija H | 43 mm |
| Za visinu kabelske police | 50 mm |

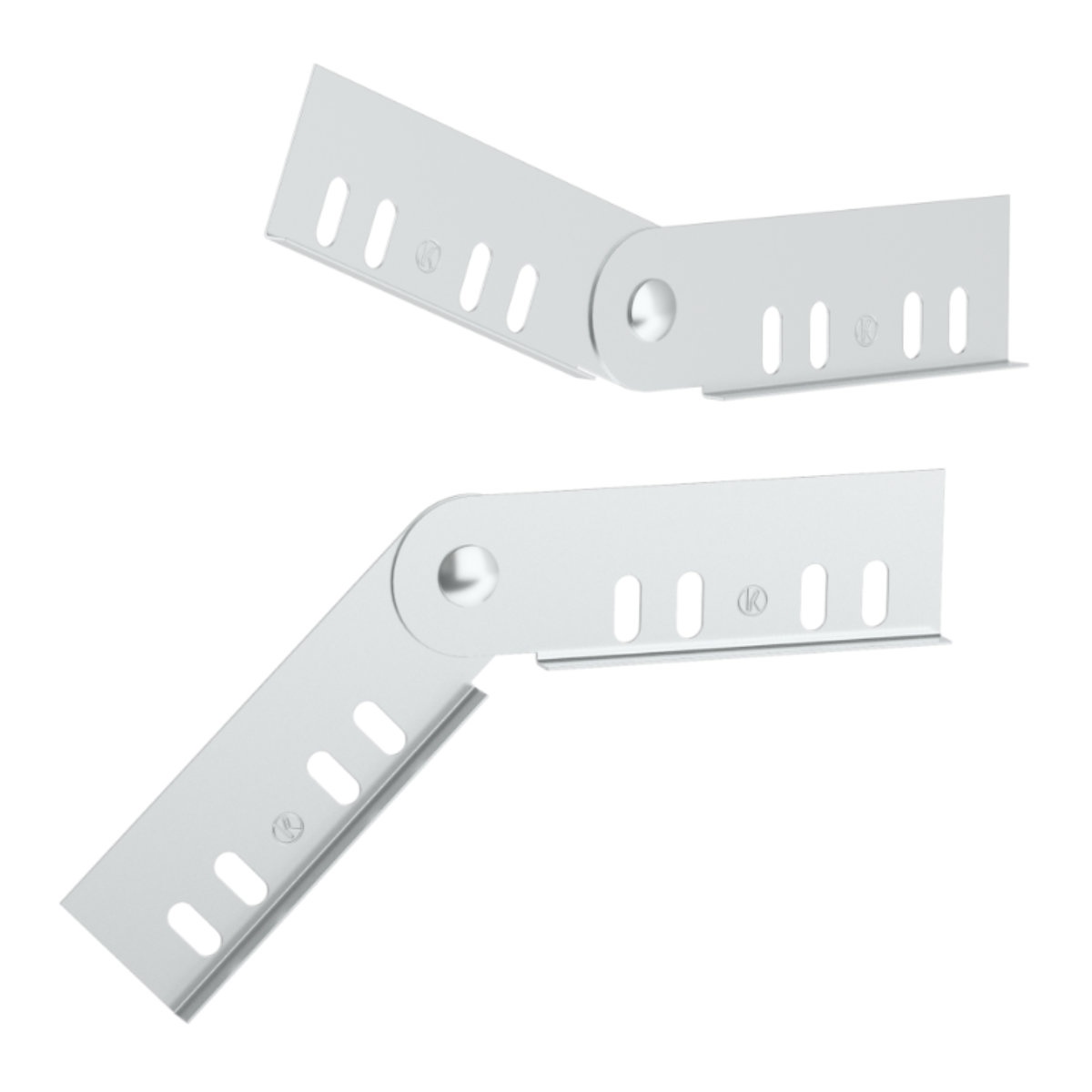

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
