Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
SK_EN
| EAN kod | 8595568926036 |
| Tarifni broj | 73269098 |
| Težina | 0,2400 kg/kom |
| Površinska obrada | Non electrolytic plating Geomet |
| Otpornost na temperaturu | -50 - +150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,2 mm |
| Količina vijaka za spajanje | 8 |

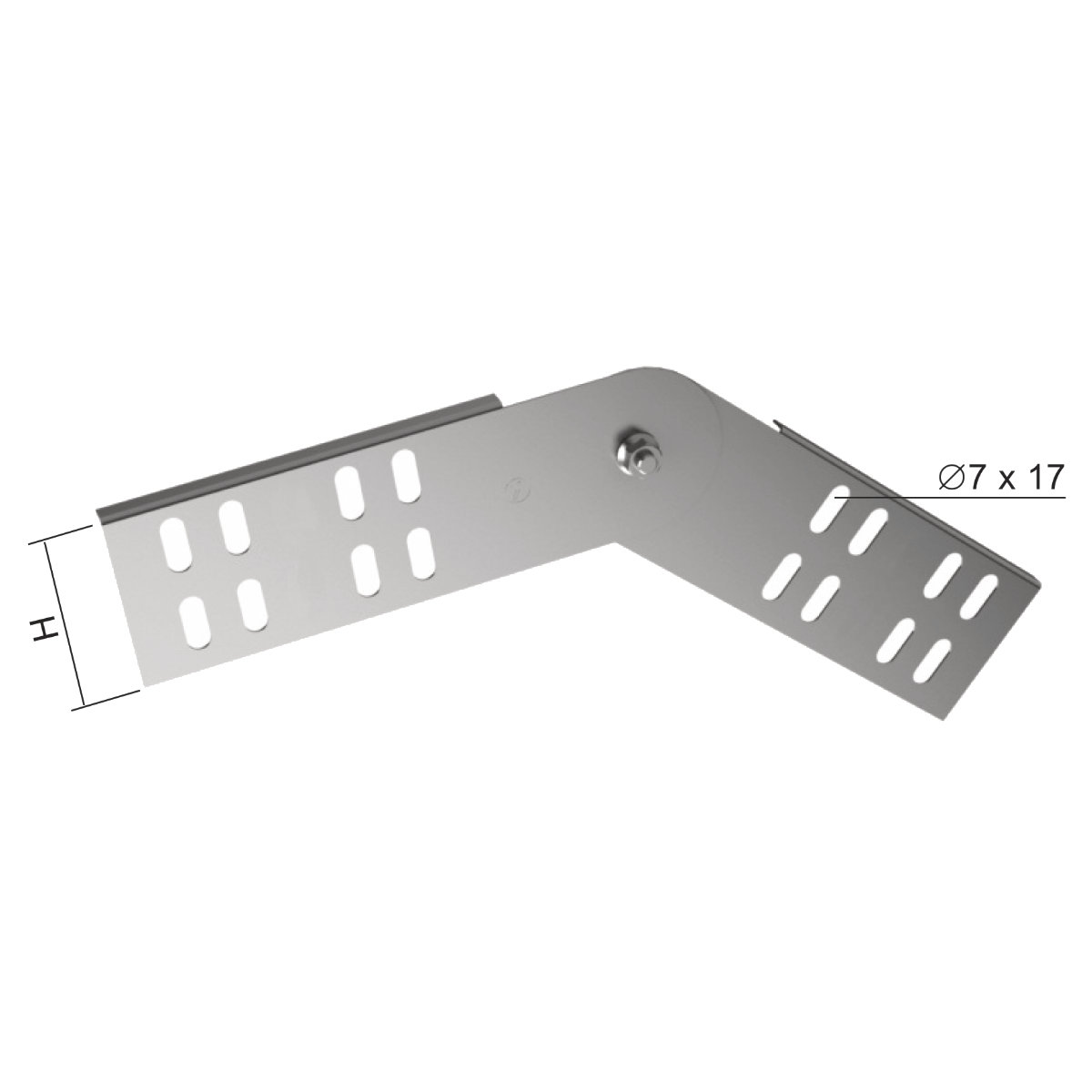

| Dimenzija H | 78 mm |
| Za visinu kabelske police | 85 mm |

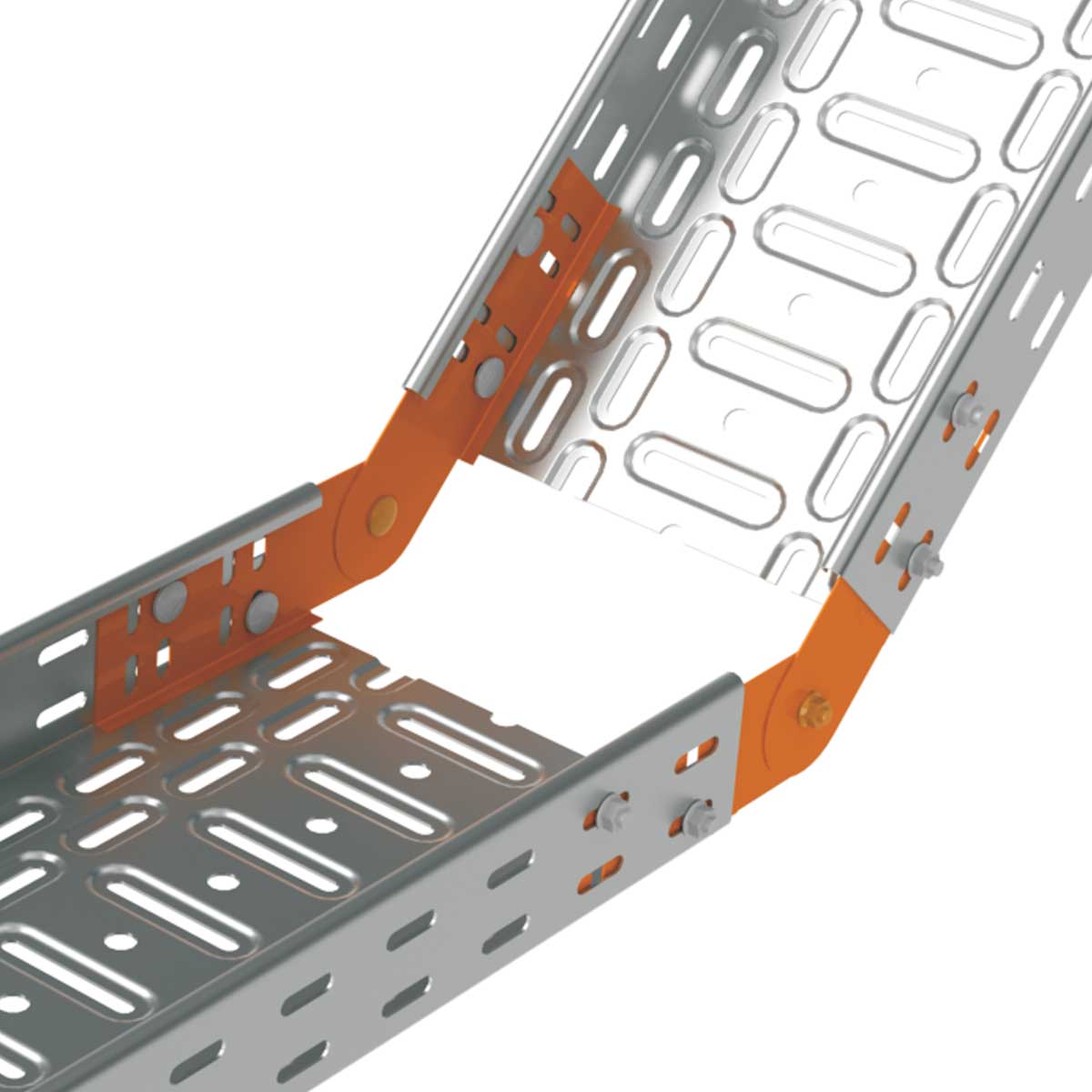

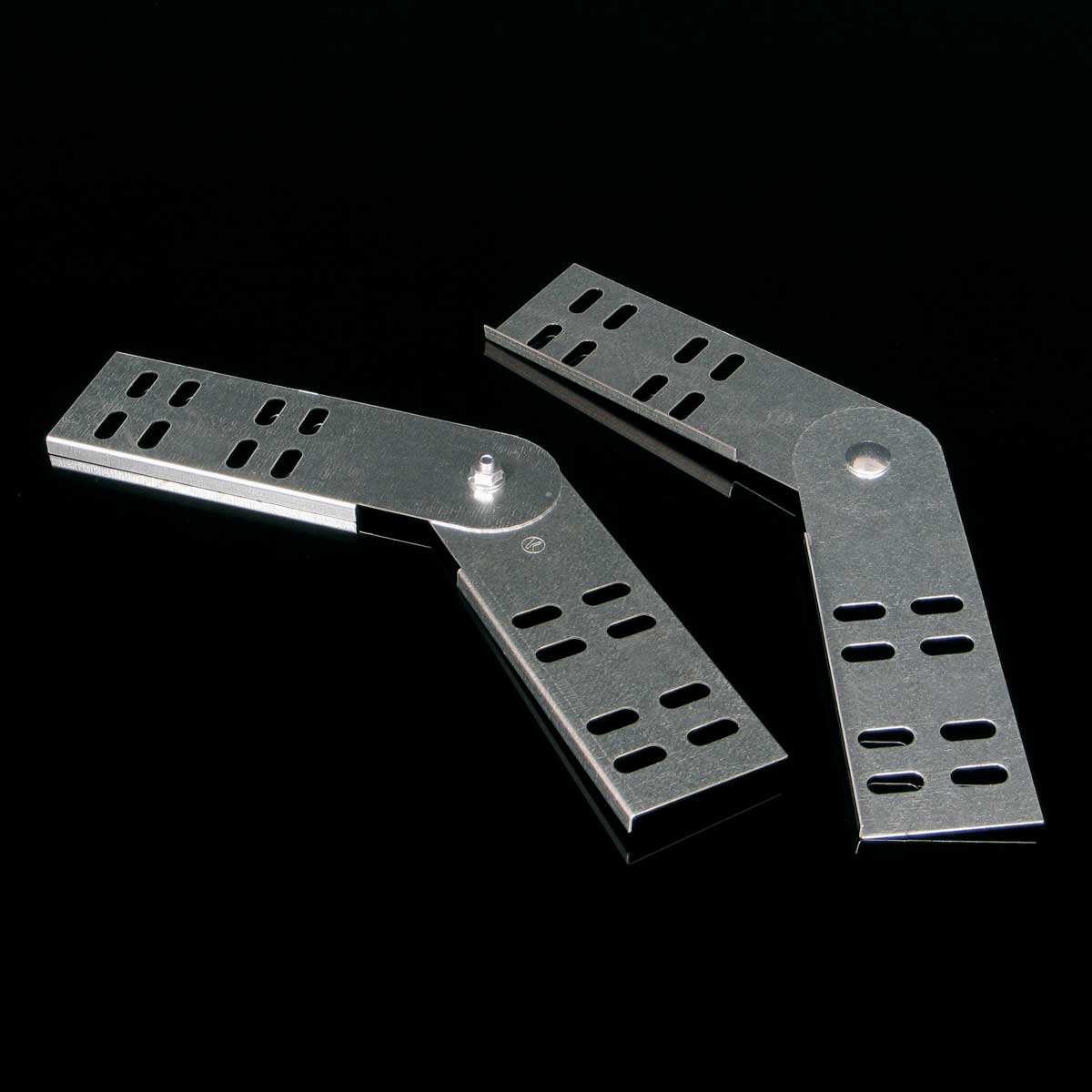

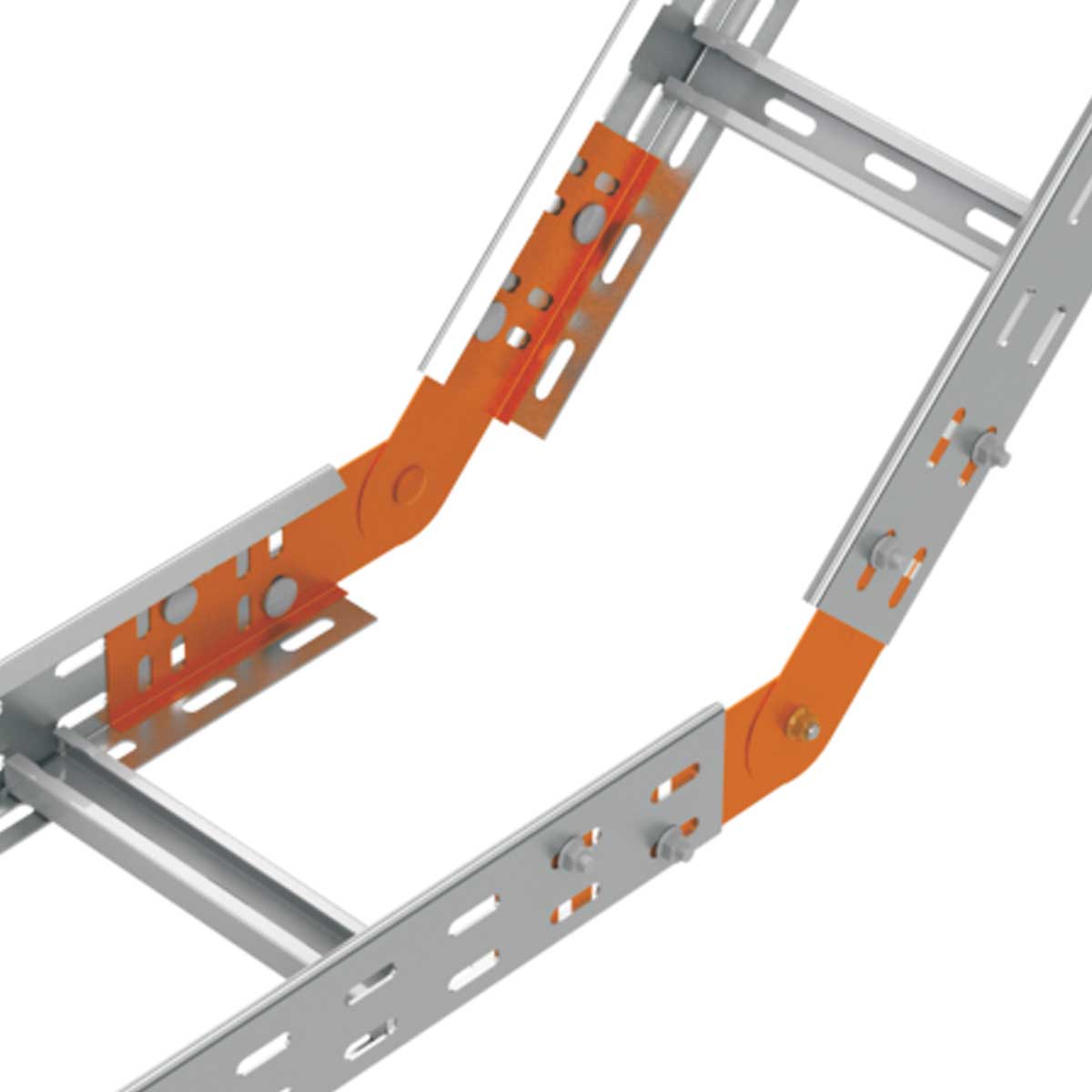

For the connection of the hinged joint to the tray there are used the bolts NSM 6X10. The joint is delivered in 1 piece per packing, 2 pcs are needed to make a bend of the line.
