Závěs

Prilozi i certifikati

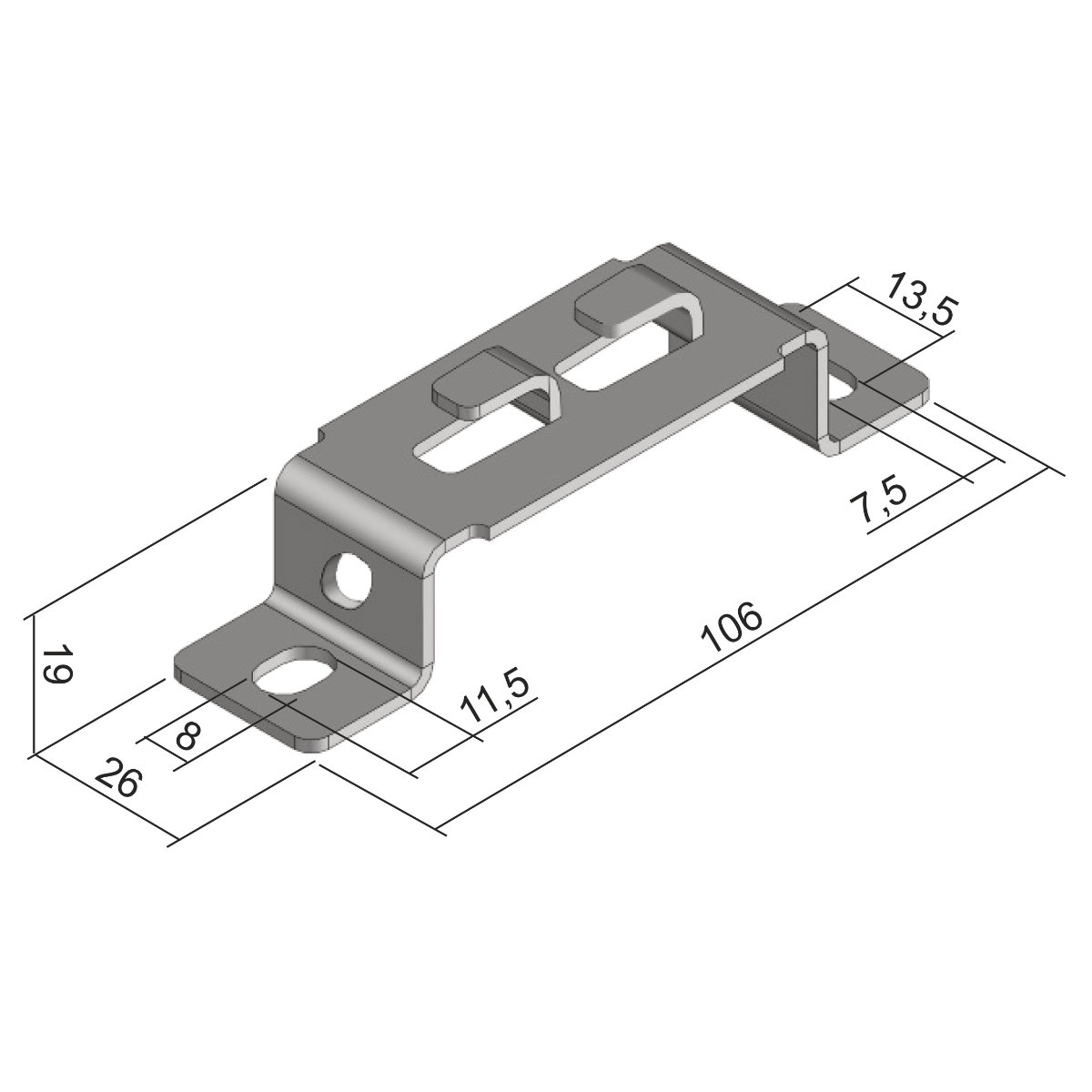

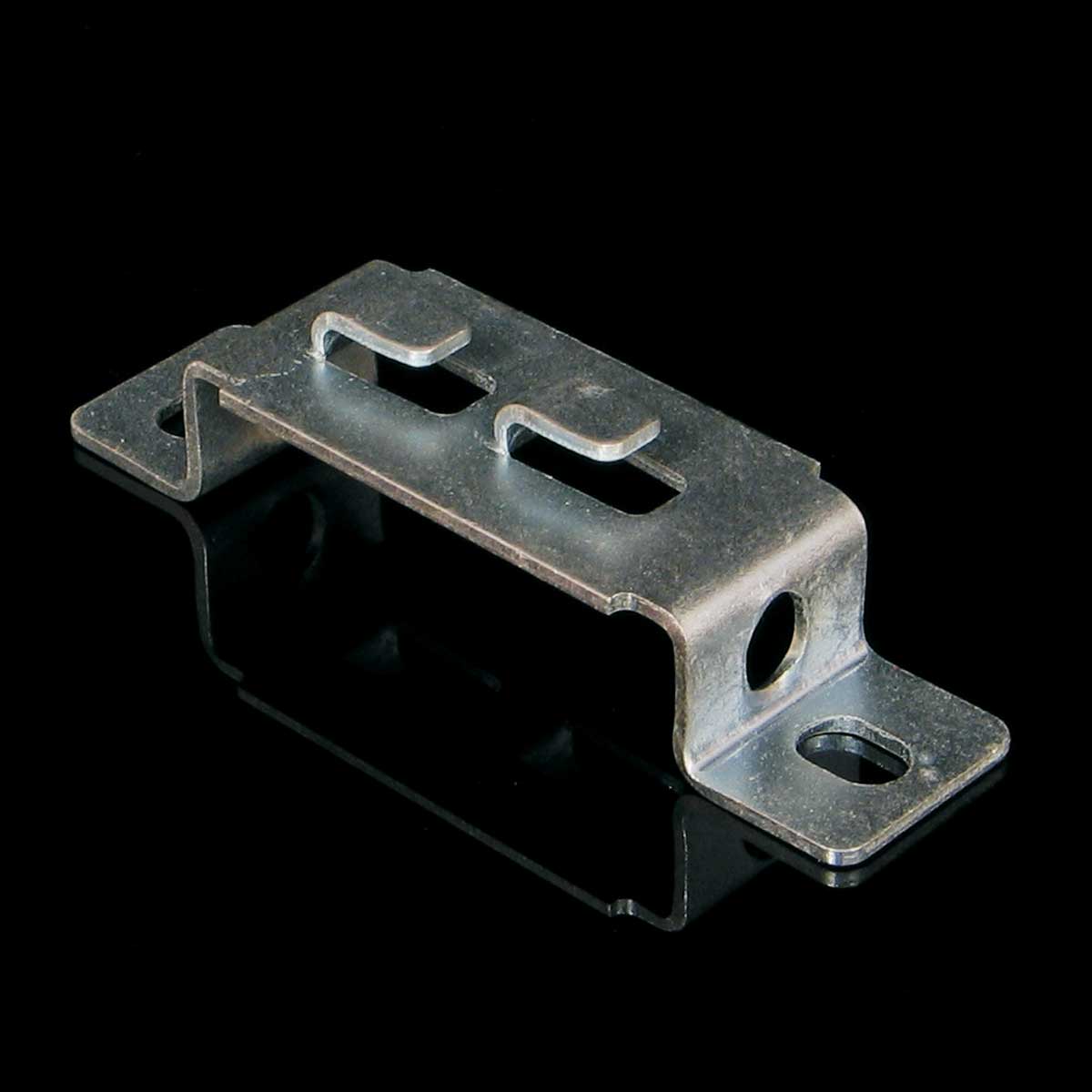

Ilustrativni prikaz

To download 3D models, please login or create an account and request access.

tehnički list
DZZ.B_EN

certifikat
Declaration RoHS
Declaration REACH

certifikat održavanje funkcije u požaru
Conformity declaration DIN
Certification report DIN
Certificate DIN
Izjava o sukladnosti DIN

EAN kod	8595568902627
Tarifni broj	73269098
Težina	0,05 kg/pcs
Površinska obrada	Hot Dip Galvanized
Funkcionalnost u požaru	P90-R, E90, PS90
Standardi	ČSN EN 61537
Standardi otpornosti na vatru	ČSN 73 0895, DIN 4102-12, STN 92 0205
Maks. opterećenje za vatrootpornost	5 - 10 kg

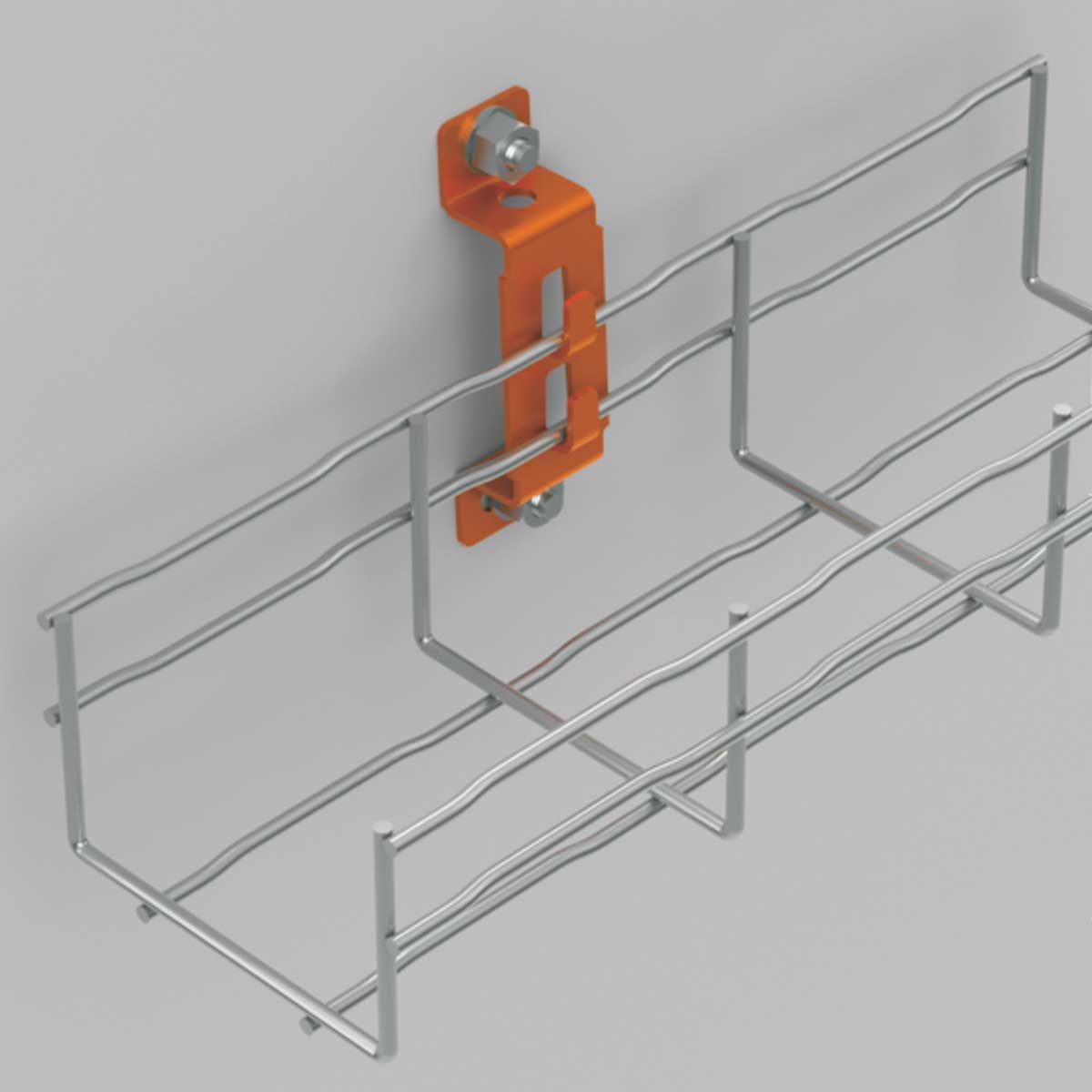

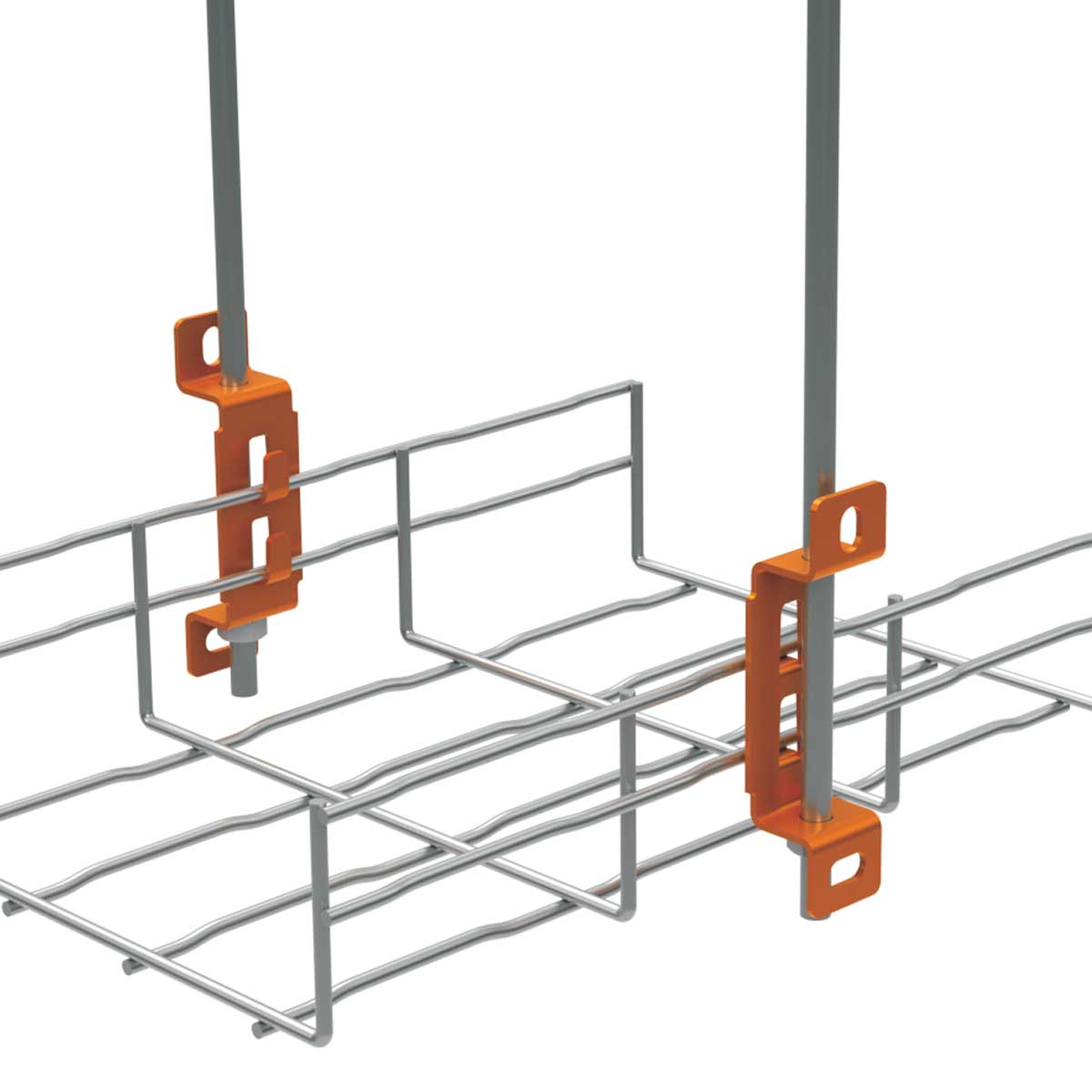

The hanger can be used for the fastening of the wire tray to a wall or for hanging from the ceiling together with a threaded rod Ø 8 mm. The hanging by means of 2 threaded bars from the ceiling is intended for the trays of the side height of 60 and 110 mm and of the width of max. 200 mm (it is possible to use the suspension also for trays DZ 60X300 – maximum load capacity of the tray is 10kg/m). The fixation to the wall there is possible just for trays of DZ 60X60 and DZ 60X100. The hinge is attached using KPO 6 anchors (2 pcs).

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
