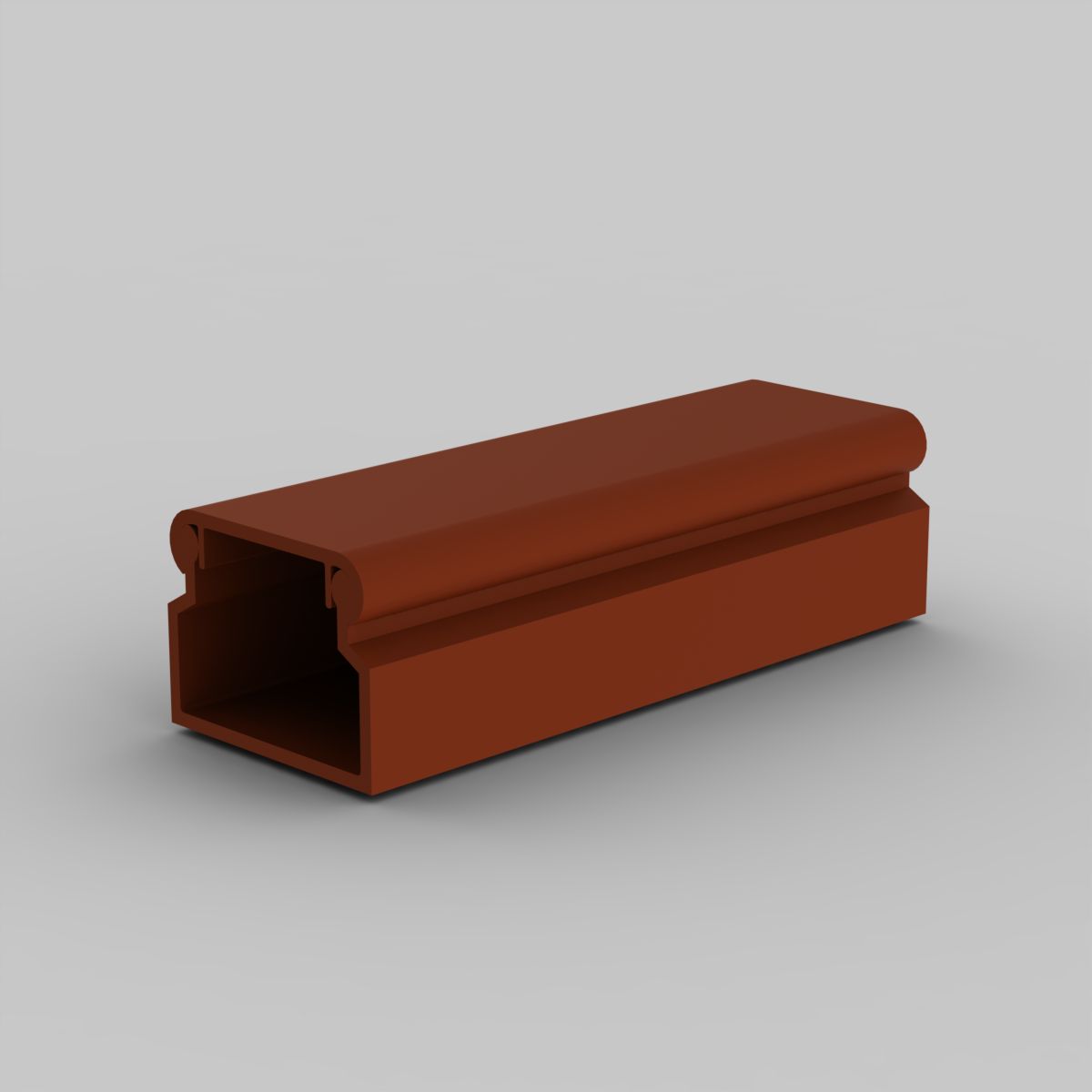

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LV18X13_EN
| EAN kod | 8595568903075 |
| Tarifni broj | 39259020 |
| Težina | 0,1050 kg/m |
| Boja | dark wood |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 0,5 J |
| Širina | 17,7 mm |
| Visina | 13,7 mm |
| Dužina | 2 m |
| Unutarnje područje | 145 mm2 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Upotreba They are resistant to aggressive and chemical environment. They are not resistant to UV rays and they are not suitable for the outside environment. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
Standard shape. Designed for wall or ceiling mounting. Double lock on lid increasing the trunking’s rigidity and ensuring stronger cover fixation.
