LV40X15_EN
| EAN kod | 8595057609433 |
| Tarifni broj | 39259020 |
| Težina | 0,2300 kg/m |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 0,5 J |
| Antibakterijske | yes |

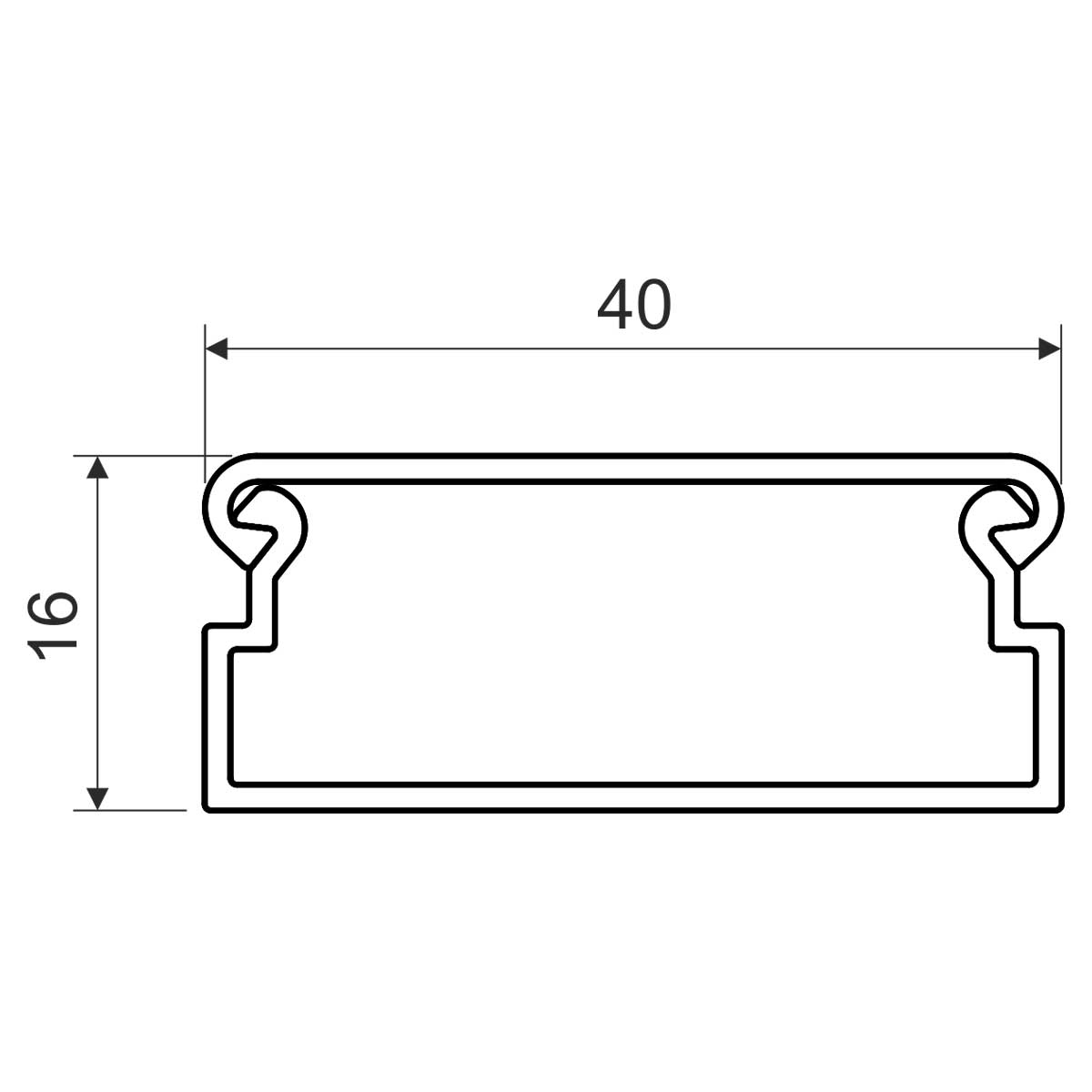

| Širina | 40 mm |
| Visina | 16 mm |
| Dužina | 2 m |
| Unutarnje područje | 540 mm2 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Upotreba they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
| Sa zaštitnom folijom | yes |
Standard shape. Designed for wall or ceiling mounting. Instrument carrier PN 40X15 for installation of classic instruments.
