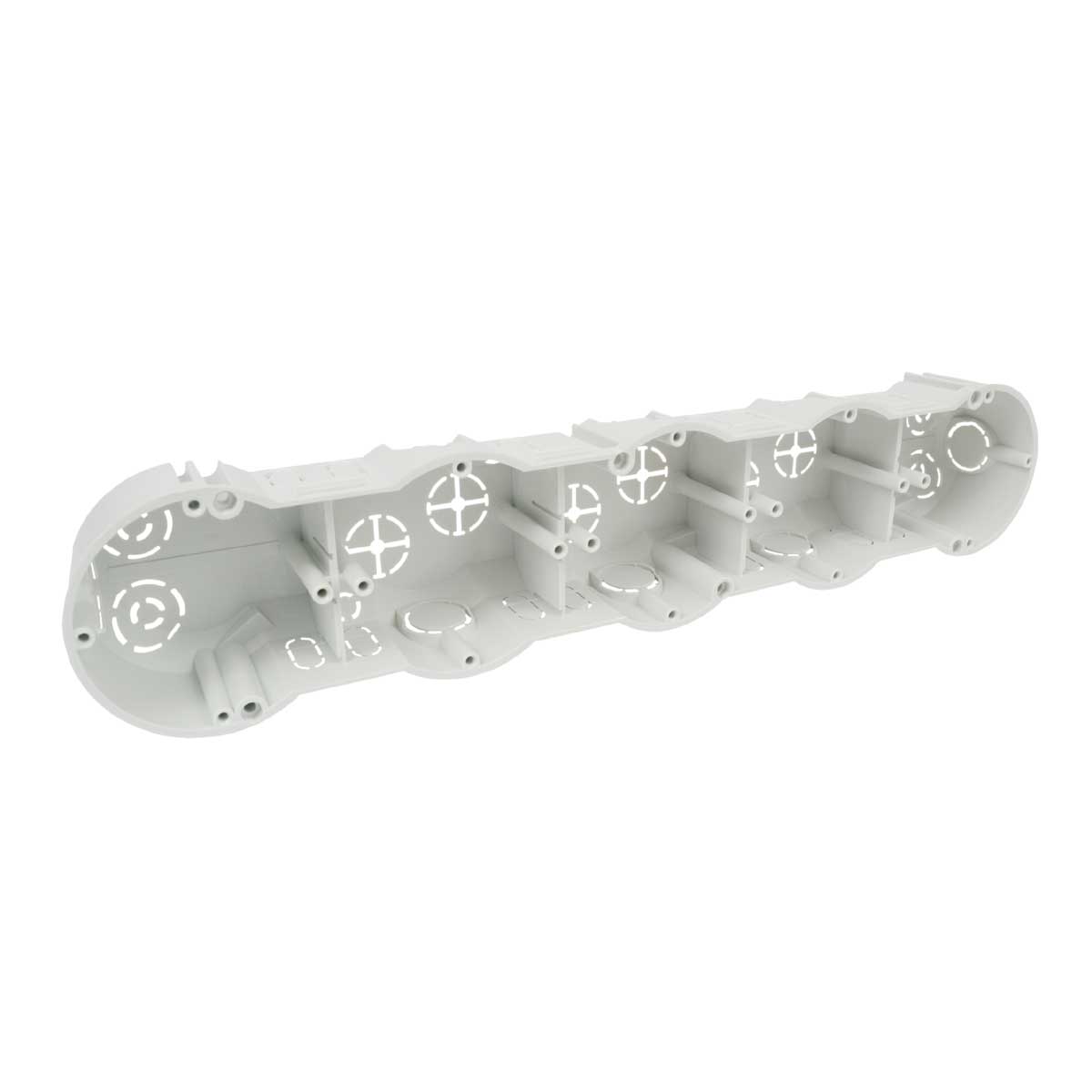

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KP64_5_EN
| EAN kod | 8595057657212 |
| Tarifni broj | 39259080 |
| Težina | 0,1807 kg/kom |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - +60 °C |
| Probna petlja | 850 °C |

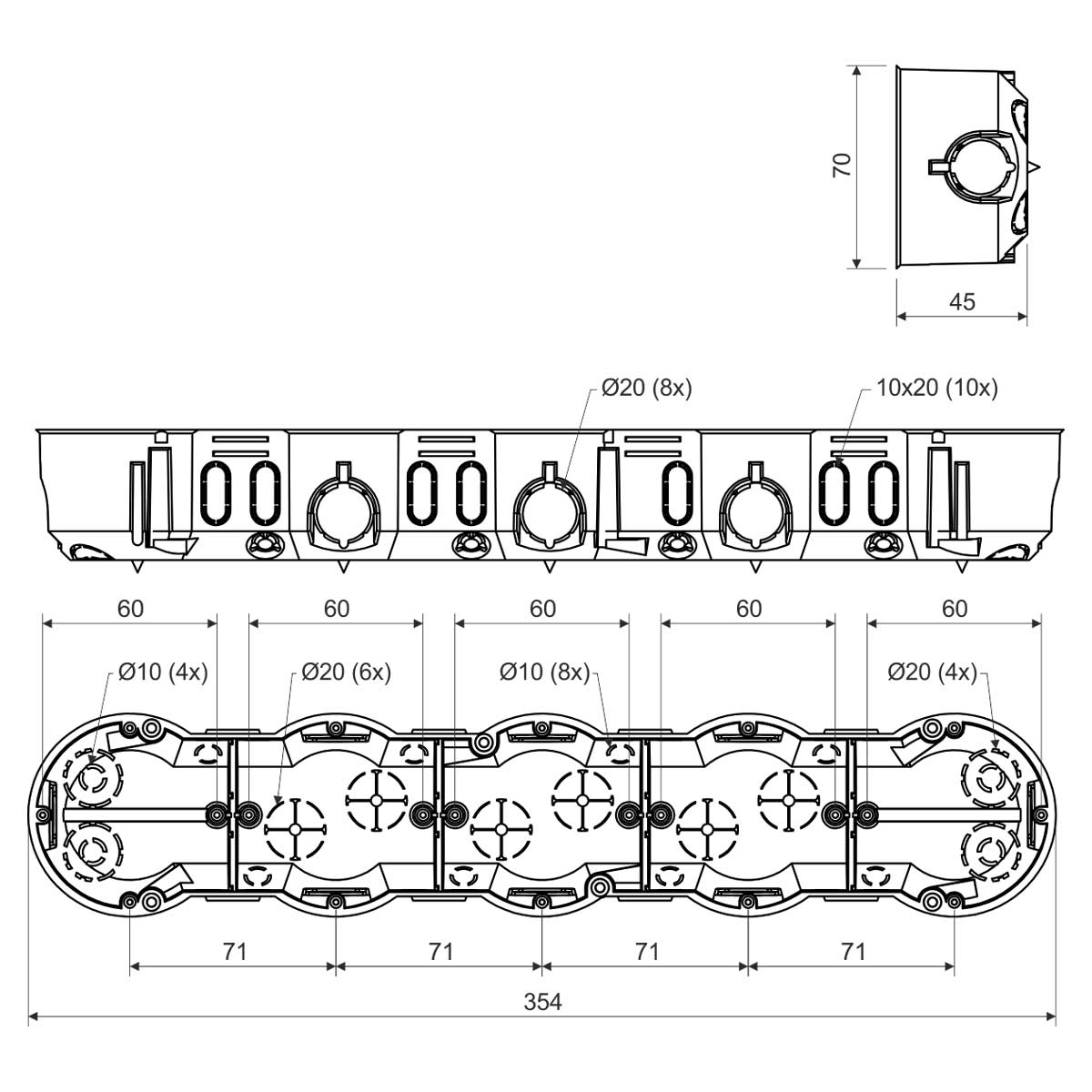

| Širina | 354 mm |
| Visina | 71 mm |
| Dubina | 45 mm |
| Promjer rupa (bušenih) | 80 mm |
| Klasa reakcije na požar podložnog materijala | A1 - D |
| Prostor kada spojimo dvije kutije | 71 mm |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa two boxes wrapped in shrink foil and marked with label, device screws for mounting in plasterboard including in a bag, packing including in a cardboard | |
For modern installations in combined frames. Significant rigidity makes device installation easier.
