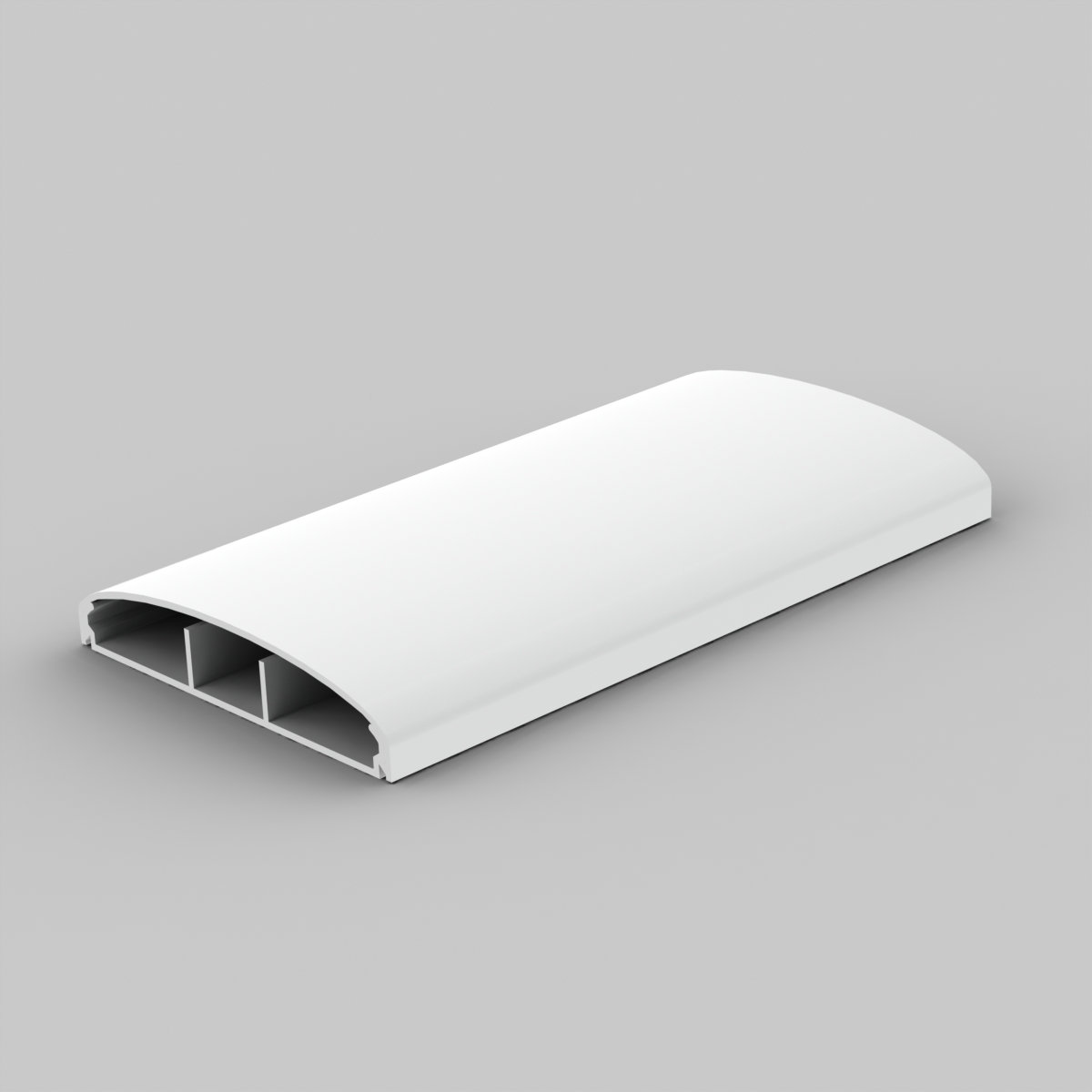

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LE100_EN
| EAN kod | 8595057621008 |
| Tarifni broj | 39259020 |
| Težina | 0,5850 kg/m |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 1 J |
| Antibakterijske | yes |

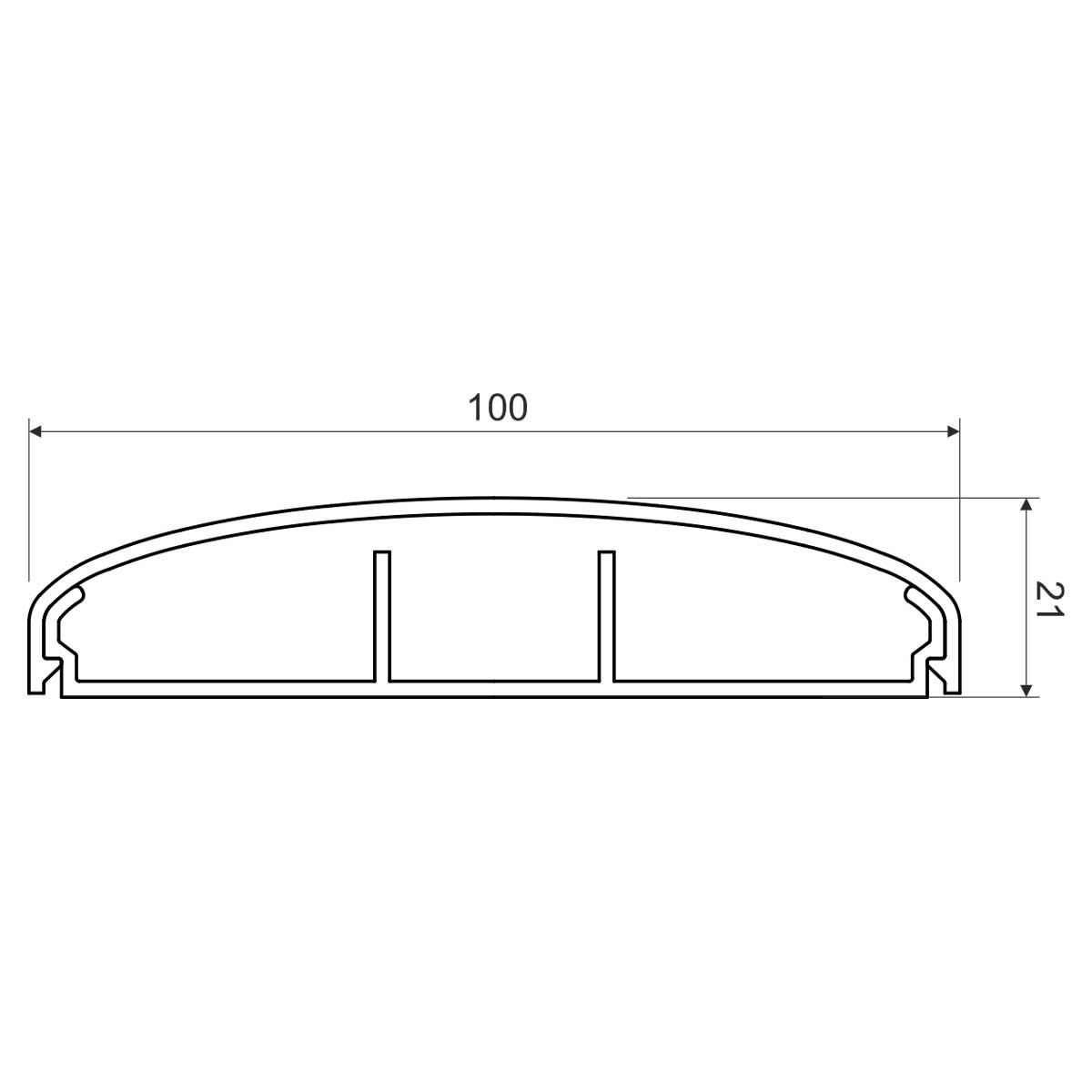

| Širina | 100 mm |
| Visina | 21 mm |
| Dužina | 2 m |
| Unutarnje područje | 380, 340, 380 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Omogućava montažu dvostruke utičnice | yes |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
Elegant shape. Designed for wall mounting. Not to be mounted on the floor or to be loaded by being stepped on, etc. Possibility to insert instrument carrier.
