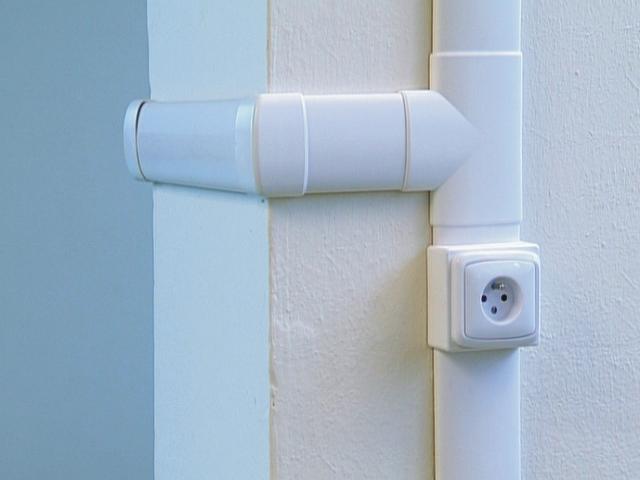

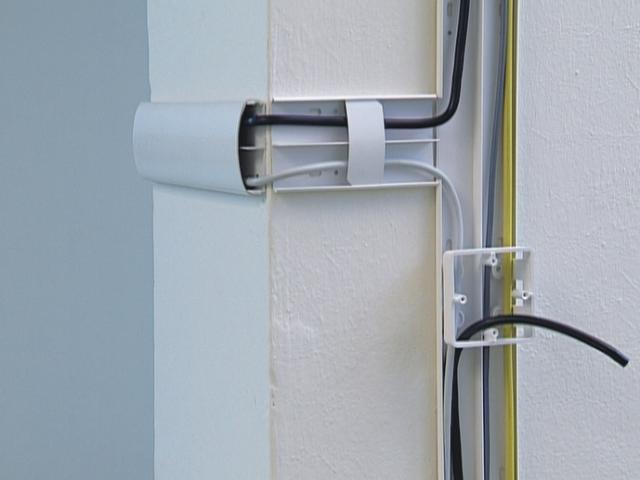

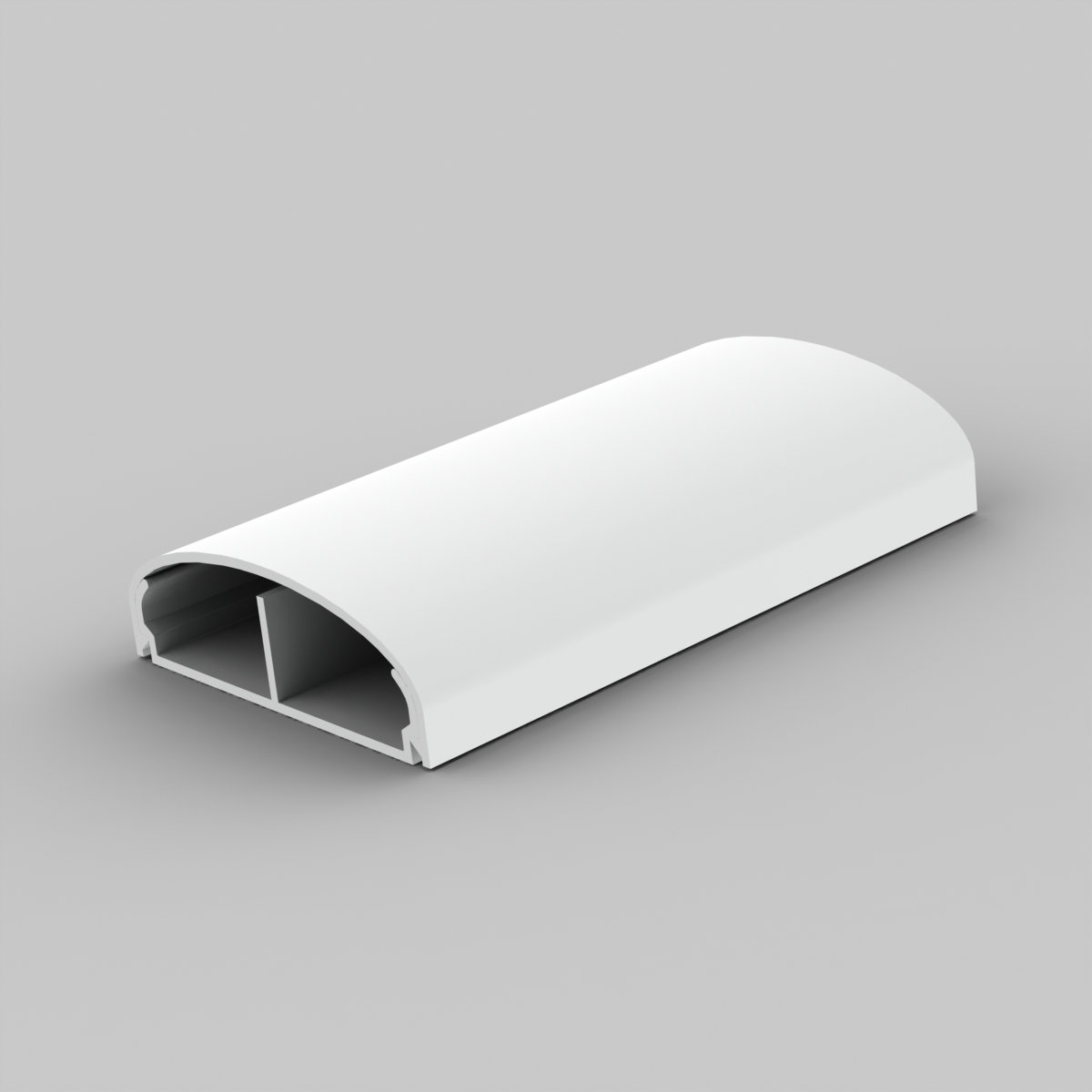

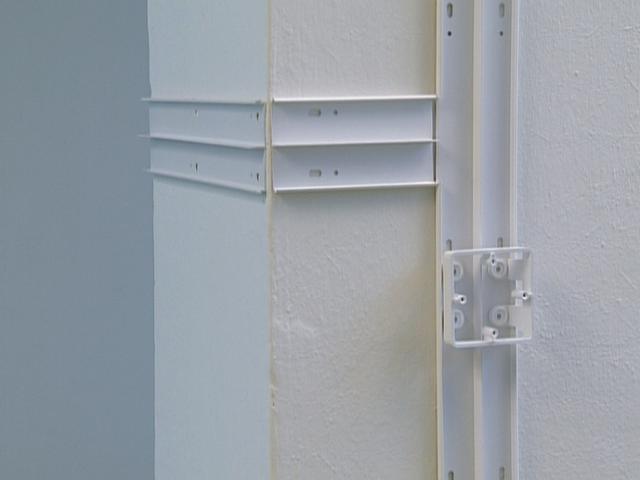

Ilustrativni prikaz
LE60_EN
| EAN kod | 8595057620889 |
| Tarifni broj | 39259020 |
| Težina | 0,39 kg/m |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 1 J |

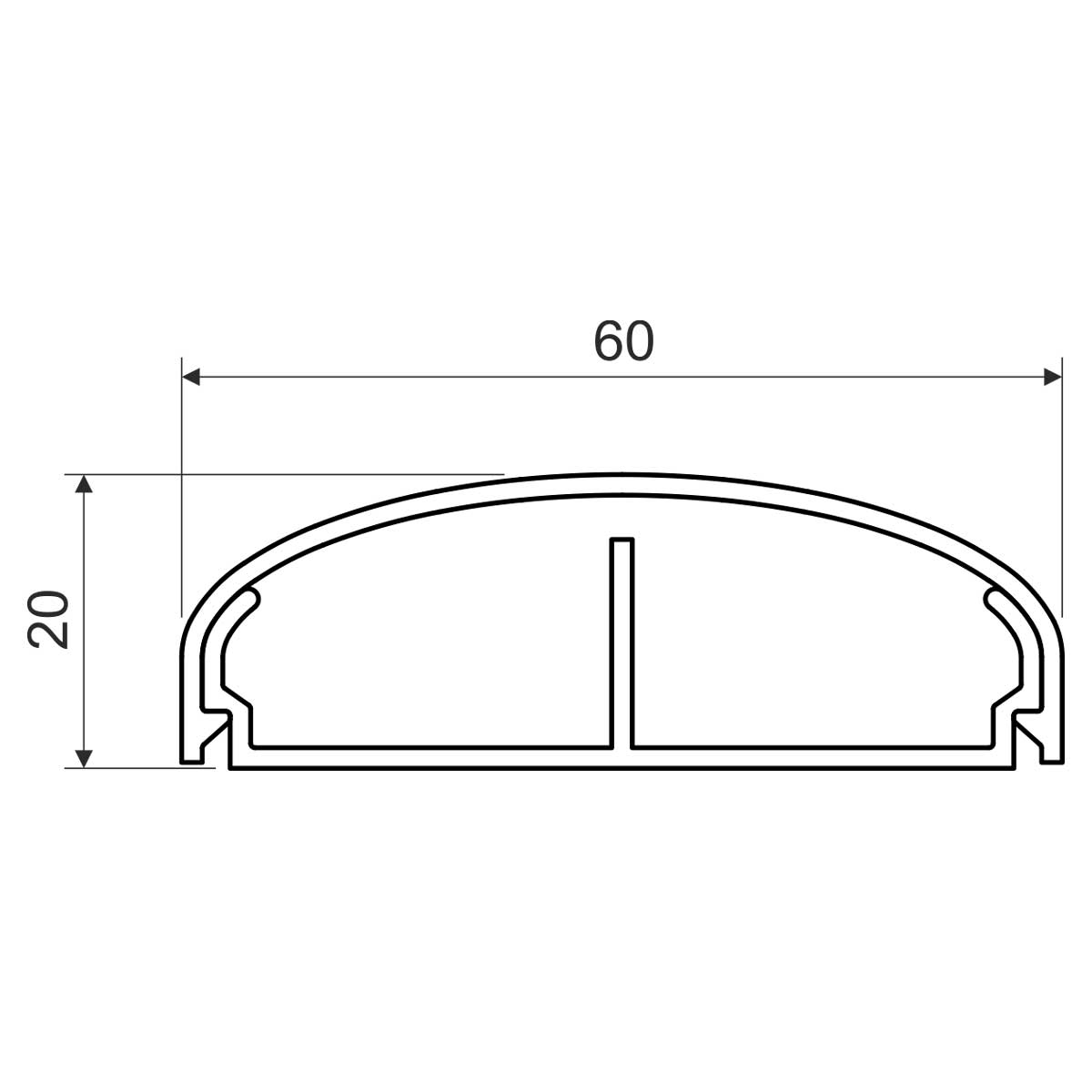

| Širina | 60 mm |
| Visina | 20 mm |
| Dužina | 2 m |
| Unutarnje područje | 380, 380 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar | A1 - F |
| Mogućnost povezivanja 2 kutije u nizu | yes |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
Elegant shape. Designed for wall mounting. Not to be mounted on the floor or to be loaded by being stepped on, etc. Possibility to insert instrument carrier.
