EAN kod8595568942302
Tarifni broj85369010
Težina2,8707 kg/kom
Probna petlja650 °C
Mehanička zaštitaIK07
Širina223 mm
Visina250 mm
Dubina75 mm
Funkcionalnost u požaruP90-R, E90, PS90
Vrste zaštiteIP40
Standardi otpornosti na vatruČSN 73 0895, DIN 4102-12, STN 92 0205

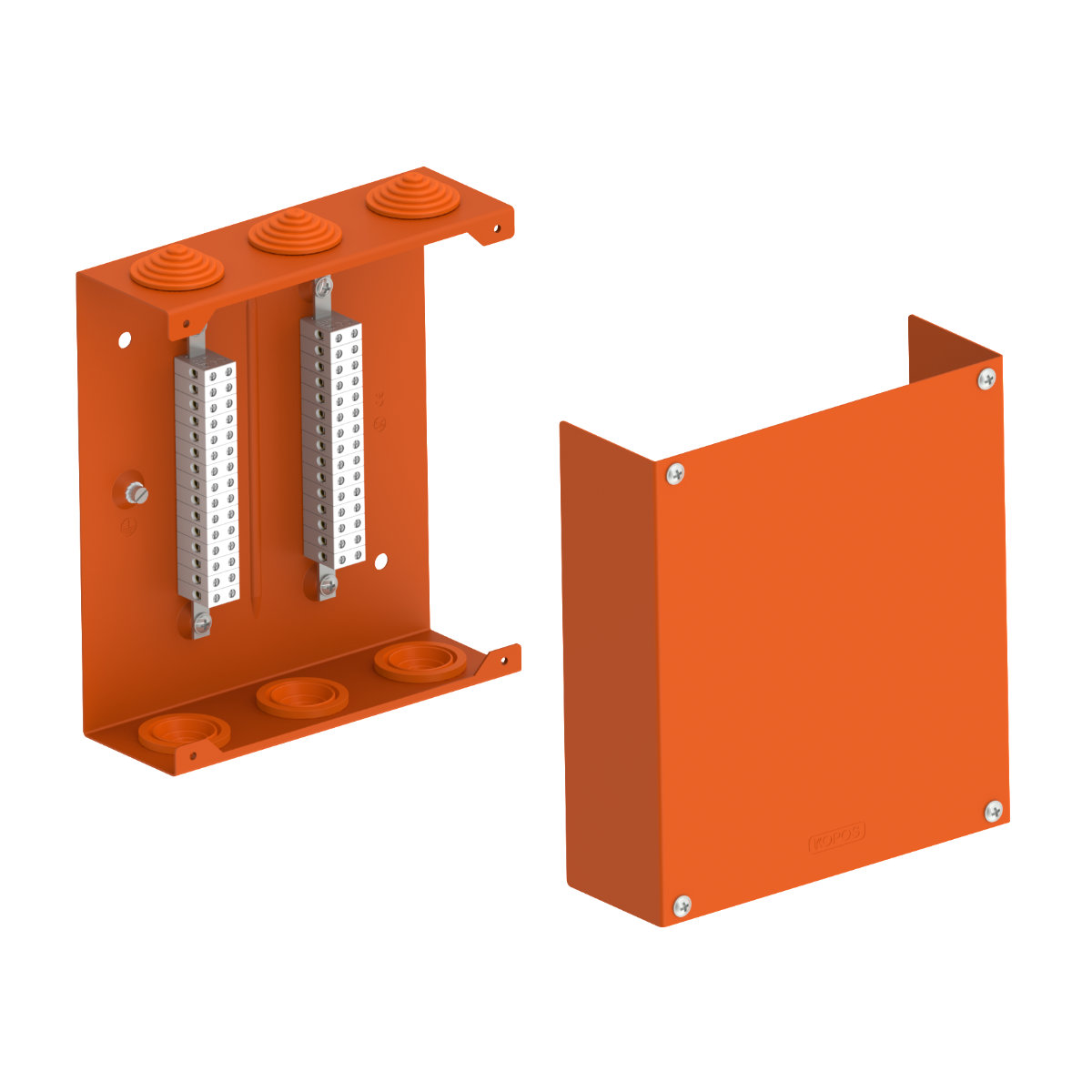

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with data cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
