EAN kod | 8595568942296 |
Tarifni broj | 85369010 |
Težina | 2,0501 kg/kom |
Probna petlja | 650 °C |
Mehanička zaštita | IK07 |
Širina | 190 mm |
Visina | 203 mm |
Dubina | 75 mm |
Funkcionalnost u požaru | P90-R, E90, PS90 |
Vrste zaštite | IP40 |
Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

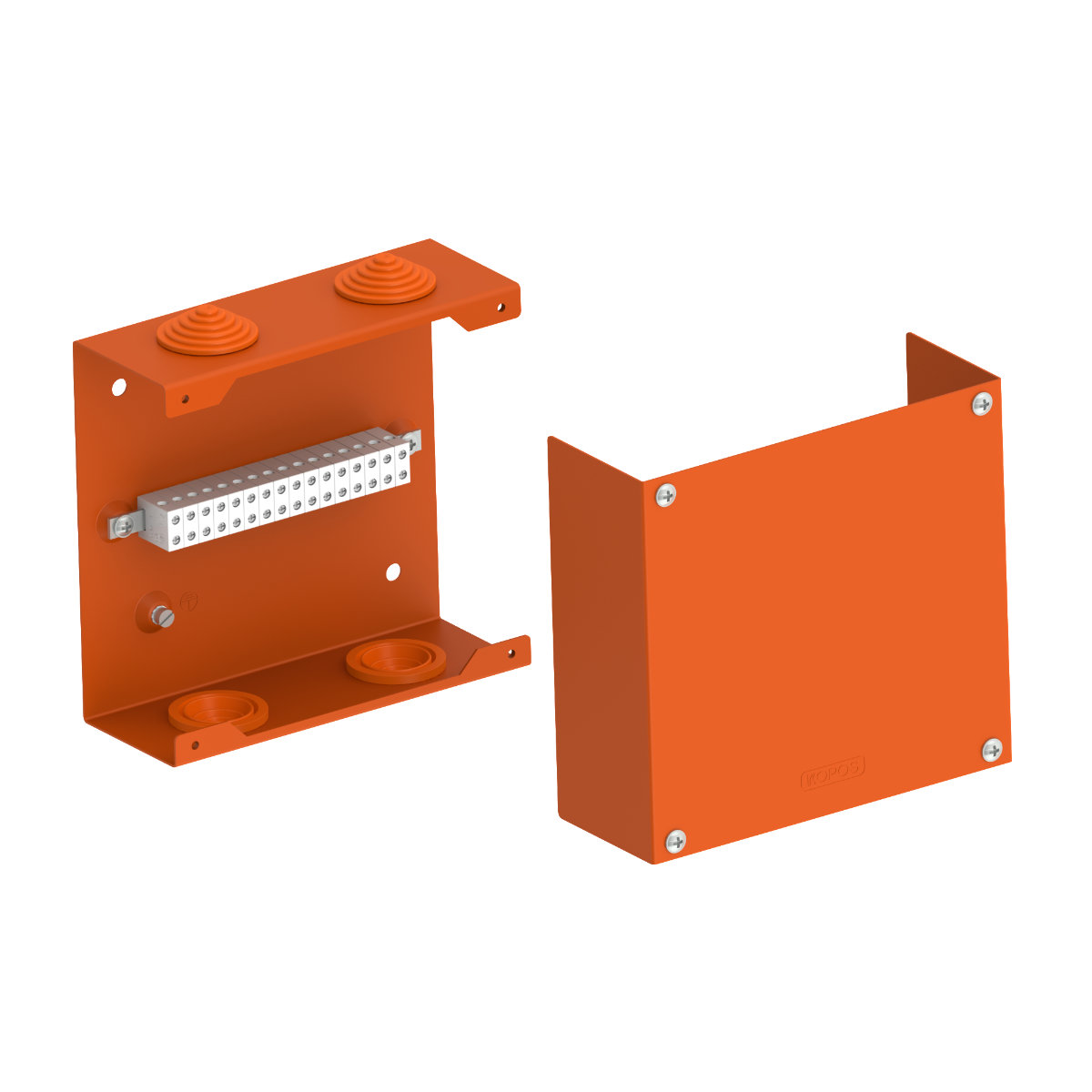

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with data cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
