bolt into concrete with internal thread

Prilozi i certifikati

Ilustrativni prikaz

tehnički list
KBS_EN
KBS_PO_EN

certifikat
Declaration RoHS
Declaration REACH

certifikat održavanje funkcije u požaru
Certification report DIN
Certificate DIN
Conformity declaration DIN
Izjava o sukladnosti DIN

EAN kod	8595568931122
Tarifni broj	73181499
Težina	0,03 kg/pcs
Materijal	steel
Funkcionalnost u požaru	P90-R, E90, PS90
Min. dubina bušenja	45 mm
Minimalna debljina materijala	80 mm
Promjer otvora	6 mm
Veličina ključa	13
Zatezni moment	<= 10 Nm
Dubina uvrtanja	35 mm
Visina matice za pričvršćenje	26,5 mm

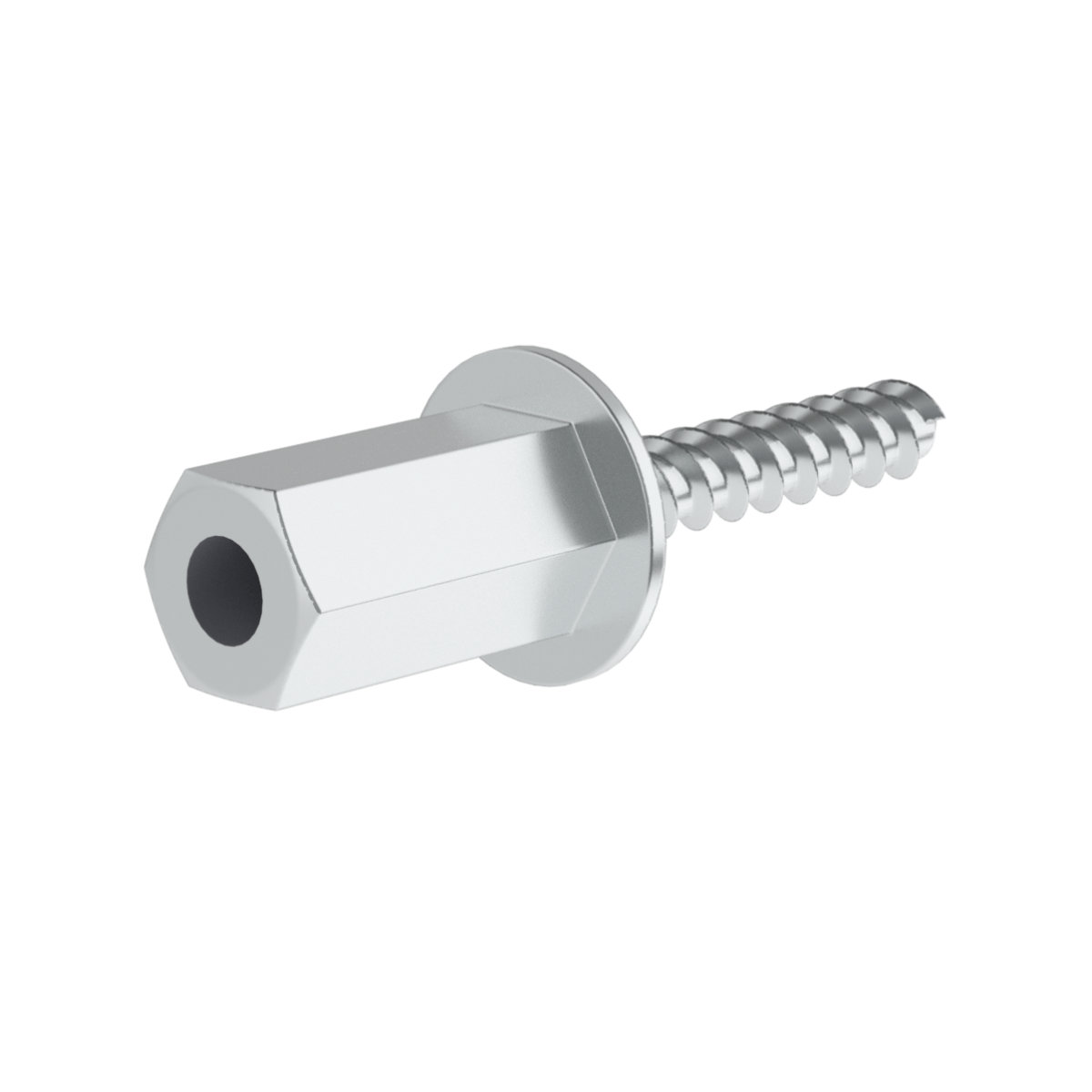

M8 / M10 combined screw for quick and easy mounting of screws or threaded rods. Designed for installation in cracked concrete C20 / 25 to C50 / 60, prestressed cavity panels C30 / 37 to C50 / 60, into natural stone with a dense structure.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
