ZVNE_EN
| EAN kod | 8595568923448 |
| Tarifni broj | 73269098 |
| Težina | 0,11 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 2 mm |
| Maksimalno opterećenje | 90 kg |
| Dimenzija A | 42 mm |
| Za širinu kabelske ploče | 62 mm |
| Za visinu kabelske police | 50 - 100 mm |

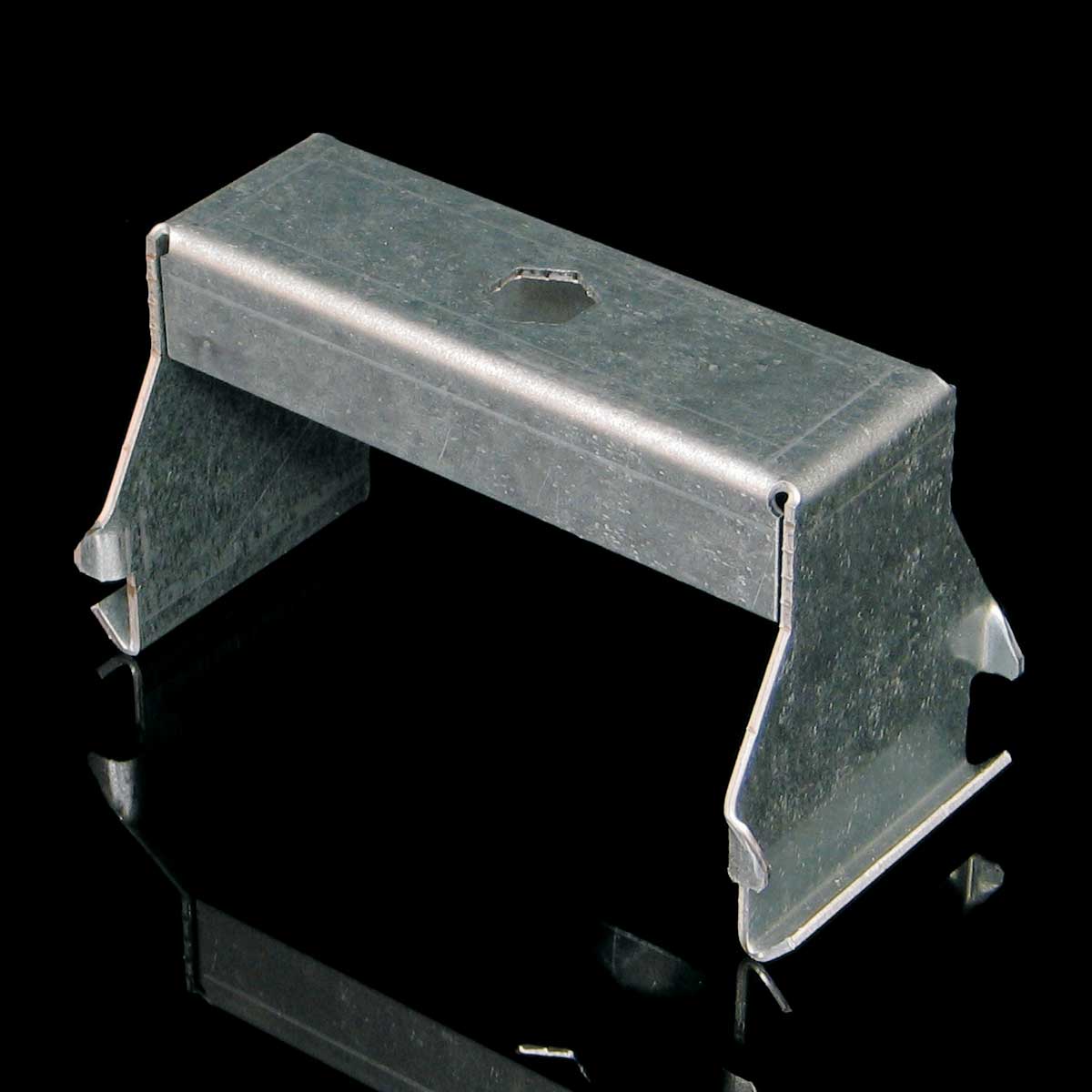

It is mounted using the threaded rod ZT 8 or ZT 10 and nut MN. The dimension of the nut is chosen by the diameter of the threaded rod. The nuts MN are not part of the hanger. The hanger is suitable for hanging cables with cross piece.
