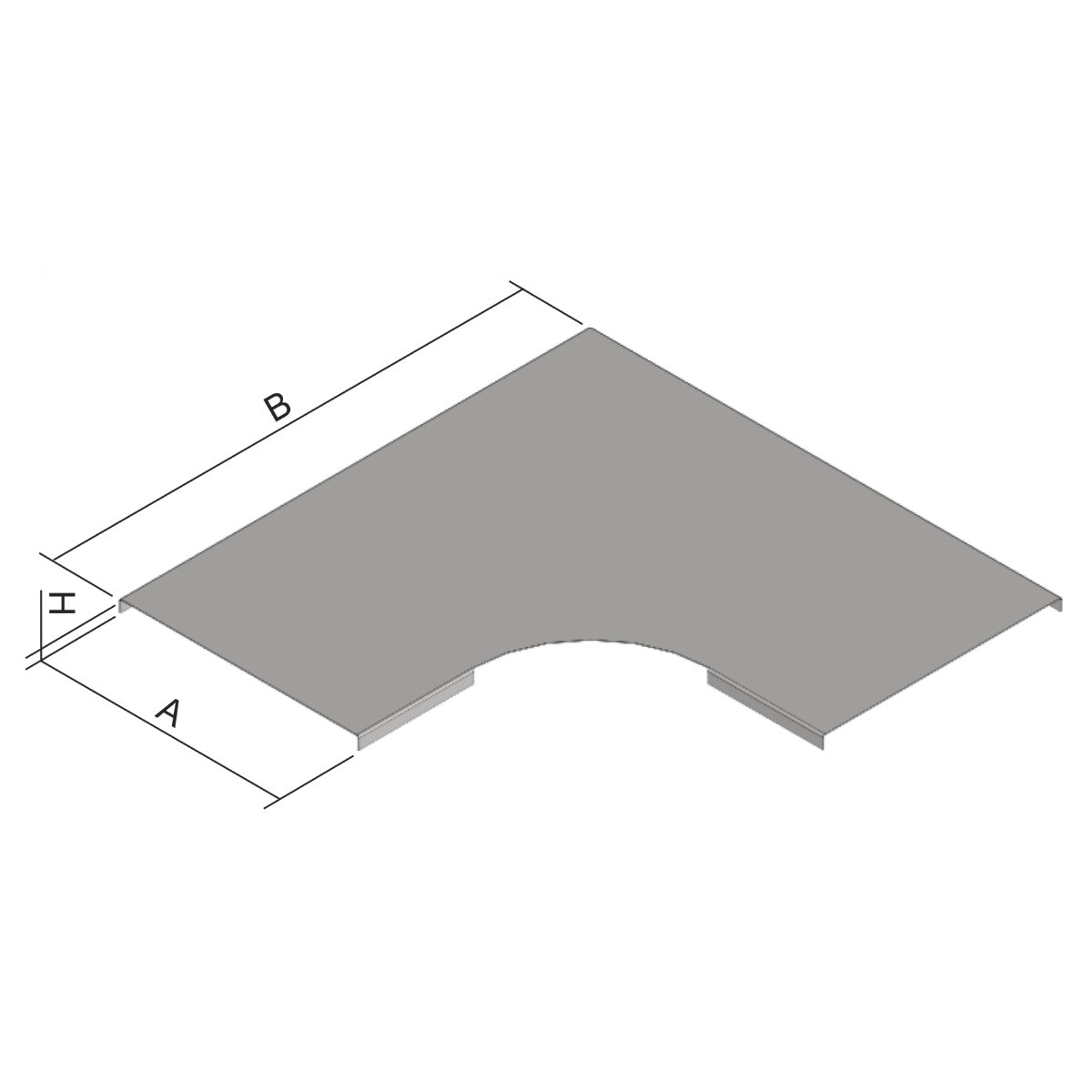

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
VO90_EN
| EAN kod | 8595057659421 |
| Tarifni broj | 73089059 |
| Težina | 2,13 kg/pcs |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1 mm |
| Dimenzija A | 304 mm |
| Dimenzija B | 504 mm |
| Dimenzija H | 12 mm |
| Za širinu kabelske ploče | 300 mm |
To fix the cover use 6 pcs of cover fixutres VU.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
