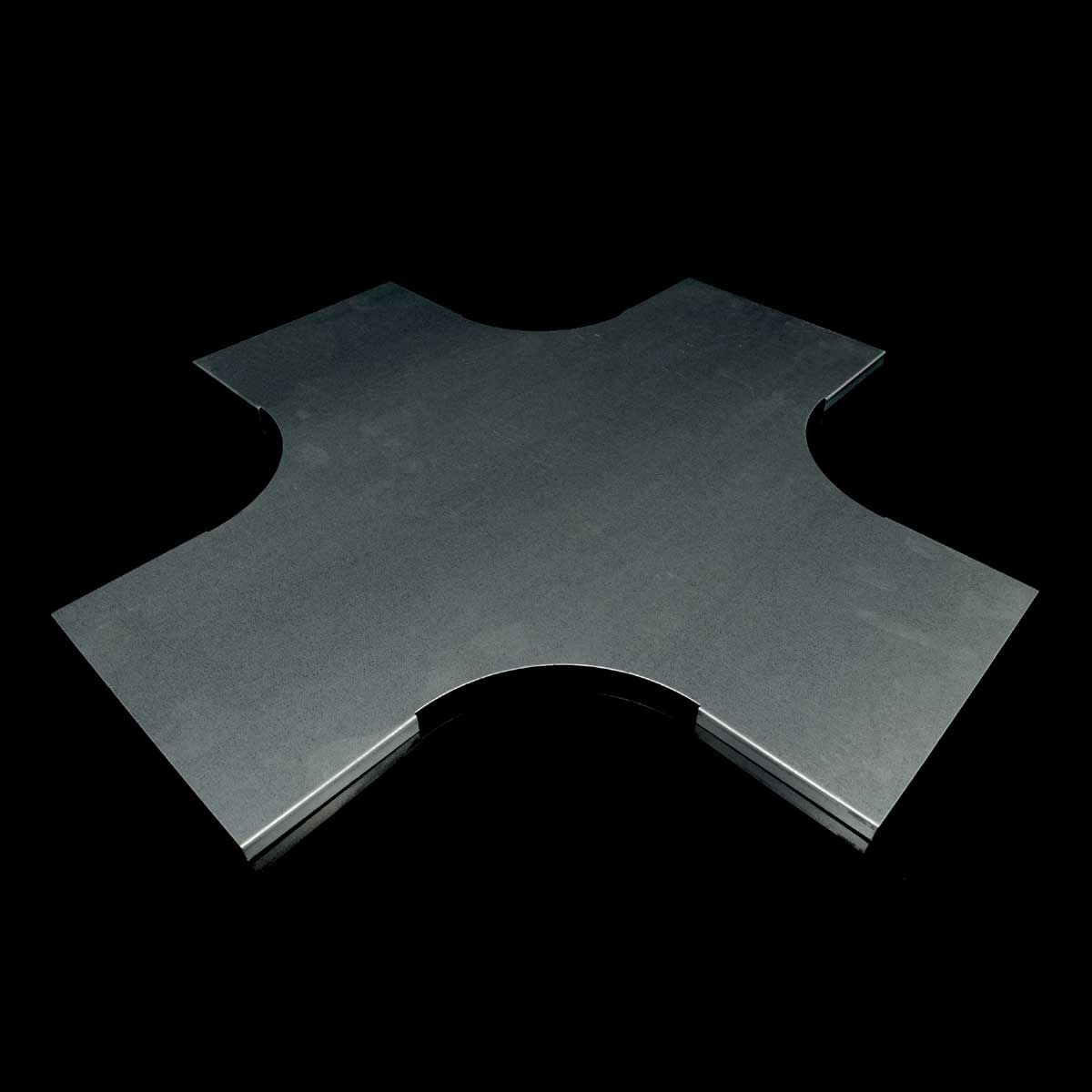

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
VKR_EN
| EAN kod | 8595057638037 |
| Tarifni broj | 73089059 |
| Težina | 1,41 kg/pcs |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,8 mm |
| Dimenzija A | 204 mm |
| Dimenzija B | 603 mm |
| Dimenzija H | 12 mm |
| Za širinu kabelske ploče | 200 mm |
To fix the cover use 8 pcs of cover fixture VU.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
