EAN kod8595057627796
Tarifni broj73269098
Težina0,09 kg/pcs
Površinska obradaPre-Galvanized
Otpornost na temperaturu-50 - 150 °C
Funkcionalnost u požaruP90-R, E90, PS90
StandardiČSN EN 61537
Standardi otpornosti na vatruČSN 73 0895, DIN 4102-12, STN 92 0205
Debljina metala1,2 mm
Količina vijaka za spajanje8
Dimenzija H50 mm
Za visinu kabelske police60 mm

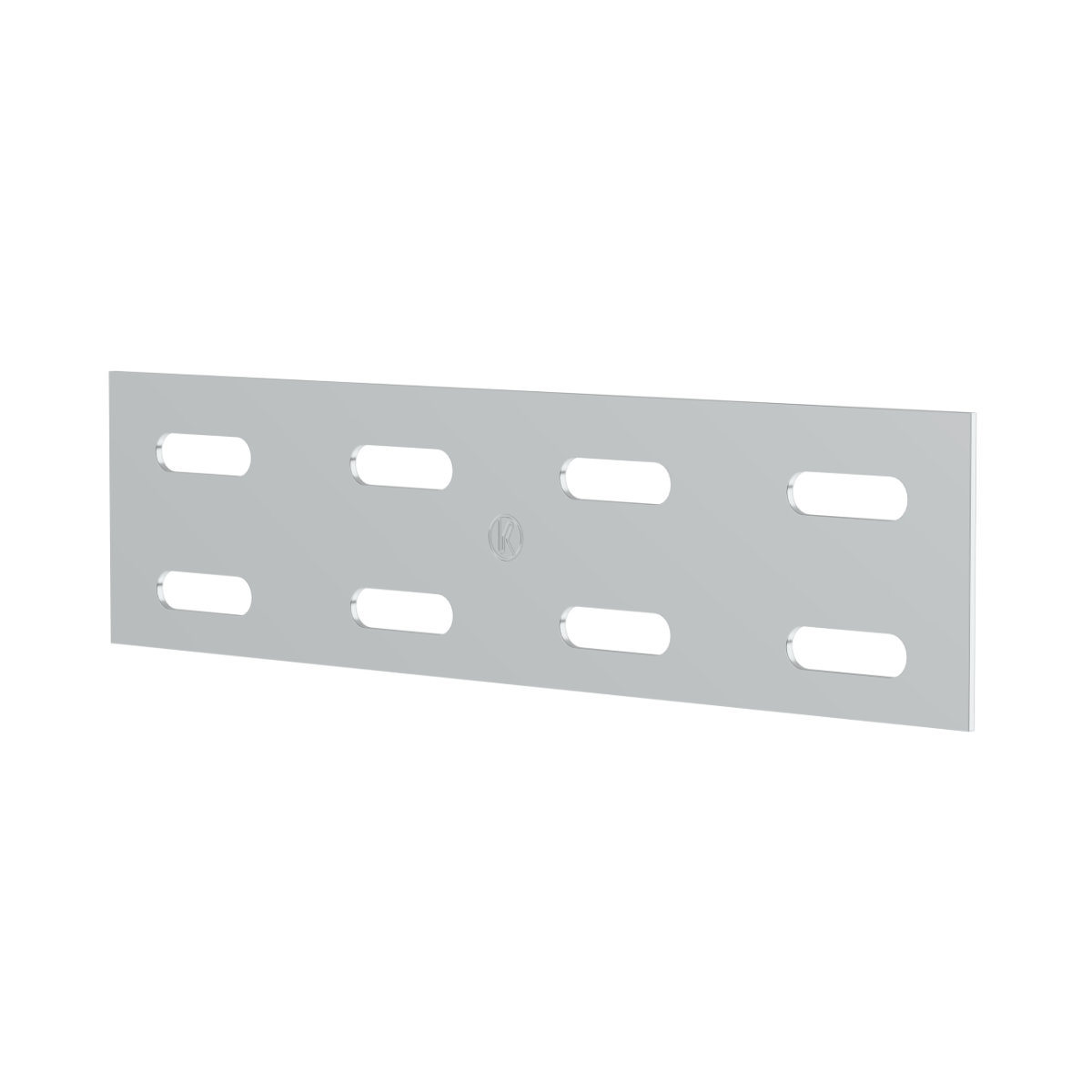

Used to connect trays / ladders with no built-in connector or if the connector has been removed. Connectors can be bent to create an angled branch. Attached using NSM 6X10 screws that meet the requirement for conductive bonding.

Note for system with maintained functionality in fire:
It serves for connecting trays. Fixing is carried out by screws NSM 6X10.
You find more information in the catalogue Systems with maintained functionality in fire.
