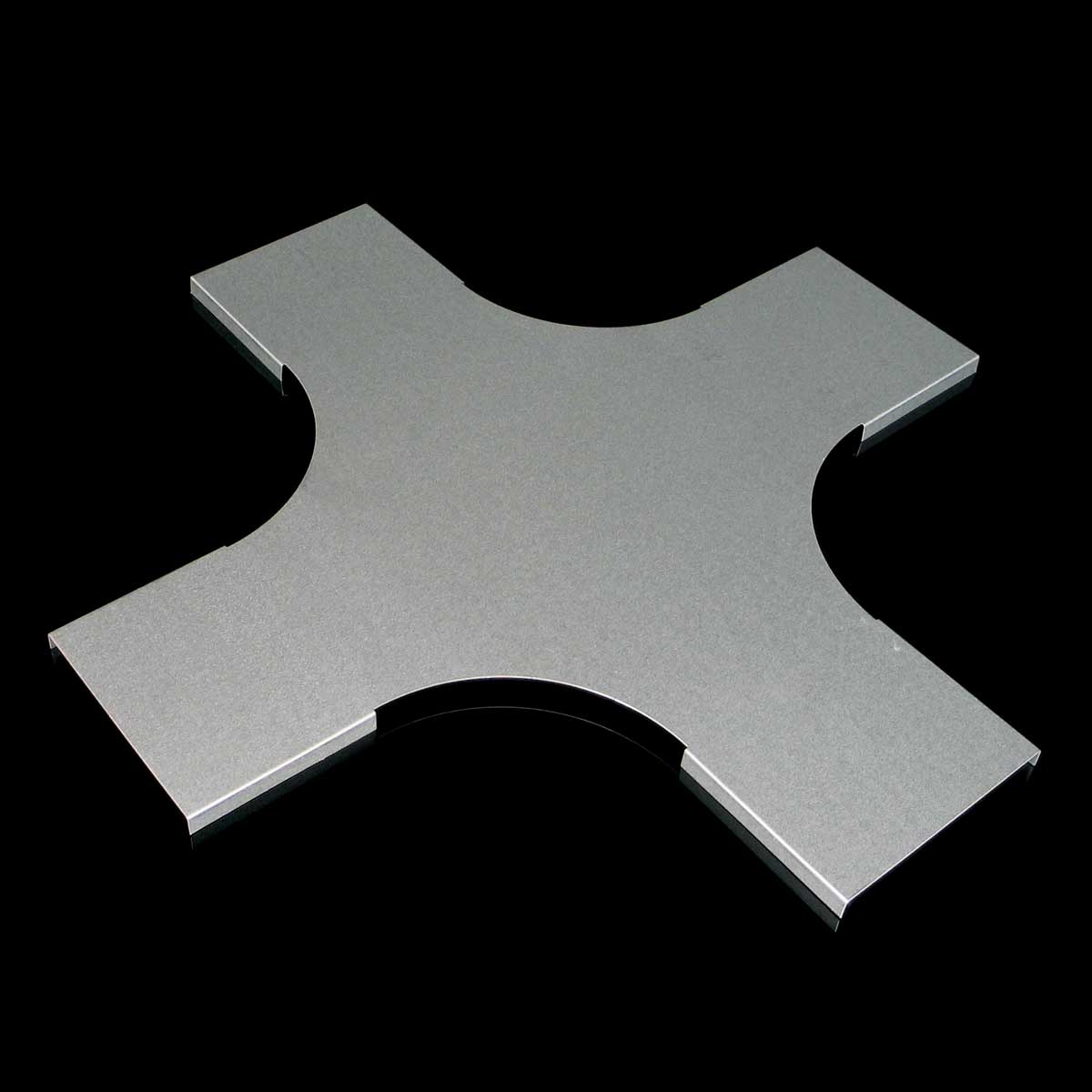

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
| EAN kod | 8595057681613 |
| Tarifni broj | 73089059 |
| Težina | 0,3270 kg/kom |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - +150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,6 mm |

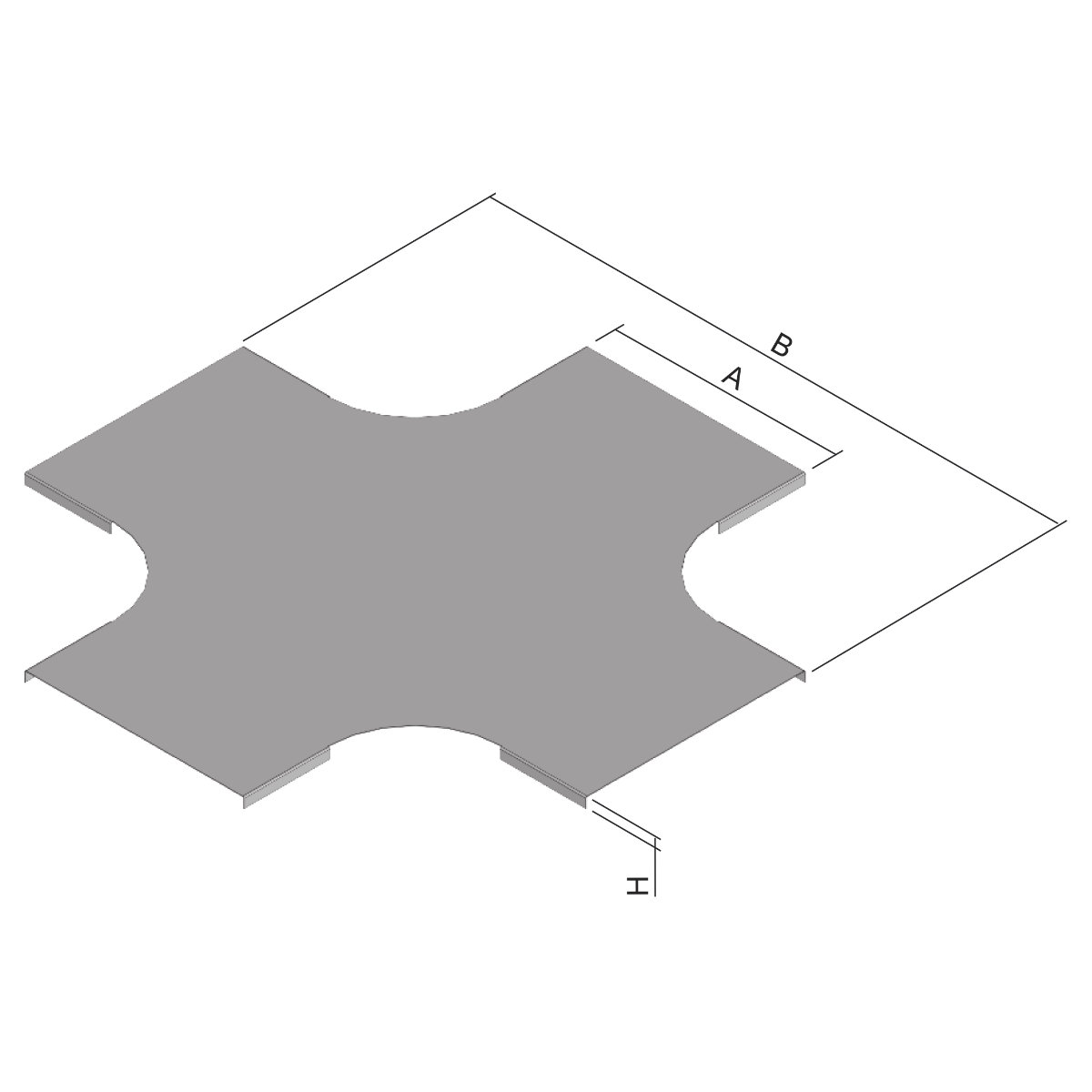

| Dimenzija A | 66 mm |
| Dimenzija B | 379 mm |
| Dimenzija H | 12 mm |
| Za širinu kabelske ploče | 62 mm |
| Za visinu kabelske police | 50 - 100 mm |
To fix the cover use 4 pcs of cover fixutres VU.
Note for system with maintained functionality in fire:
You find more information in the catalogue Cable management systems - Fire resistant systems.
