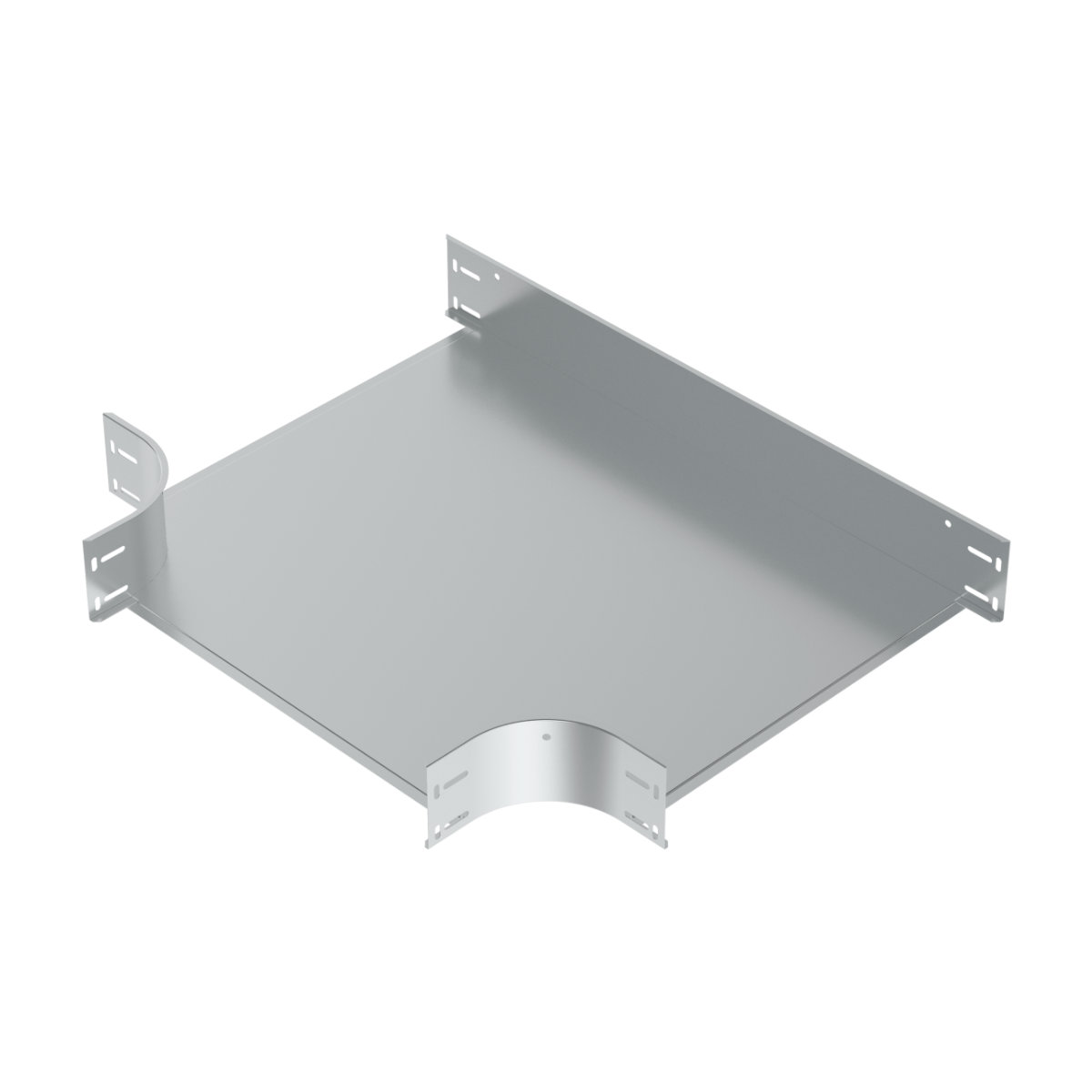

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NT_PO_EN
| EAN kod | 8595057680128 |
| Tarifni broj | 73089059 |
| Težina | 3,25 kg/pcs |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,7 mm |
| Količina vijaka za spajanje | 12 |
| Dimenzija A | 502 mm |
| Dimenzija B | 817 mm |
| Dimenzija C | 660 mm |
| Dimenzija H | 102 mm |
| Za širinu kabelske ploče | 500 mm |
| Za visinu kabelske police | 100 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NSM 6X10. To create diversion of different width is possible to use reduction piece NRD.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
