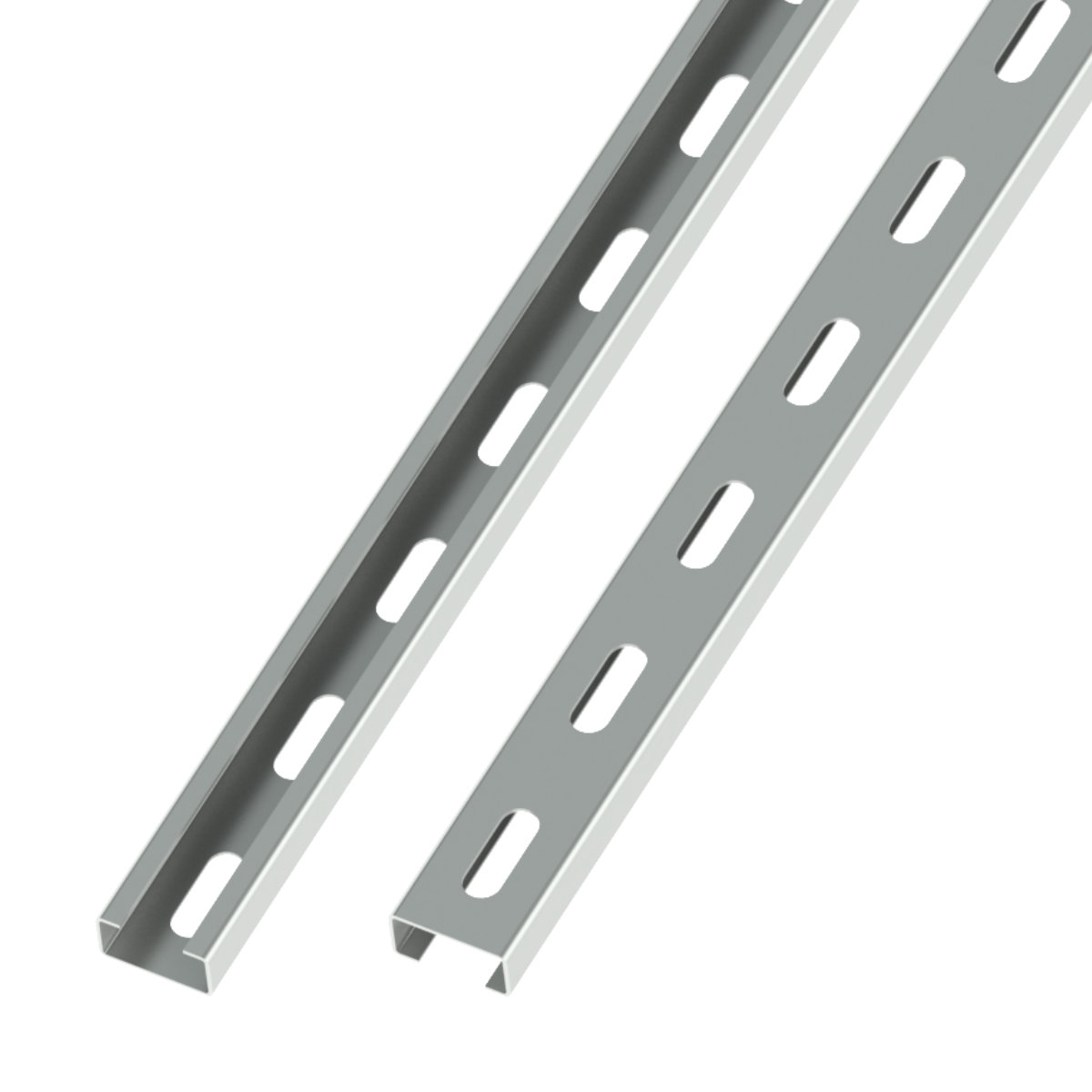

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NP_30X15X1.20_EN
| EAN kod | 8595568930316 |
| Tarifni broj | 72169180 |
| Težina | 1,15 kg/m |
| Površinska obrada | Pre-Galvanized |
| Otpornost na temperaturu | -50 - 150 °C |
| Dužina | 2000 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 1,2 mm |
| Dimenzija A | 2000 mm |
| Dimenzija B | 30 mm |
| Dimenzija C | 15 mm |
| Rupe | 9x26 mm |
It is used for mounting of cable clamps and thereby for the anchoring of the cables to the ceiling or to the wall.
Note for system with maintained functionality in fire:
Suitable for creating of beam for cable traces to be carried on thread rods. The load bearing profile is fixed by using two threaded rods ZT 8 + nut M 8 + washer PD 8.
You find more information in the catalogue Systems with maintained functionality in fire.
