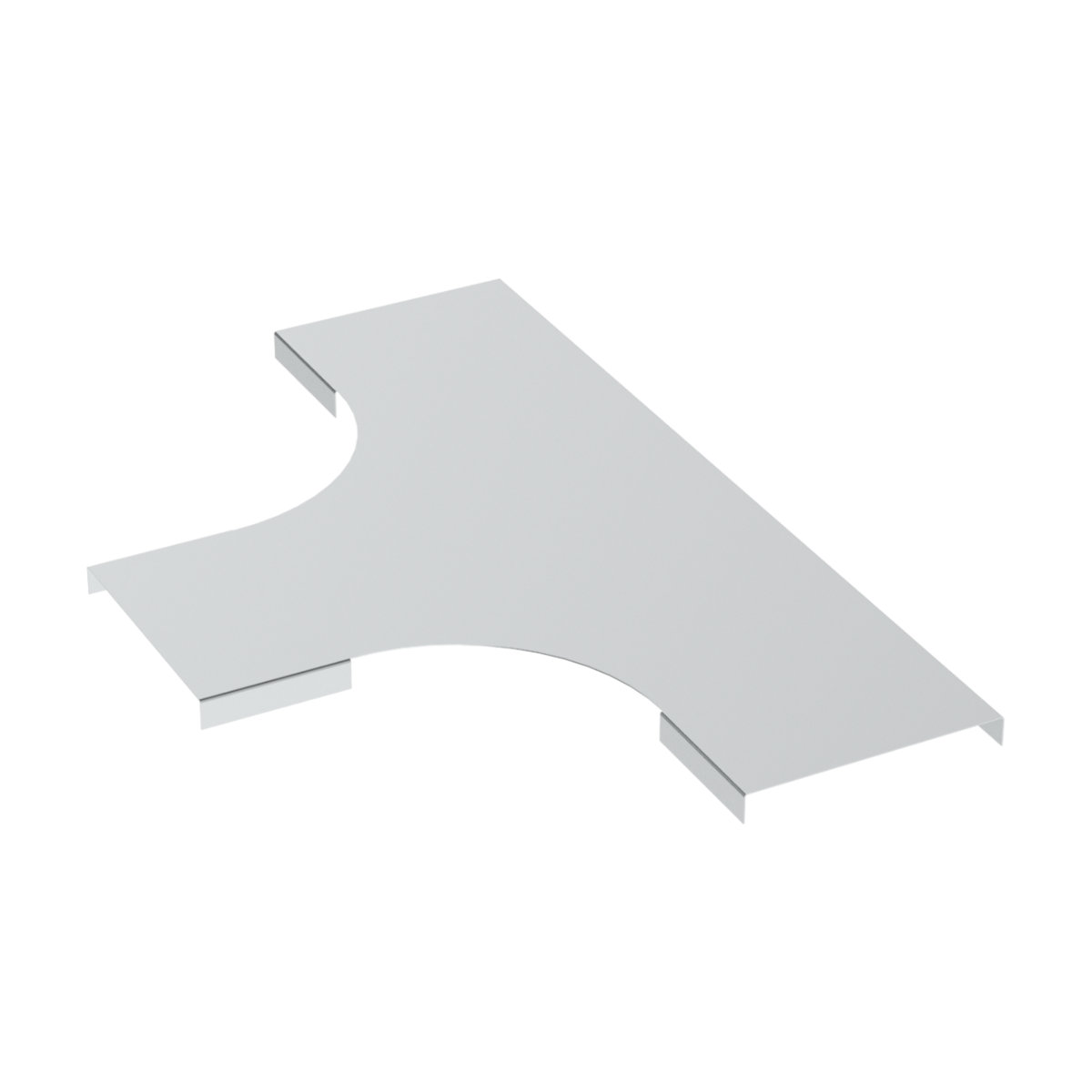

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXVT_EN
| EAN kod | 8595057674936 |
| Tarifni broj | 73089059 |
| Težina | 0,4650 kg/kom |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - +150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,6 mm |

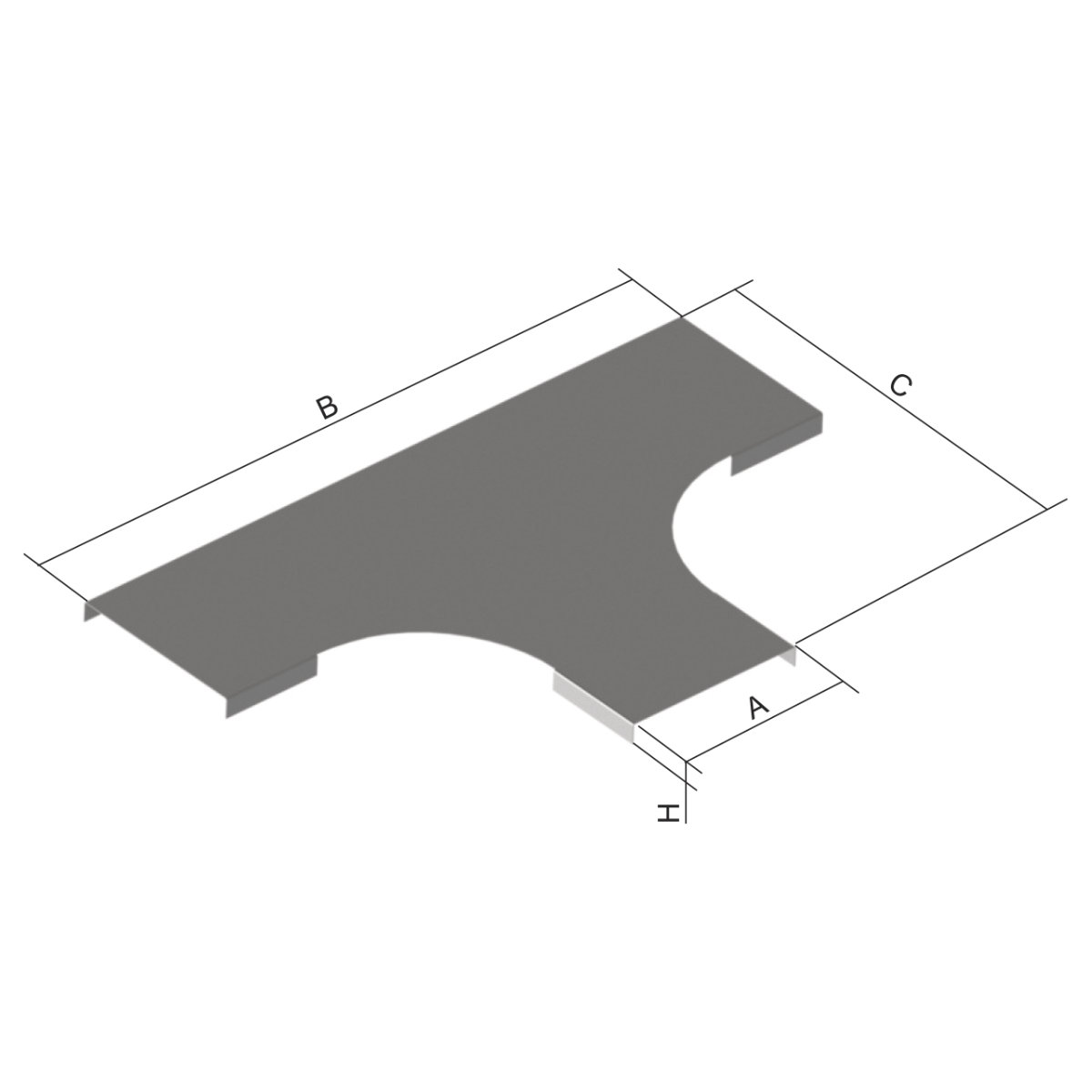

| Dimenzija A | 129 mm |
| Dimenzija B | 472 mm |
| Dimenzija C | 300 mm |
| Dimenzija H | 15 mm |
| Za širinu kabelske ploče | 125 mm |
| Za visinu kabelske police | 50 - 100 mm |
To fix the cover use cover fixtures NIXUV.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
