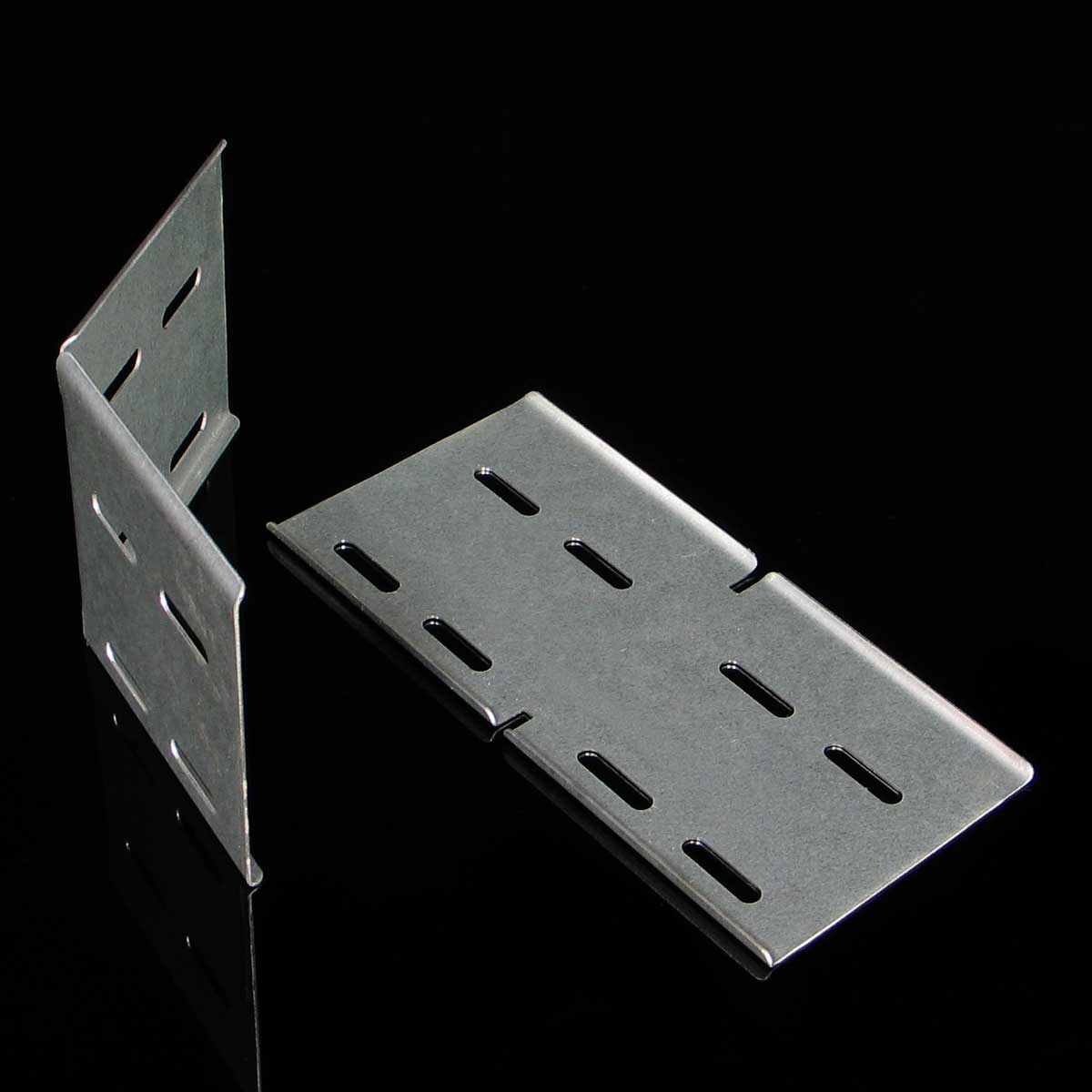

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXSUK_EN
| EAN kod | 8595057672666 |
| Tarifni broj | 73269098 |
| Težina | 0,07 kg/pcs |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - 150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 0,8 mm |
| Dimenzija H | 46 mm |
| Za širinu kabelske ploče | 62 - 250 mm |
| Za visinu kabelske police | 50 mm |
The joining is performed by using the bolts NIXSM 6X10. Angle couplings are mostly used at places where the route is slightly bended, for large bending radiuses or for the circumvention of columns and pillars. The advantage of the angle connector is that it enables angled routes to be easily created at virtually any angle.
