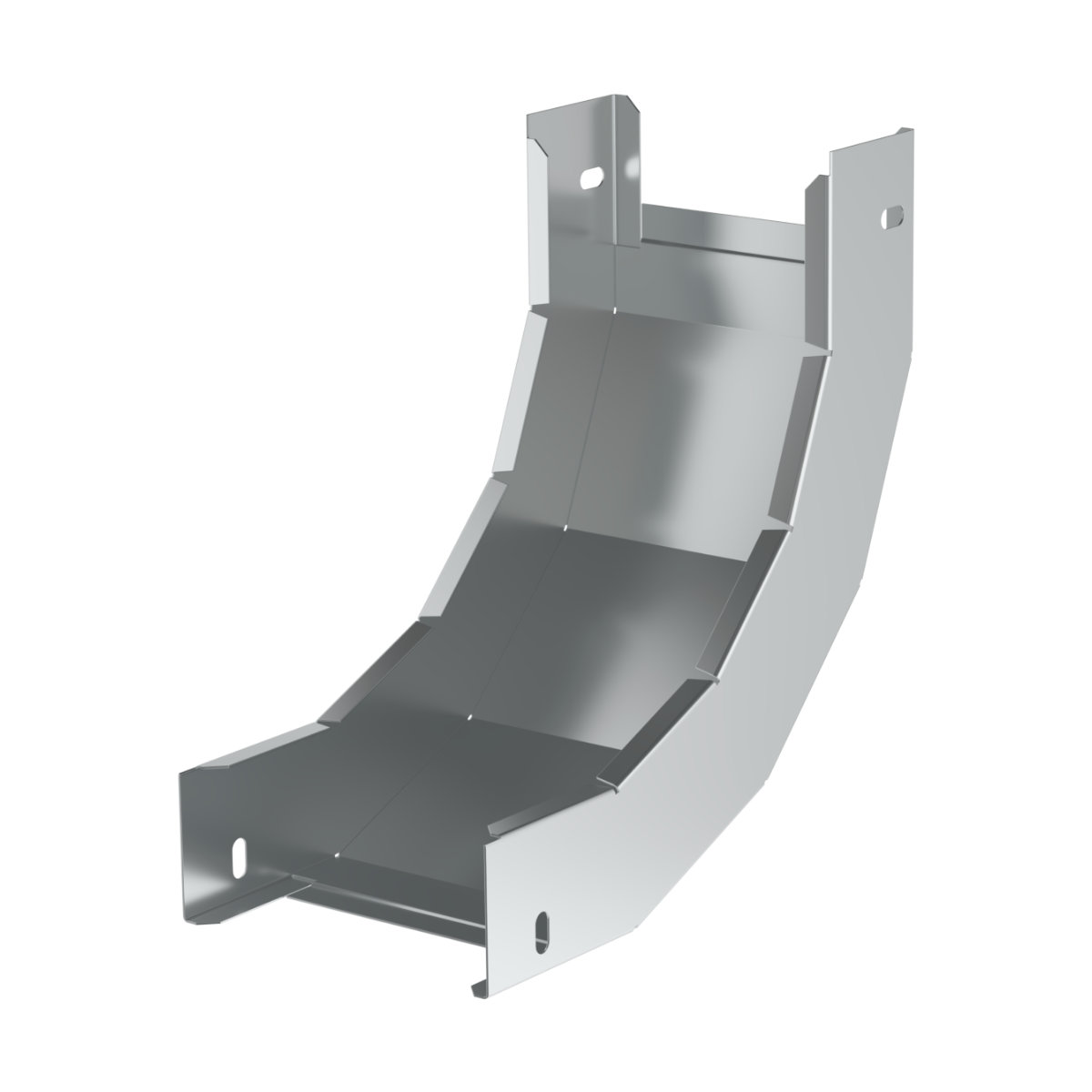

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXSO_EN
| EAN kod | 8595057672253 |
| Tarifni broj | 73089059 |
| Težina | 0,5700 kg/kom |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - +150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 0,8 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija A | 128 mm |
| Dimenzija B | 240 mm |
| Dimenzija H | 52 mm |
| Za širinu kabelske ploče | 125 mm |
| Za visinu kabelske police | 50 mm |
The connection is performed by direct sliding of the cable tray into the shaped piece and subsequent securing with bolts NIXSM 6X10.
