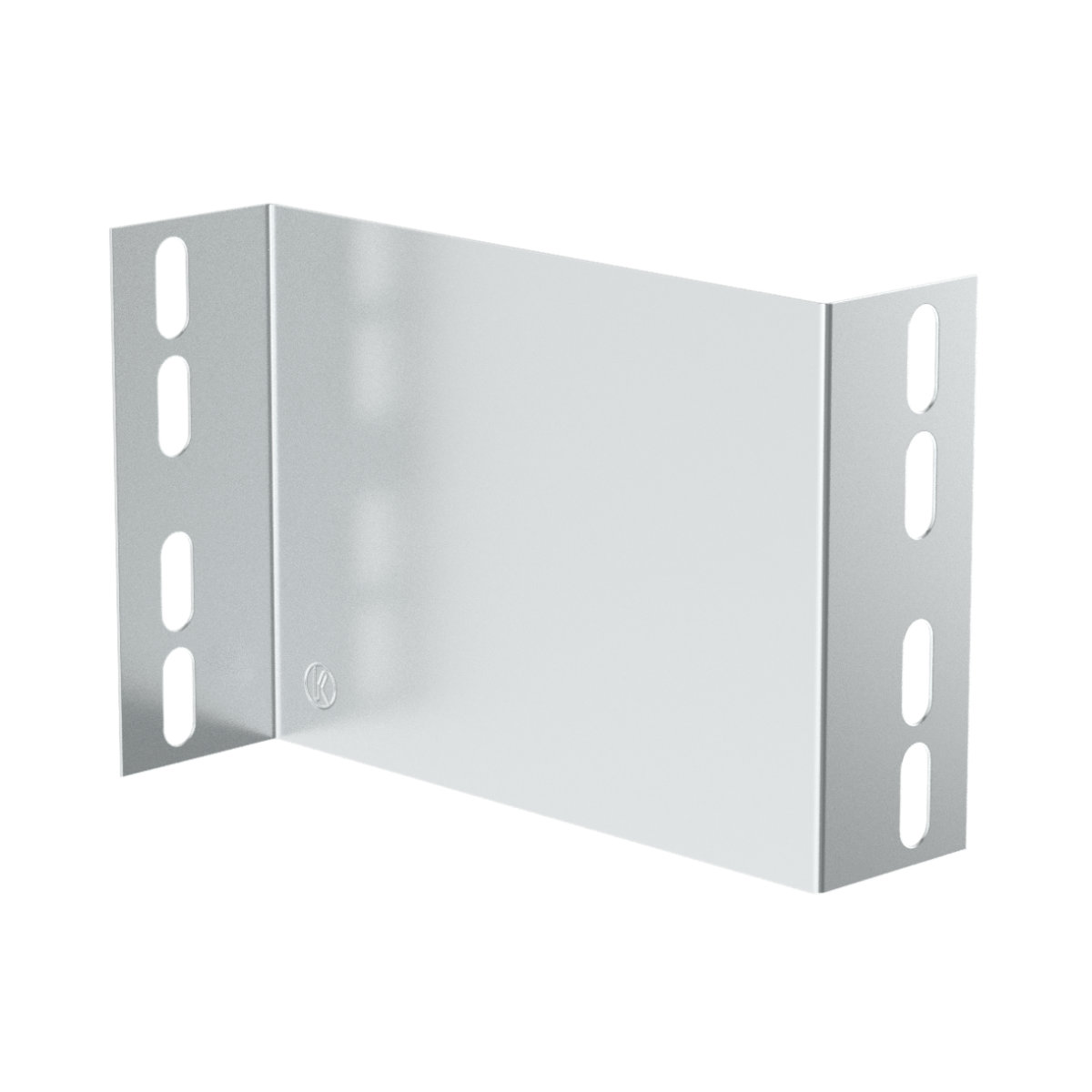

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
NIXR_EN
| EAN kod | 8595057671997 |
| Tarifni broj | 73269098 |
| Težina | 0,0820 kg/kom |
| Površinska obrada | Stainless steel AISI 304 |
| Otpornost na temperaturu | -50 - +150 °C |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Standardi | ČSN EN 61537 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Debljina metala | 0,6 mm |
| Količina vijaka za spajanje | 4 |
| Dimenzija A | 127 mm |
| Dimenzija H | 93 mm |
| Za širinu kabelske ploče | 250 - 500 mm |
| Za visinu kabelske police | 100 mm |
The joining is performed by using the bolts NIXSM 6X10. The reduction is used for the transition between various tray widths with identical height of side walls.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
