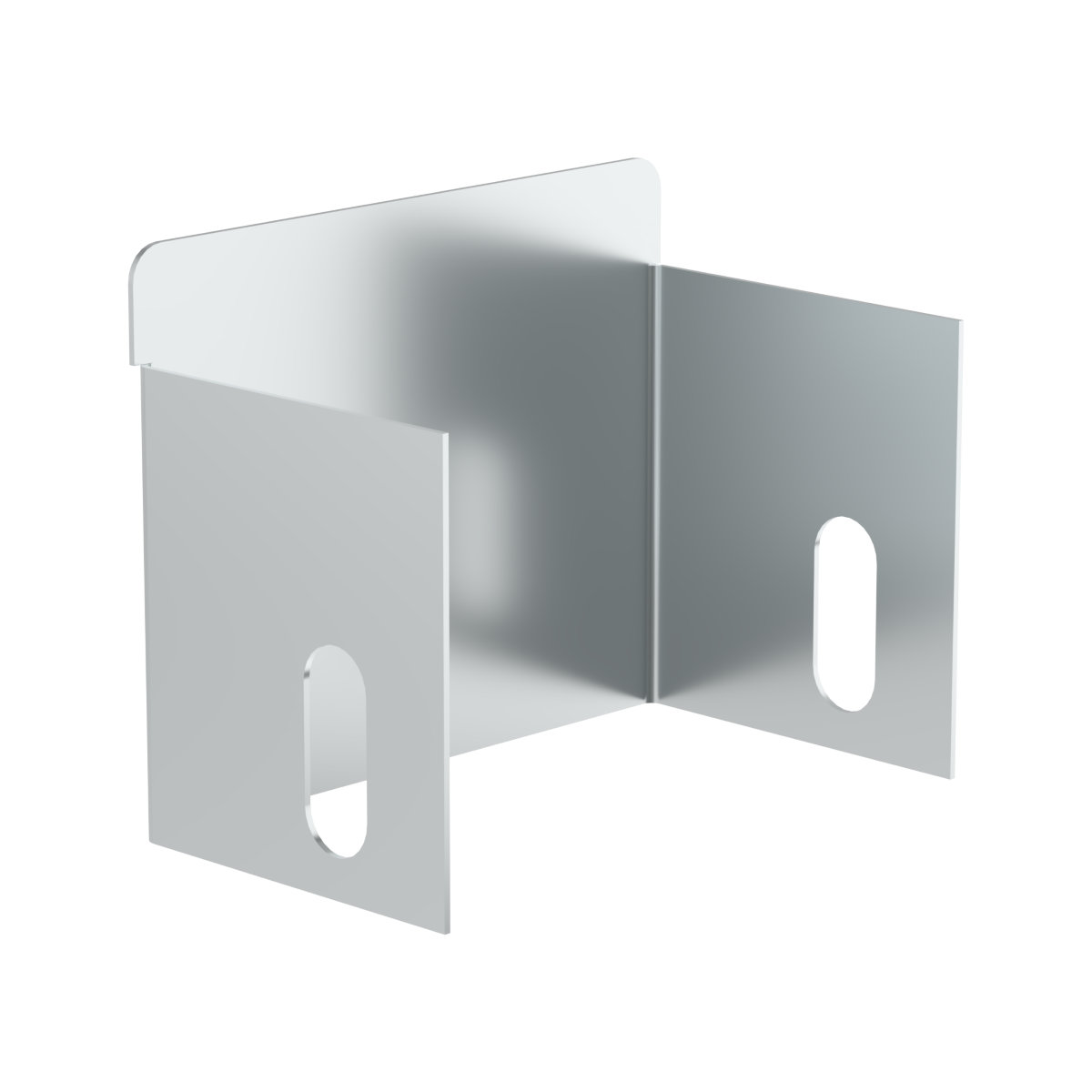

Ilustrativni prikaz
NIXK 50X62_IX
NIXK 50X62_IX
Fullsize model
To download 3D models, please login or create an account and request access.
EAN kod8595057670020
Tarifni broj73269098
Težina0,0250 kg/kom
Površinska obradaStainless steel AISI 304
Otpornost na temperaturu-50 - +150 °C
Funkcionalnost u požaruP90-R, E90, PS90
StandardiČSN EN 61537
Standardi otpornosti na vatruČSN 73 0895, DIN 4102-12, STN 92 0205
Debljina metala0,6 mm
Količina vijaka za spajanje2
Dimenzija A60 mm
Dimenzija H50 mm
Za širinu kabelske ploče62 mm
Za visinu kabelske police50 mm

The joining is performed by using the bolts NIXSM 6X10. The end-piece serves for the ending off a route.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
