Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KLT_EN
| EAN kod | 8595057661486 |
| Tarifni broj | 73089059 |
| Težina | 8,6360 kg/kom |
| Površinska obrada | Hot Dip Galvanized |
| Otpornost na temperaturu | -50 - +150 °C |
| Standardi | ČSN EN 61537 |
| Debljina metala | 1,2 - 1,5 mm |
| Količina vijaka za spajanje | 36 |

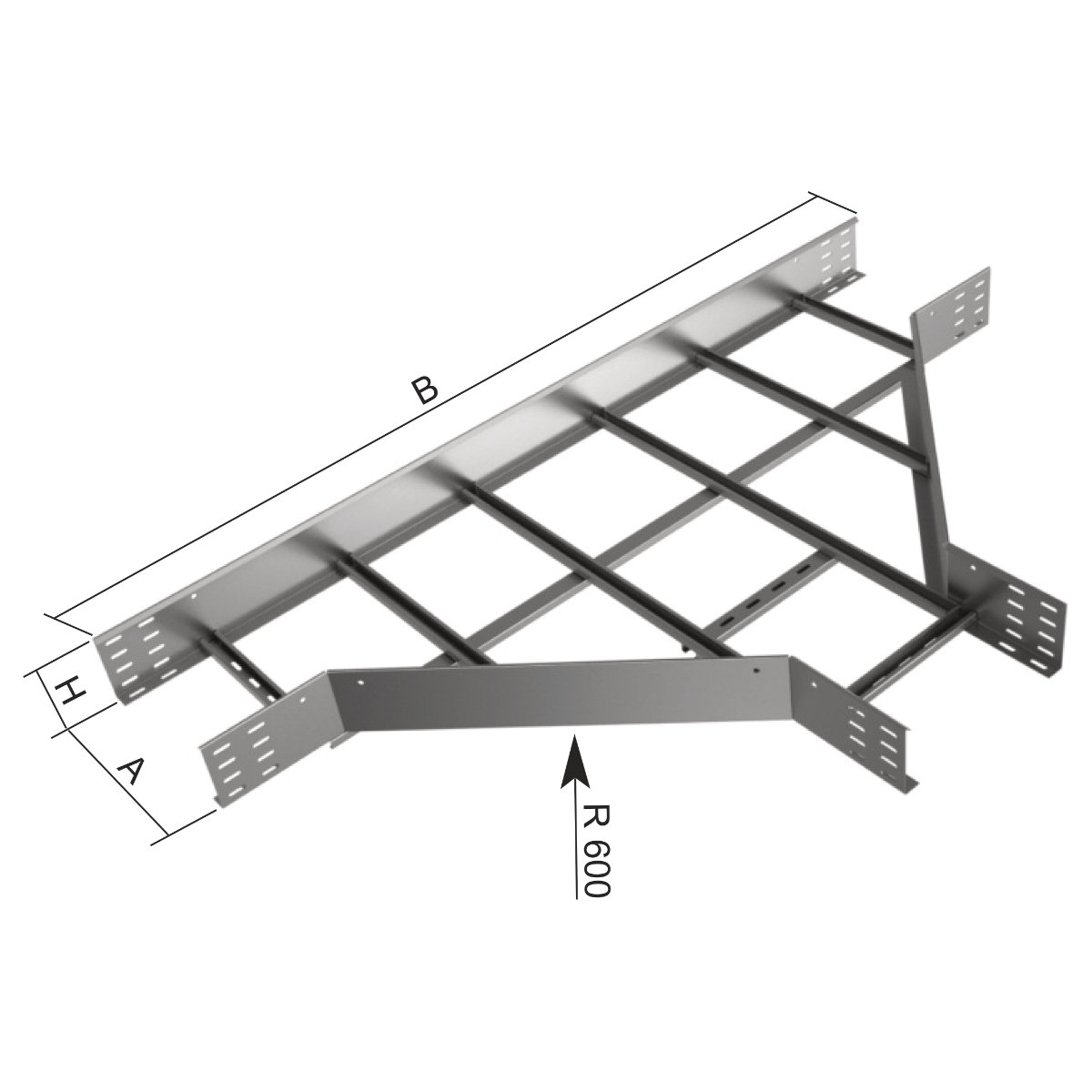

| Dimenzija A | 300 mm |
| Dimenzija B | 1500 mm |
| Dimenzija H | 85 mm |
The connection of the T-piece with the ladder is performed by using the 6 pcs couplings S 85X200 and the 36 pcs bolts NSM 6X10.
