Ilustrativni prikaz
BSKH 110 K_F
BSKH 110 K_F
BSKH 110 K_F
BSKH 110 K_F
To download 3D models, please login or create an account and request access.
EAN kod8595568904188
Tarifni broj73269098
Težina0,64 kg/pcs
Površinska obradaHot Dip Galvanized
Otpornost na temperaturu-50 - 150 °C
StandardiČSN EN 61537
Debljina metala2 mm
Količina vijaka za spajanje8

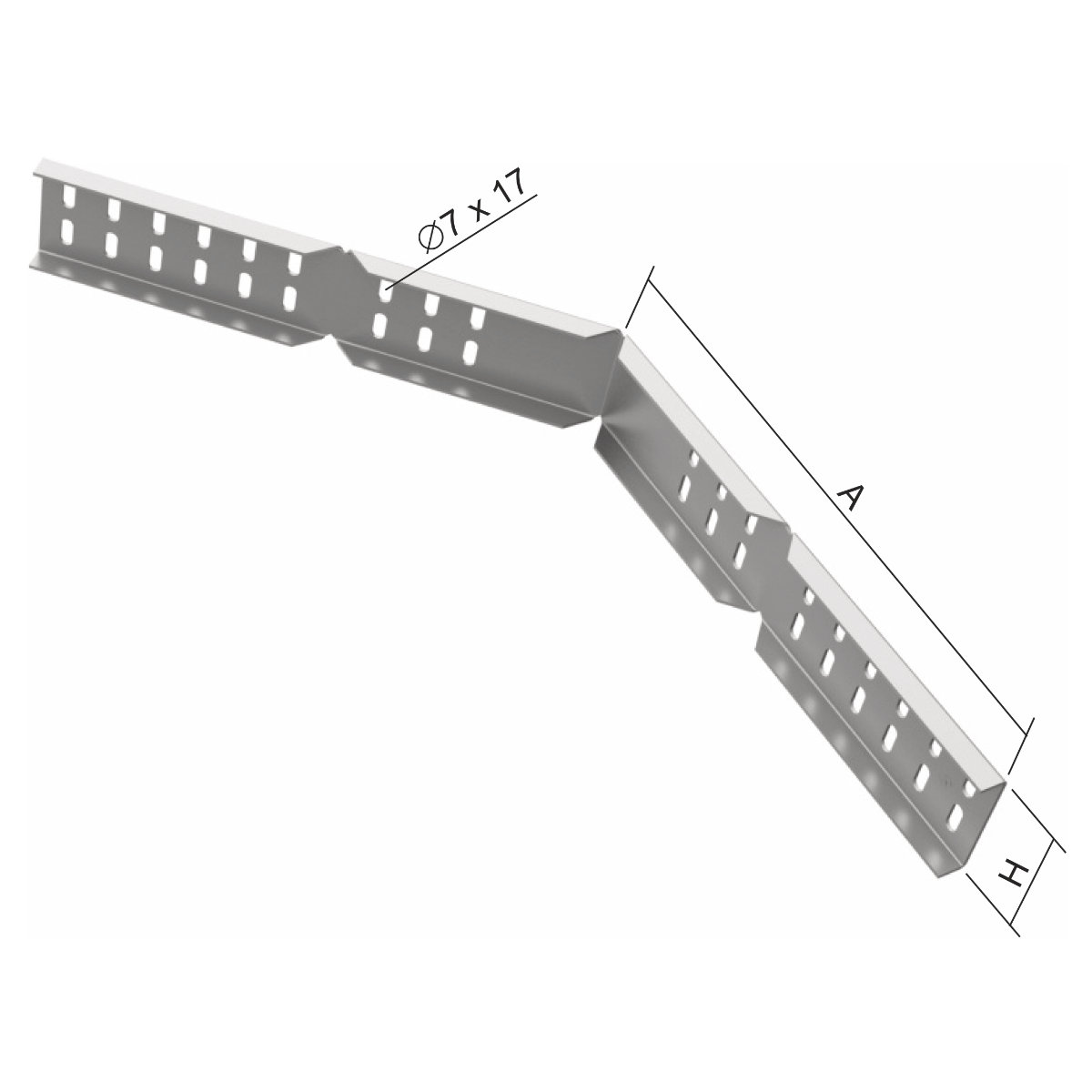

Dimenzija A140 mm
Dimenzija H114 mm

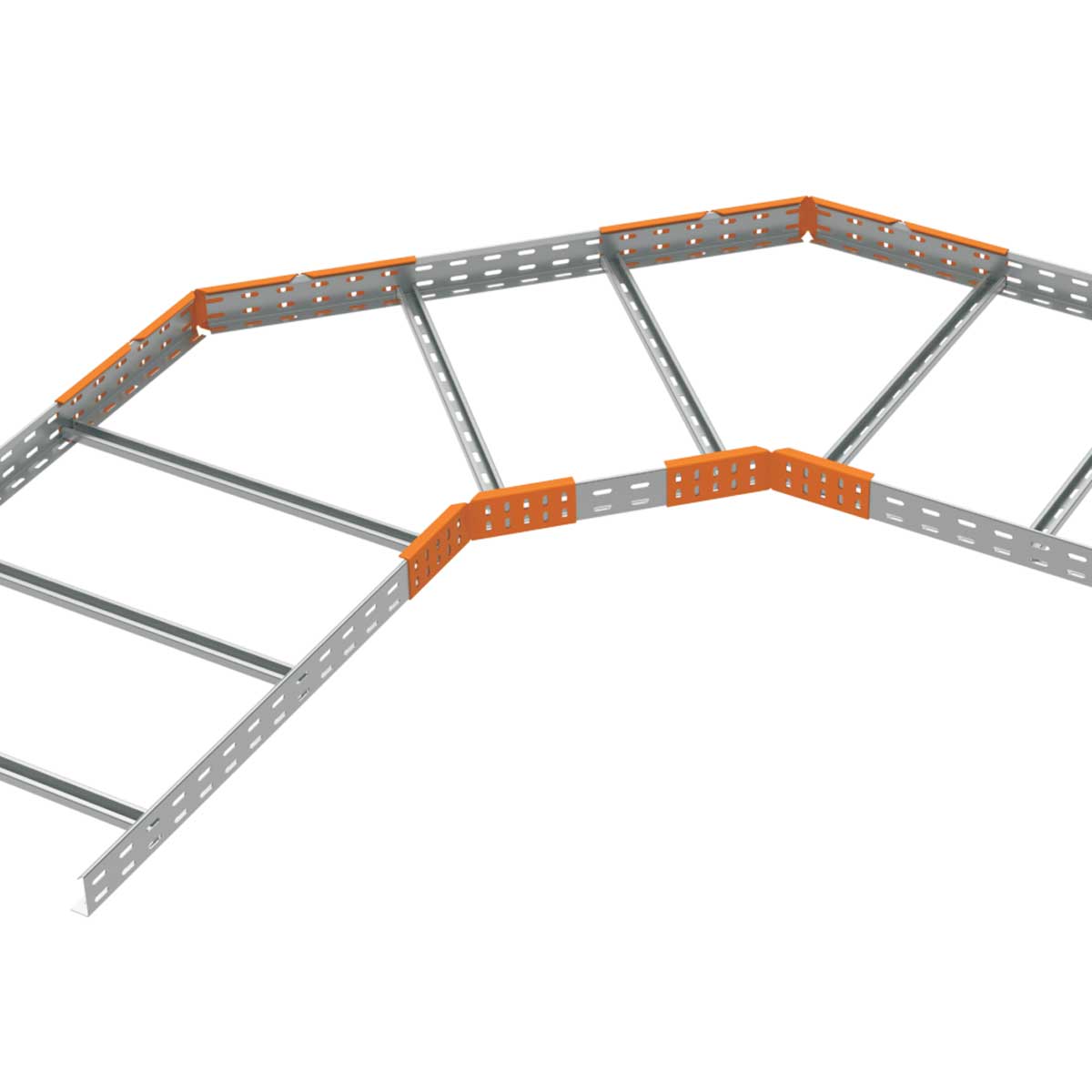

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
