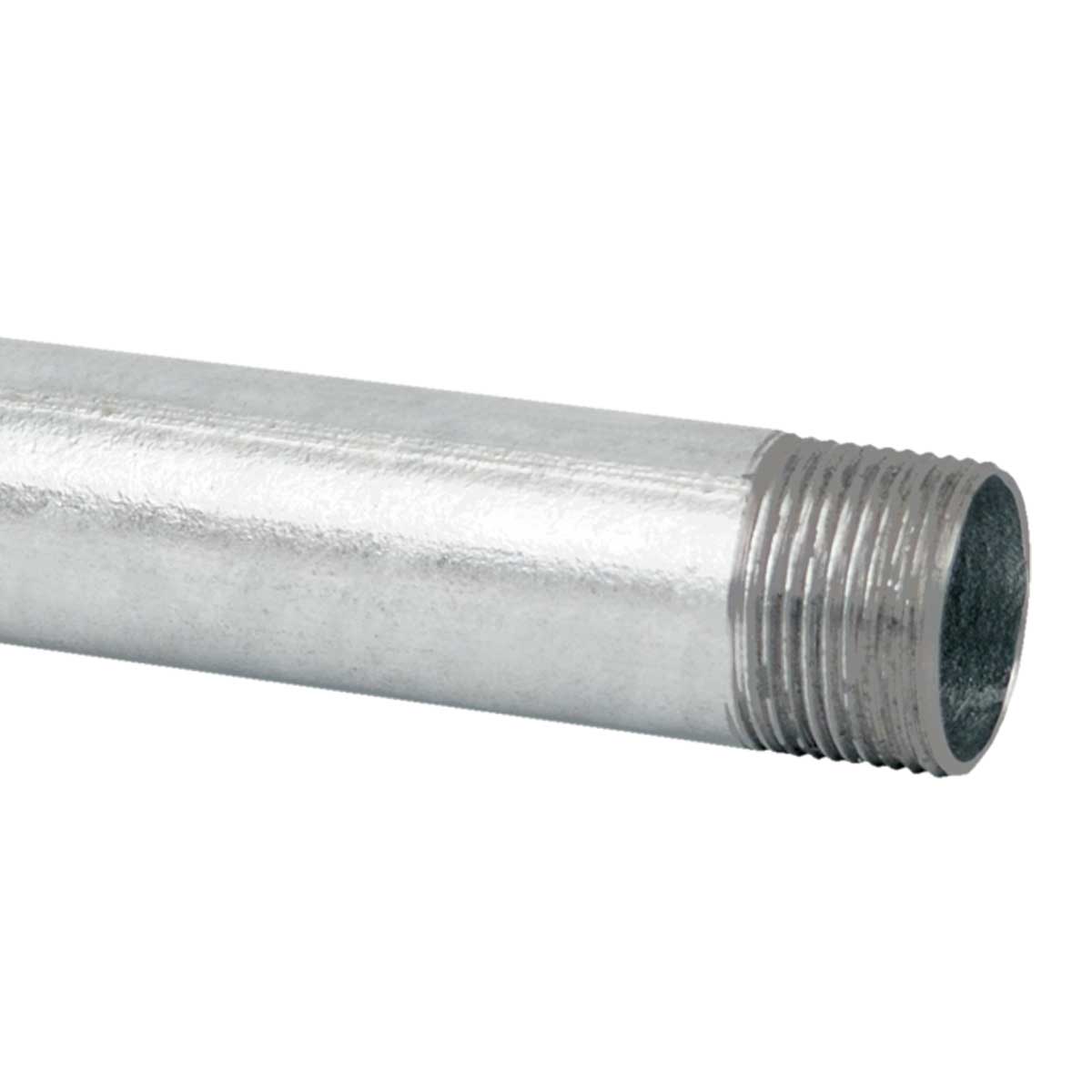

Ilustrativni prikaz
trubka_ocel_EN_zavit_EN
| EAN kod | 8595568922342 |
| Tarifni broj | 73063041 |
| Težina | 1,21 kg/m |
| Materijal | steel |
| Površinska obrada ZNM: Sendzimir Galvanized, zinc layer 15 - 27 micron, replaces primer, medium corrosion resistance - group - 2 | |
| Otpornost na temperaturu | -45 - 250 °C |
| Mehanički otpor | 4000 N/5cm |
| Mehanička zaštita | IK10 |
| Dužina | 3 m |
| Vanjski promjer | 32 mm |
| Unutarnji promjer (min.) | 26,6 mm |
| Funkcionalnost u požaru | P90-R, E90, PS90 |
| Vrsta niti | M32 x 1,5 |
| Kôd sortiranja | 55561 |
| Standardi | ČSN EN 61386-1 ed.2 |
| Standardi otpornosti na vatru | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
| Maks. opterećenje za vatrootpornost | 10 kg |
The pipes are suitable for mechanical protection of conductors and cables. Threaded conduits are supplied with one coupler. While using pipes along with bushing 4813/P - 4842/P and 4913 - 4942 is scope of application only -5 - +60 °C.
Note for system with maintained functionality in fire:
max. 1 piece of cable in the pipe
You find more information in the catalogue Systems with maintained functionality in fire.
