Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
KUZ_V_EN
| EAN kod | 8595568923660 |
| Tarifni broj | 39259080 |
| Težina | 0,57 kg/pcs |
| Materijal | PC-ABS |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -25 - 60 °C |
| Probna petlja | 850 °C |

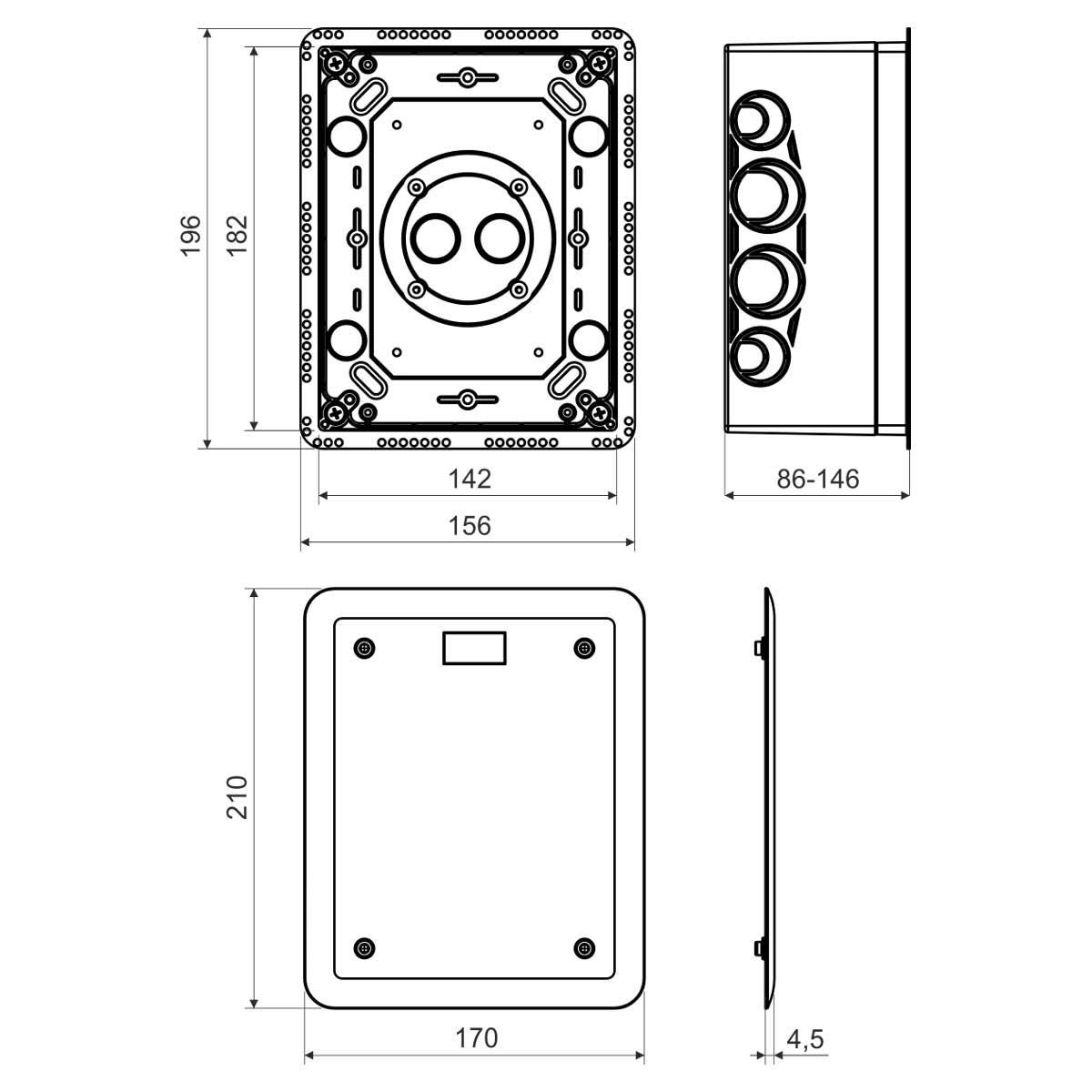

| Širina | 156 mm |
| Visina | 196 mm |
| Dubina | 86 mm |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 30 - 44 |
| Opis paketa individual boxes are packed in separate cardboards | |

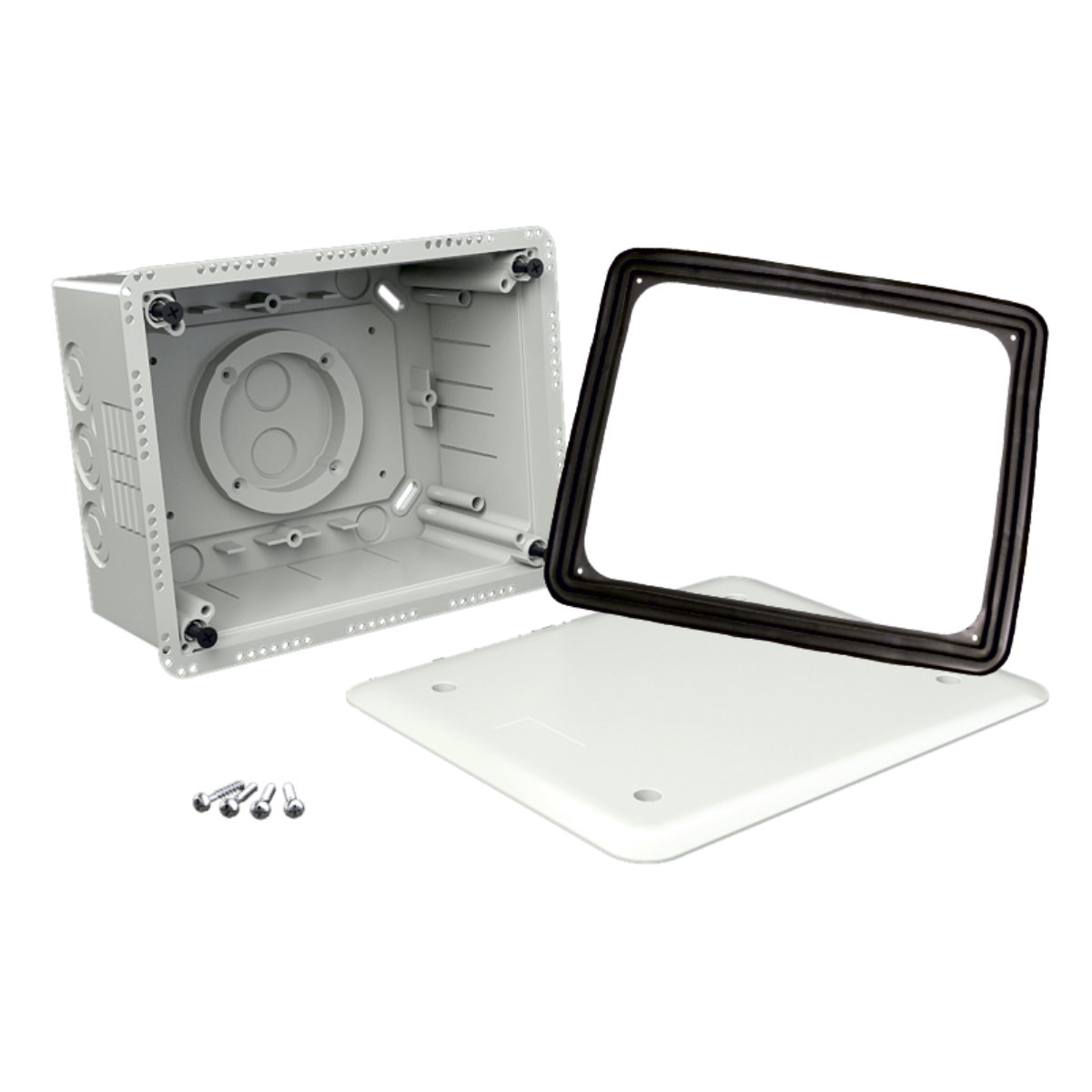

For installation to facades with thermal insulation with a thickness from 80 to 140 mm, or as boxes under parget. Use as a junction box, for lightning rod measuring clamp and other applications according to the customer. Adjustable depth of the box. The configuration includes a box and a flat lid + stainless steel screws + seal. Robust construction. Protected by a European industrial design and Utility model trademark.
