KSK125_EN
| EAN kod | 8595568919670 |
| Tarifni broj | 39259080 |
| Težina | 0,25 kg/pcs |
| Boja | light grey RAL 7035 |
| Materijal | PP, lid - PA |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| UV Stabilno/UV stabilni materijal | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 1000 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -25 - 60 °C |
| Probna petlja | 850 °C |

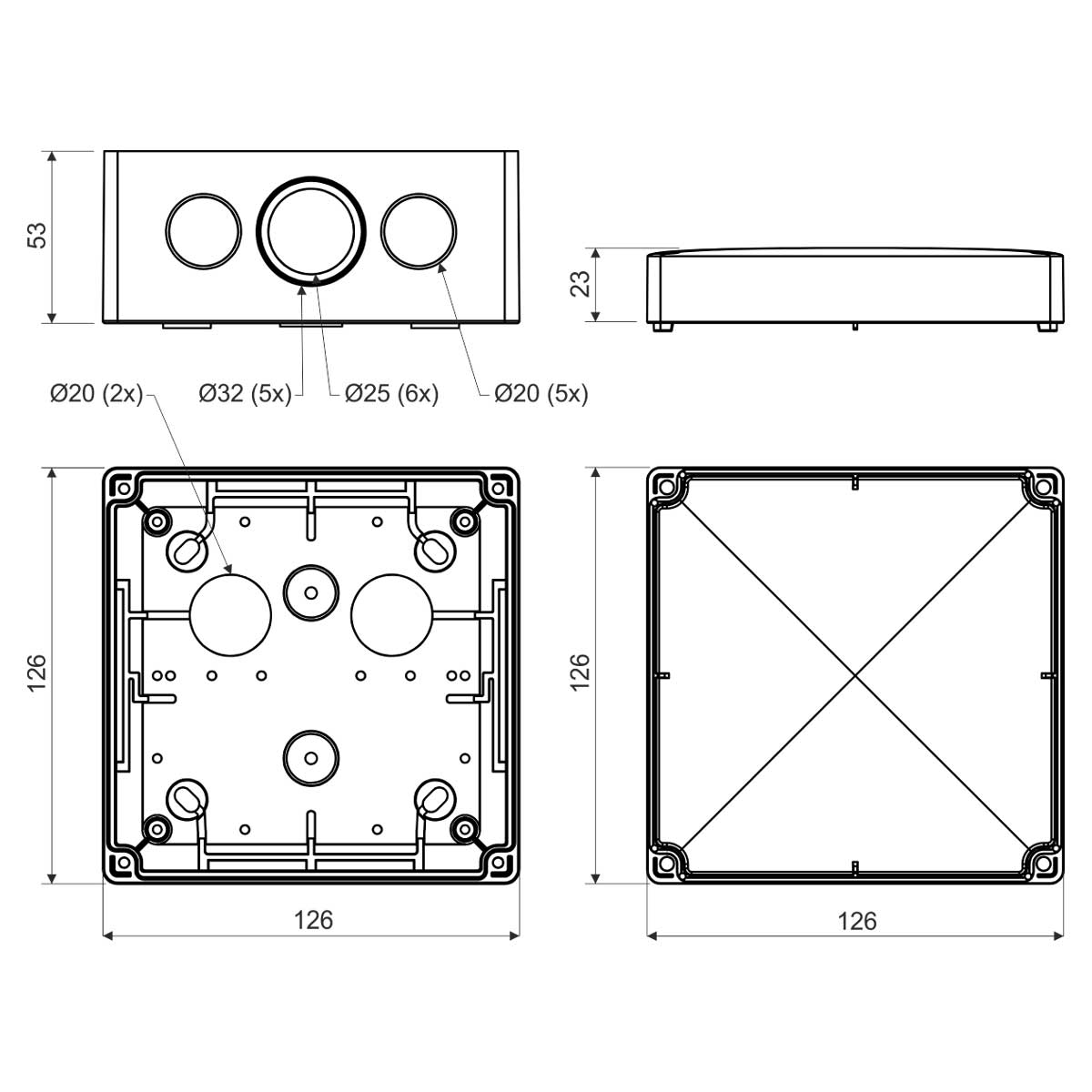

| Širina | 126 mm |
| Visina | 126 mm |
| Dubina | 76 mm |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 66 |
| Opis paketa the plug and lid screws inserted in the box, each box packed in shrink foil and labeled | |

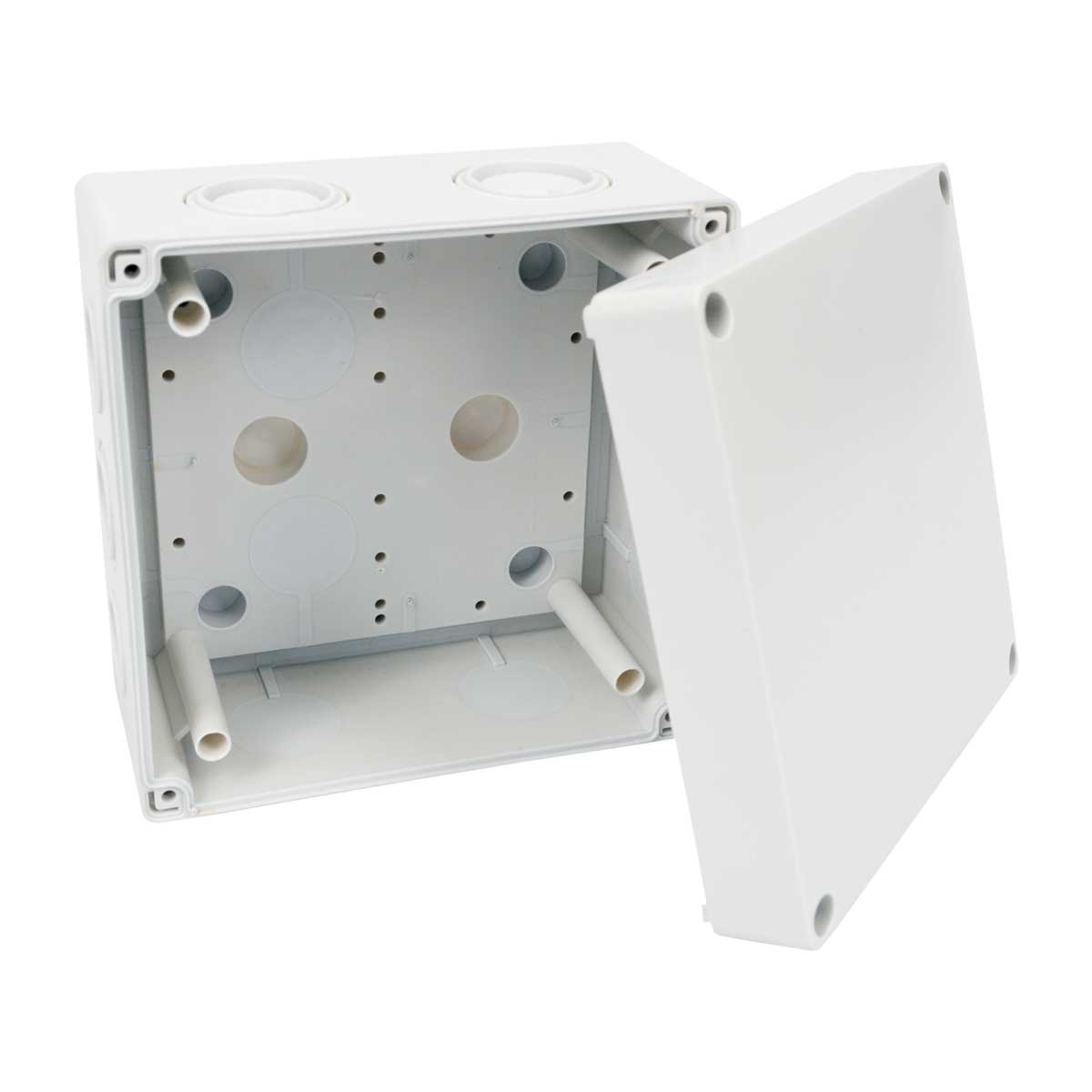

Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 2). Integrated O-ring to install cable glands. 7x membrane inputs with ∅20 mm, 6x ∅25 mm and 5x break-out inputs with ∅32 mm. Protected by Utility model trademark.
Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire.
