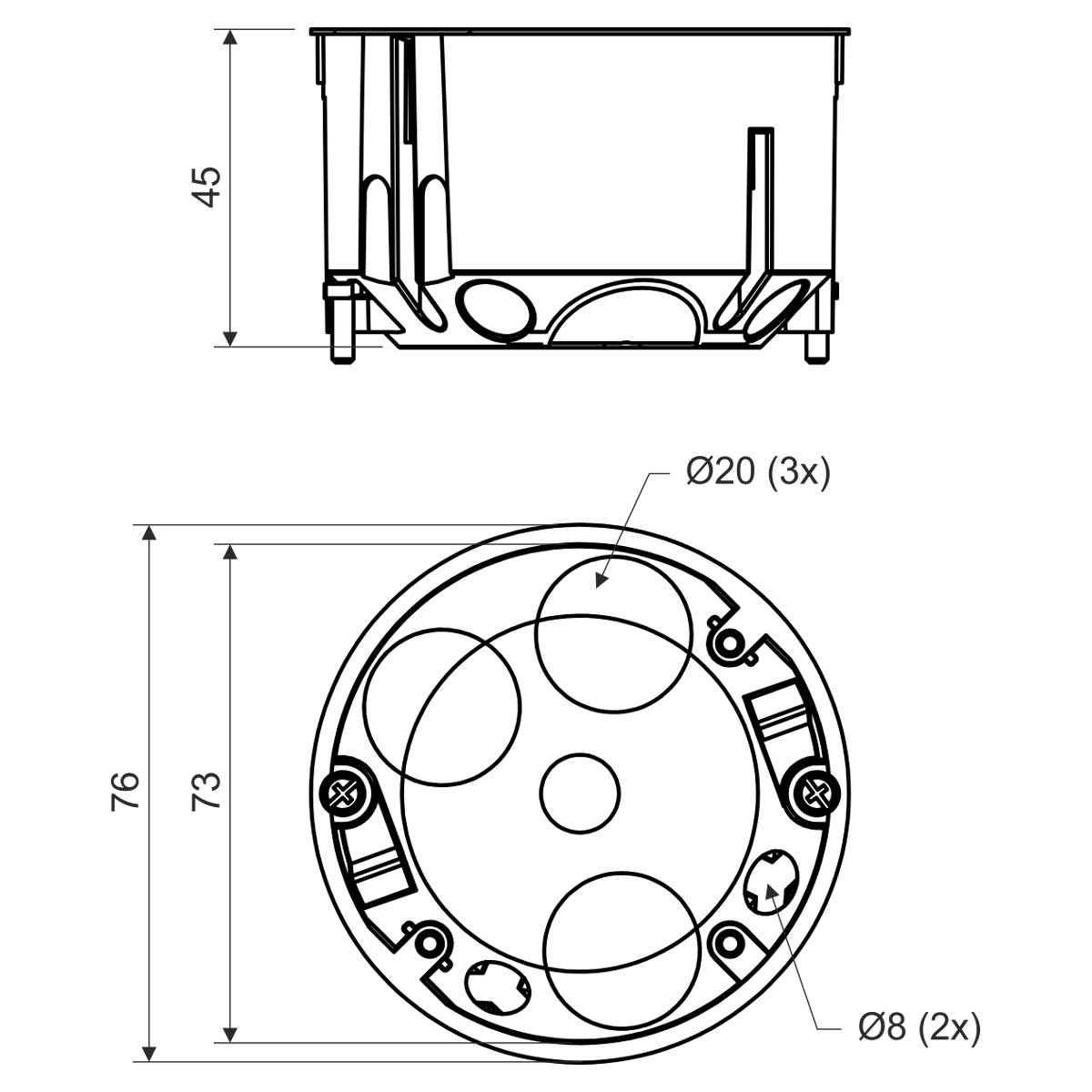

Ilustrativni prikaz
KU68LD1HF_EN
| EAN kod | 8595568910585 |
| Tarifni broj | 39259080 |
| Težina | 0,0277 kg/kom |
| Materijal | PP |
| Bezhalogeni materijal | yes |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Nazivni napon | <= 400 V |
| Nazivna struja | <= 16 A |
| Otpornost na temperaturu | -5 - +60 °C |
| Probna petlja | 850 °C |
| Prosječni | 73 mm |
| Dubina | 45 mm |
| Promjer rupa (bušenih) | 73 mm |
| Preporuka proizvođača For all range of products in hollow walls, we recommend using the milling sets supplied by us. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Omogućava montažu dvostruke utičnice | yes |
| Standardi | ČSN EN 60 670-1 |
| Opis paketa boxes fitted with screws for mounting box in plasterboard, device screws are fitted in boxes | |
For premises with increased need for protection of persons and property. Inlet openings made of flexible material. Cable installation is performed by perforating the membrane with a sharp tool (e.g. screwdriver) and then inserting the cable, or by extracting the pre-pressed membrane inlet. Air proofed even with inserted cable or pipe. Mounting screws are fitted with a triple thread for quick installation. Prevents airflow through the installation. When mounting, it is not necessary to countersink the plasterboard edge.
