EAN kod8595057690721
Tarifni broj39259080
Težina1.52 kg/pcs
Bojadark grey RAL 7012
MaterijalPA
Bezhalogeni materijalyes
Materijal bez uljayes
Samogasivi30 s
Otpornost na temperaturu-5 - 105 °C
Probna petlja850 °C

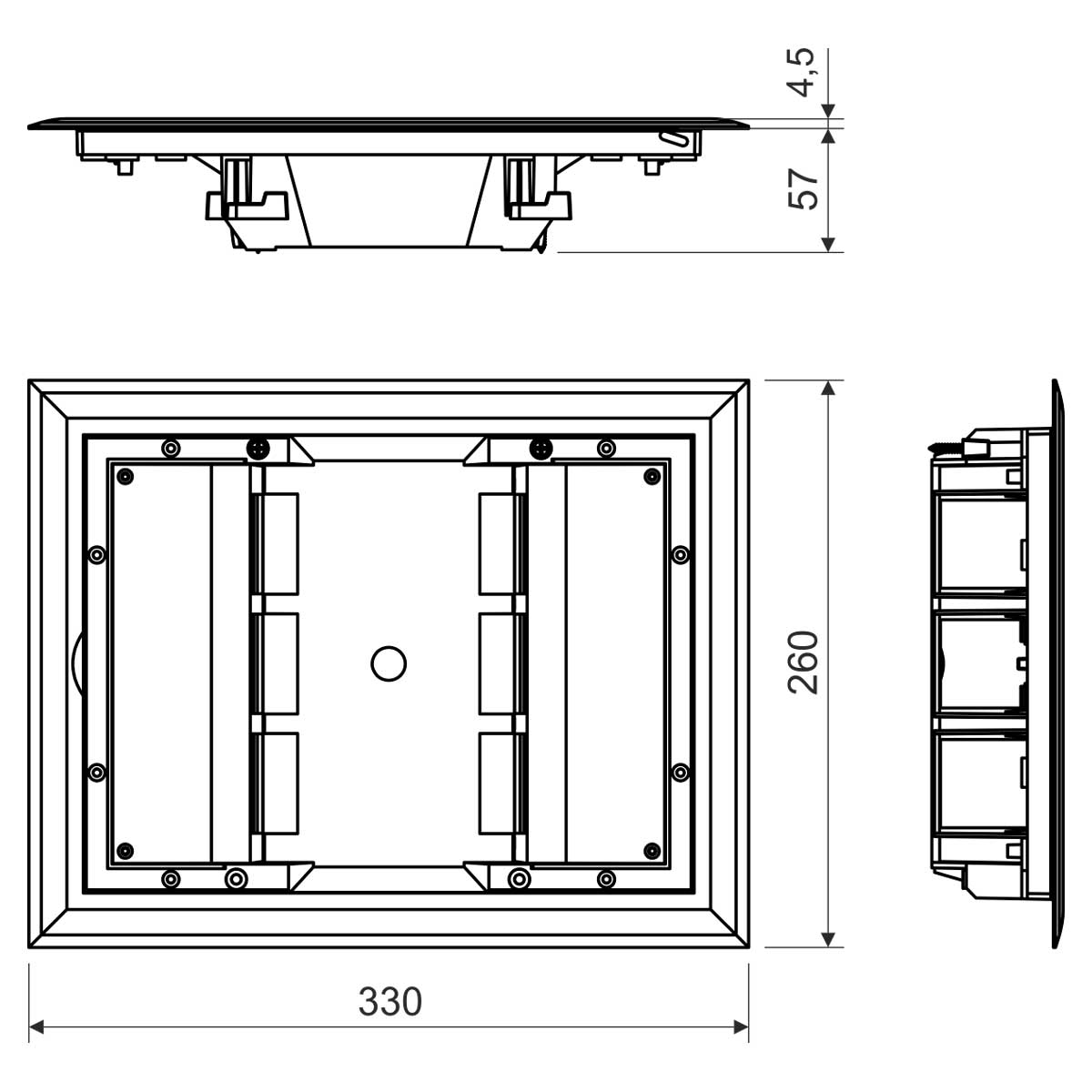

Širina330 mm
Visina260 mm
Dubina57 mm
Klasa reakcije na požarA1 - F
Vrste zaštiteIP 30

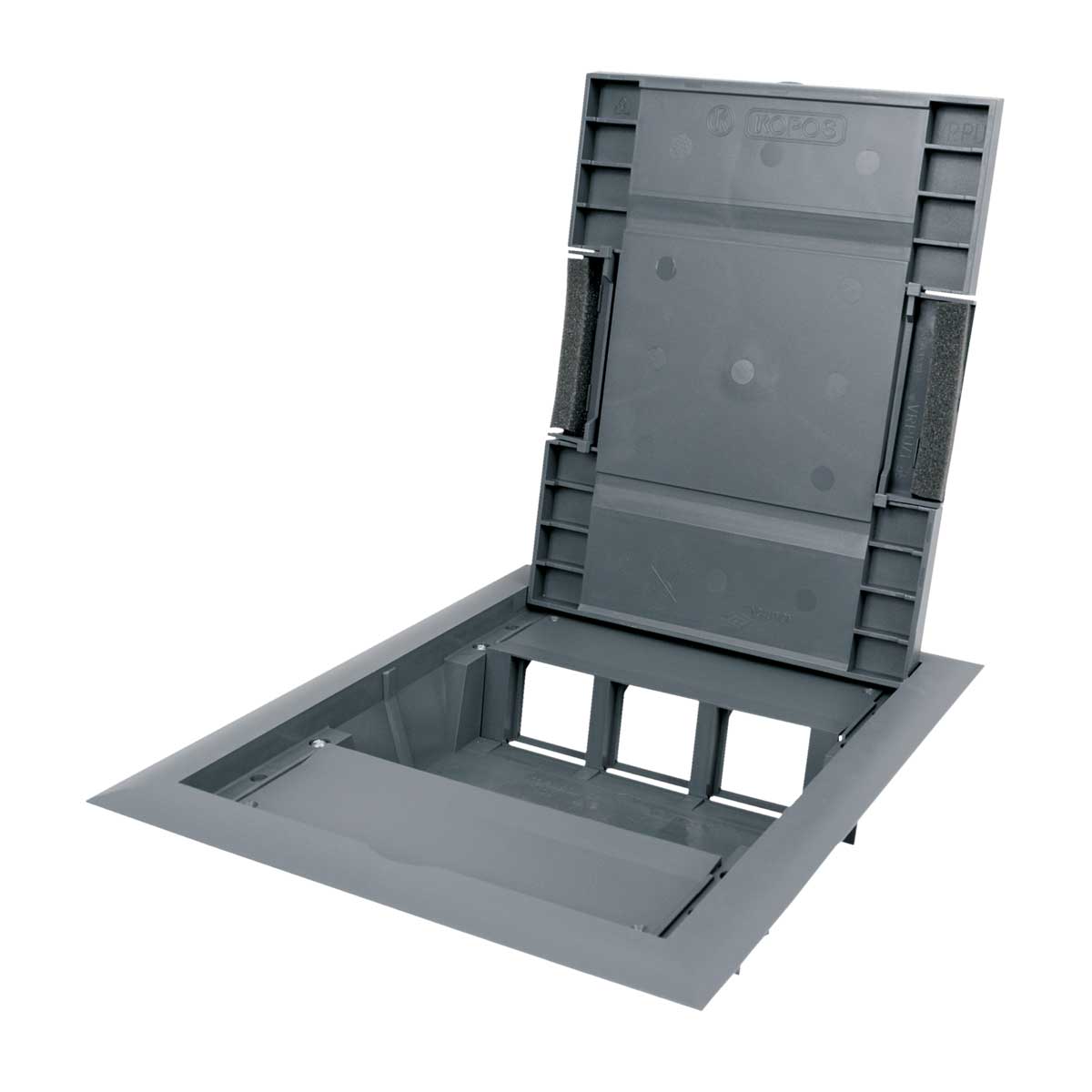

Designed for installation into the universal floor box KUP 57 or KUP 80. It is possible to assemble QUADRO modular instruments of 45 x 45 mm (max 6 pcs - pg. 2-48), instruments with compatible construction, e.g. those made by ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira. Reinforcement of the lid by sheet metal ensures its high mechanical strength while maintaining the possibility to insert the final floor covering. The lid has 2 tilt flaps enabling the outlet of the cables from the box. Included are screws for attaching the frame to the floor box KUP. KOPOBOX® comes in dark grey as a standard. For orders over 500 pieces we can supply different RAL colour (except for actual device carriers). The frame is separately applied for double floors with a thickness of 10-40 mm, the proposition of hole to insert the floor box is 218 x 288 mm.
