Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
| EAN kod | 8595057698512 |
| Tarifni broj | 39269097 |
| Težina | 0,0135 kg/kom |
| Boja | grey |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - +60 °C |
| Probna petlja | 850 °C |
| Prosječni | 9 mm |
| Dužina | 35 mm |
| Upotreba | for boxes KU 68-45 |
| Klasa reakcije na požar podložnog materijala | A1 - F |

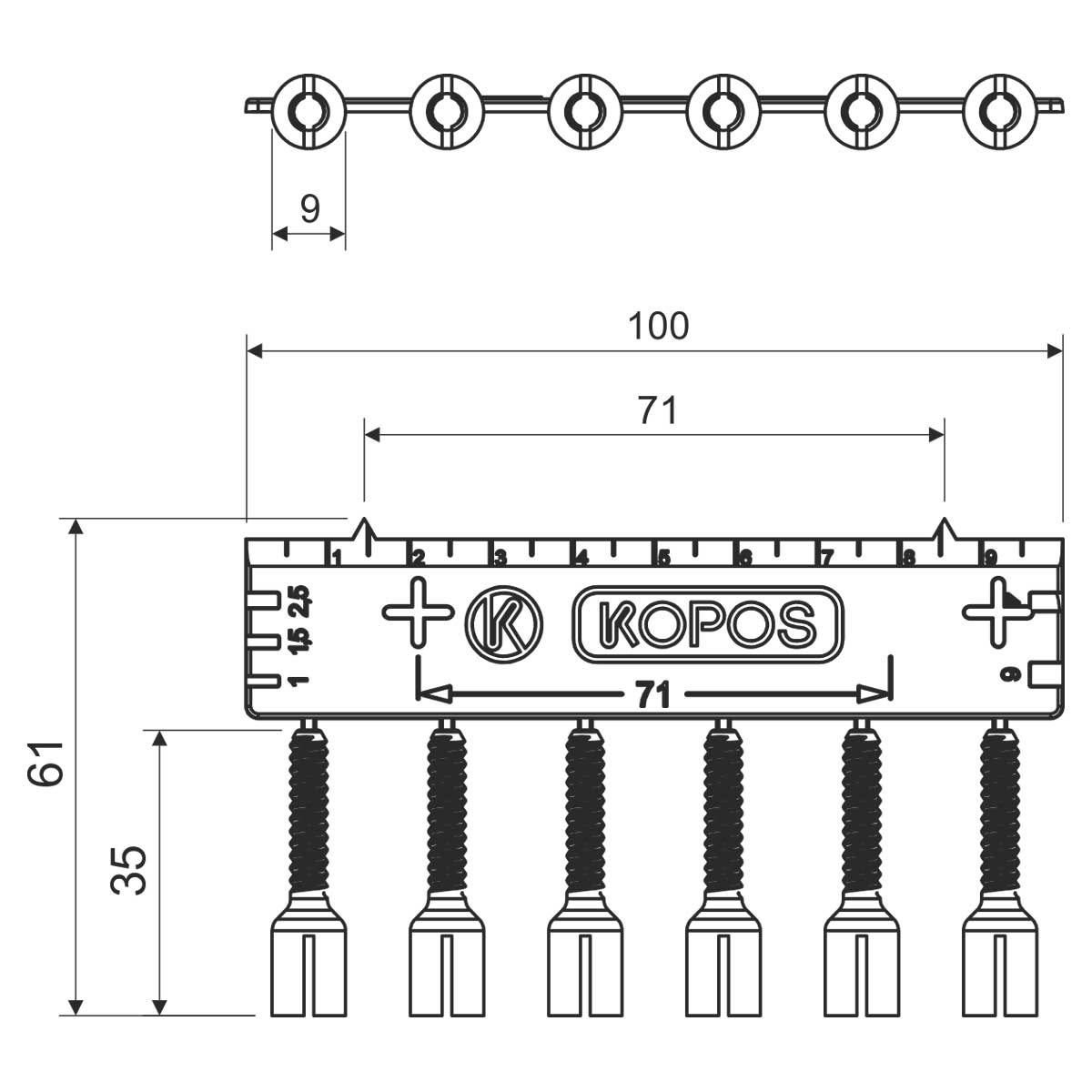

To extend the central pin of cover lids, for boxes that are too recessed, where the cover lid pin is short and does not reach the central thread of the wiring box. The pin can be shortened to the required length. Attached ruler is used to measure the spacing of 71 mm when mounting devices in the combined frame. Notches can be used as a gauge to identify cable sections. 1 piece contains a plate of 6 adjusting pins.
