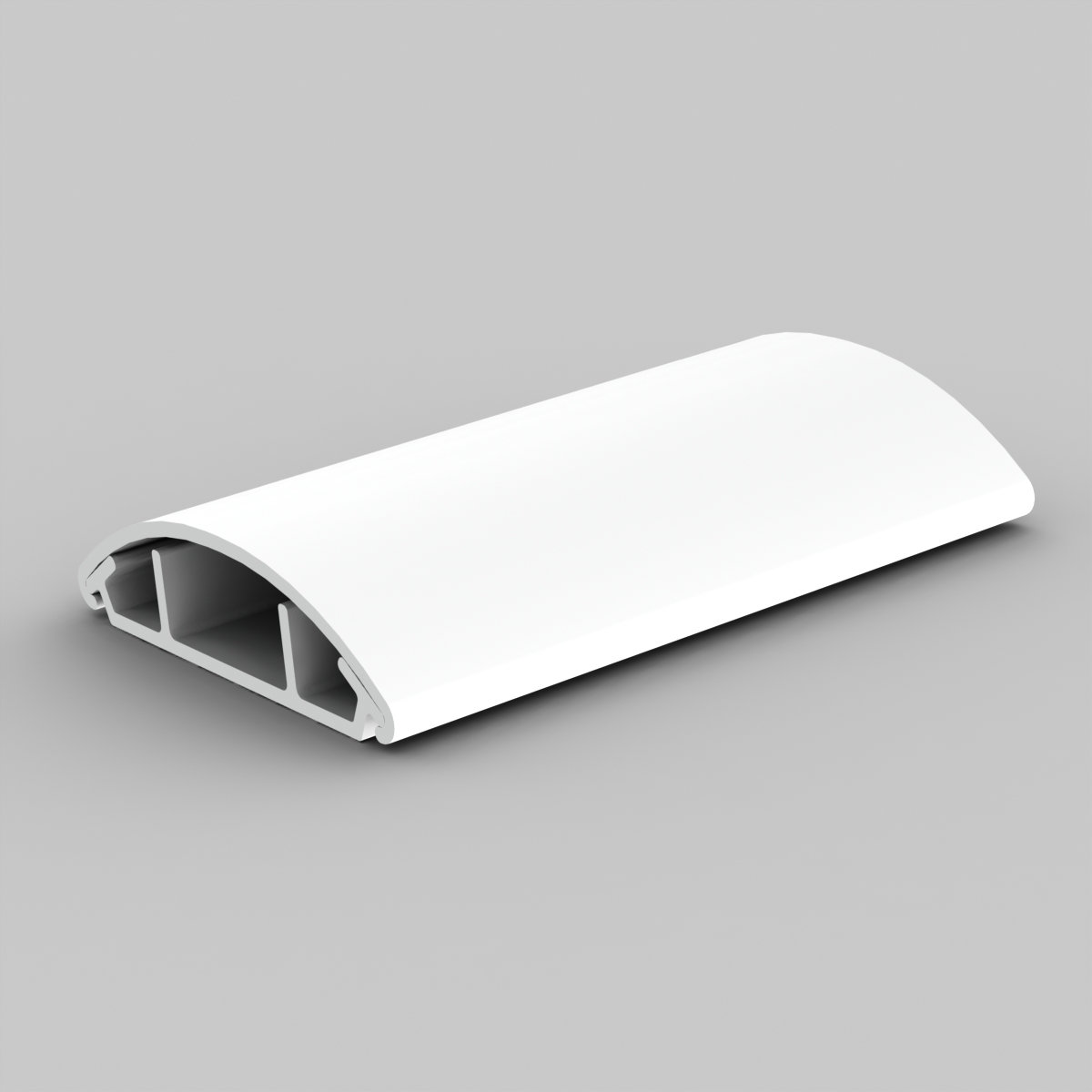

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LO50_EN
| EAN kod | 8595057619944 |
| Tarifni broj | 39259020 |
| Težina | 0,2830 kg/m |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Mehanička zaštita | IK07 |
| Otpornost na udar | 0,5 J |
| Antibakterijske | yes |

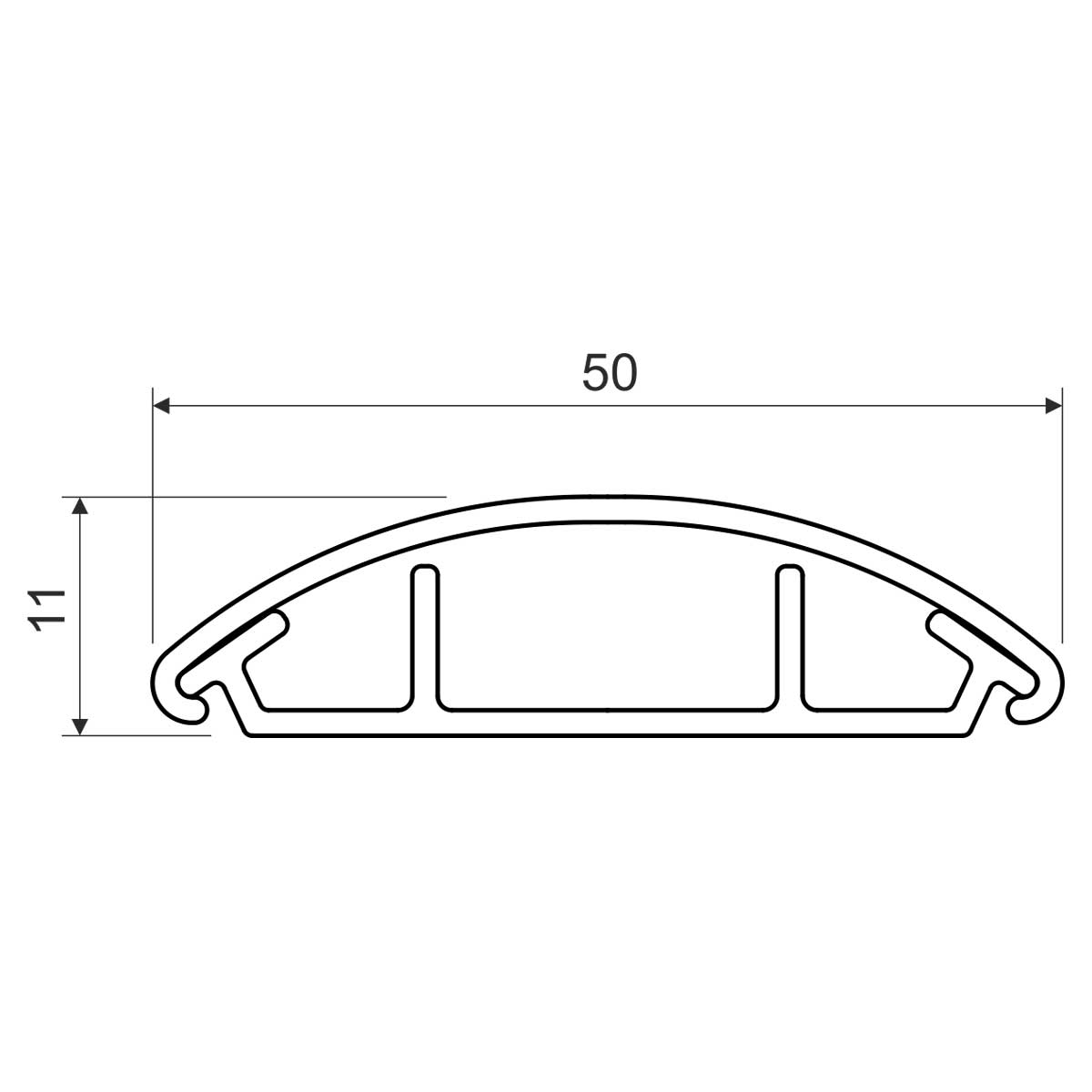

| Širina | 50 mm |
| Visina | 11 mm |
| Dužina | 2 m |
| Unutarnje područje | 60, 180, 60 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 40 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
Designed for mounting on the floor. Designed for load capacity common in apartments and offices.
