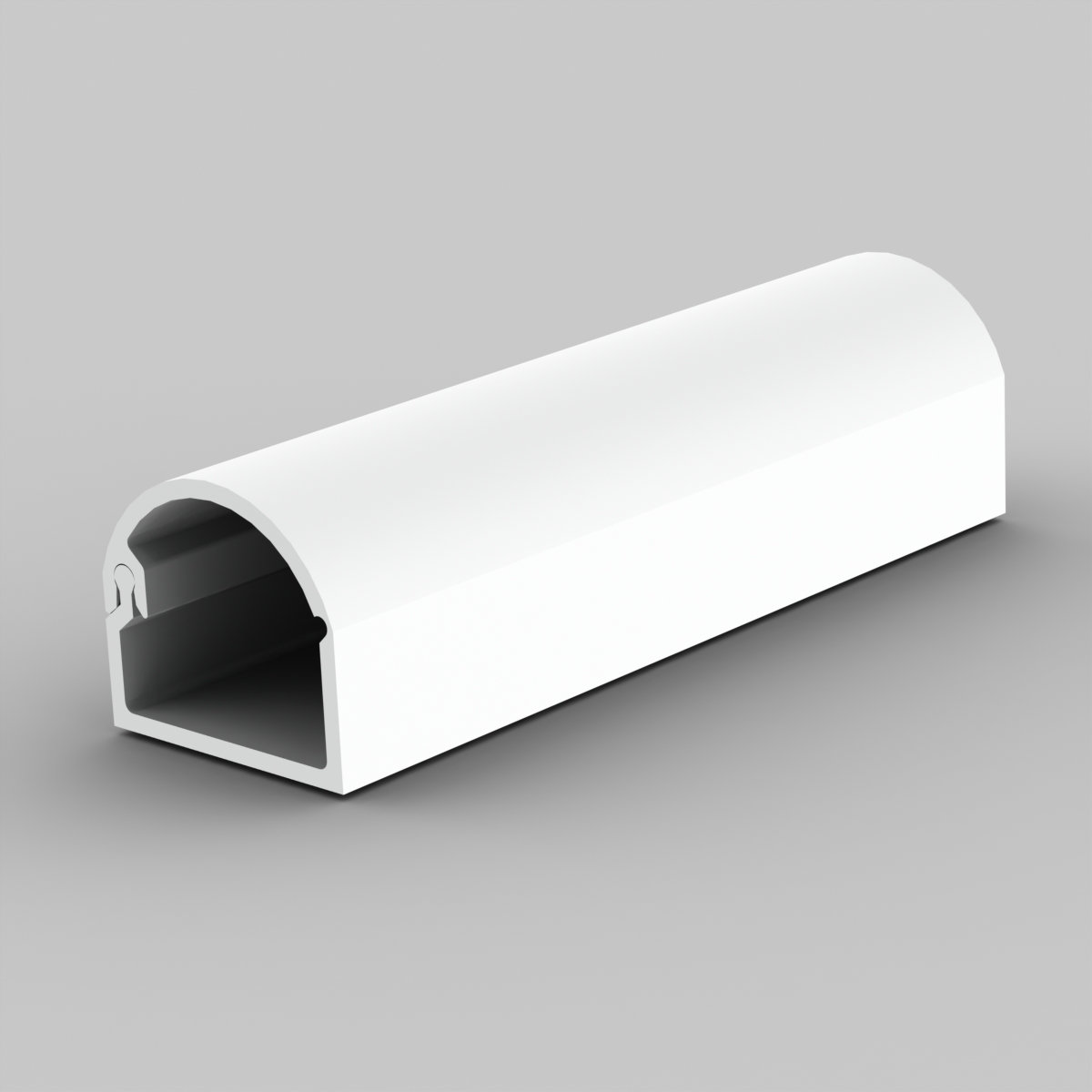

Ilustrativni prikaz
To download 3D models, please login or create an account and request access.
LZK15X12_EN
| EAN kod | 8595057620551 |
| Tarifni broj | 39259020 |
| Težina | 0,08 kg/m |
| Boja | white |
| Materijal | PVC |
| Materijal bez ulja | yes |
| Samogasivi | 30 s |
| Otpornost na temperaturu | -5 - 60 °C |
| Probna petlja | 850 °C |
| Otpornost na udar | 1 J |
| Antibacterial | yes |
| Širina | 15 mm |
| Visina | 13 mm |
| Dužina | 2 m |
| Unutarnje područje | 120 mm2 |
| Tolerancija The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C. | |
| Područje s opasnošću od eksplozije Electro-installation trunking (insertive, rectangular, halogen-free) and parapet canals with accesories can be installed in zones with explosion hazard of flammable gases (zone 2) and with the risk of explosion of flammable dusts (zone 22), installation must comply with EN 60079-14. | |
| Klasa reakcije na požar podložnog materijala | A1 - F |
| Vrste zaštite | IP 30 |
| Standardi | ČSN EN 50 085-1 |
| Opis paketa | package - cardboard |
One side of the rounded lid is a part of the trunking body, the second side of the lid can be simply snapped on, it is fitted with double lock increasing the trunking´s rigidity and ensuring stronger cover fixation. Registered industrial design.
